Content from Why Cloud Storage Integration Matters

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • Why would I want to connect cloud storage to an HPC system?
  • What are the benefits of using rclone?
  • What cloud storage options are available at Pomona College?

Objectives

  • Understand common use cases for cloud storage integration
  • Learn about Box and OneDrive availability at Pomona College
  • Recognize security considerations for cloud storage
Callout

Cloud storage and Pomona’s data classification

Pomona uses a 3-tier data classification (PUBLIC / PROPRIETARY / RESTRICTED). Cloud-storage rules differ by tier:

  • PUBLIC data: may be shared via Pomona Box or OneDrive (pomona-box: and pomona-onedrive: rclone remotes), or via institutionally approved public archives (Zenodo, OSF, GitHub).
  • PROPRIETARY data: institutional storage (Pomona Box / OneDrive / Sagehen HPC) only. No personal cloud accounts.
  • RESTRICTED data (FERPA, HIPAA, ITAR/EAR, CUI): MUST be encrypted with gocryptfs (AES-256-GCM) BEFORE upload. Personal cloud accounts (personal Google Drive, Dropbox, etc.) are PROHIBITED. See Workshop 14 (Data Classification) and Workshop 15 (gocryptfs) for the operational details.

When in doubt, classify as RESTRICTED and consult the Registrar (FERPA), HIPAA Privacy Officer, ORSP (export-controlled), or (technical implementation).

Sagehen HPC storage, covering /rhome, /bigdata and /scratch, connects through the rclone command-line tool to two cloud destinations: Pomona Box, the institutional service, and OneDrive on the Pomona Microsoft 365 tenant. A note explains that rclone runs on the cluster so transfers do not pass through your laptop, and that long transfers belong in a job rather than on the head node.
rclone runs on the cluster, so your laptop is not in the path.

The Challenge: Data Movement in Research

Working on a high-performance computing (HPC) system like Sagehen at Pomona College is powerful, but it introduces a common challenge: how do you move large amounts of data between the HPC cluster and your personal or collaborative storage?

Consider these scenarios:

Scenario 1: Sharing Results with Collaborators

You’ve just completed a 3-day simulation on Sagehen that produced 50 GB of results. Your collaborators at another institution need access to these files. How do you get them there efficiently?

Scenario 2: Backing Up Large Datasets

You’re processing a 100 GB dataset on the HPC system. You want to maintain a backup copy in institutional cloud storage (Box) in case anything goes wrong.

Scenario 3: Off-Campus Access

You generated results on Sagehen but need to access and analyze them from home over a laptop. The HPC cluster requires an SSH connection, but your cloud storage is accessible from anywhere.

Scenario 4: Multi-Tool Workflows

Your workflow requires data in both the HPC system and cloud-based tools like collaborative notebooks or data analysis platforms.

What is rclone?

rclone is a command-line tool that acts as a Swiss Army knife for cloud storage. It allows you to:

  • Sync files between your HPC system and cloud storage automatically

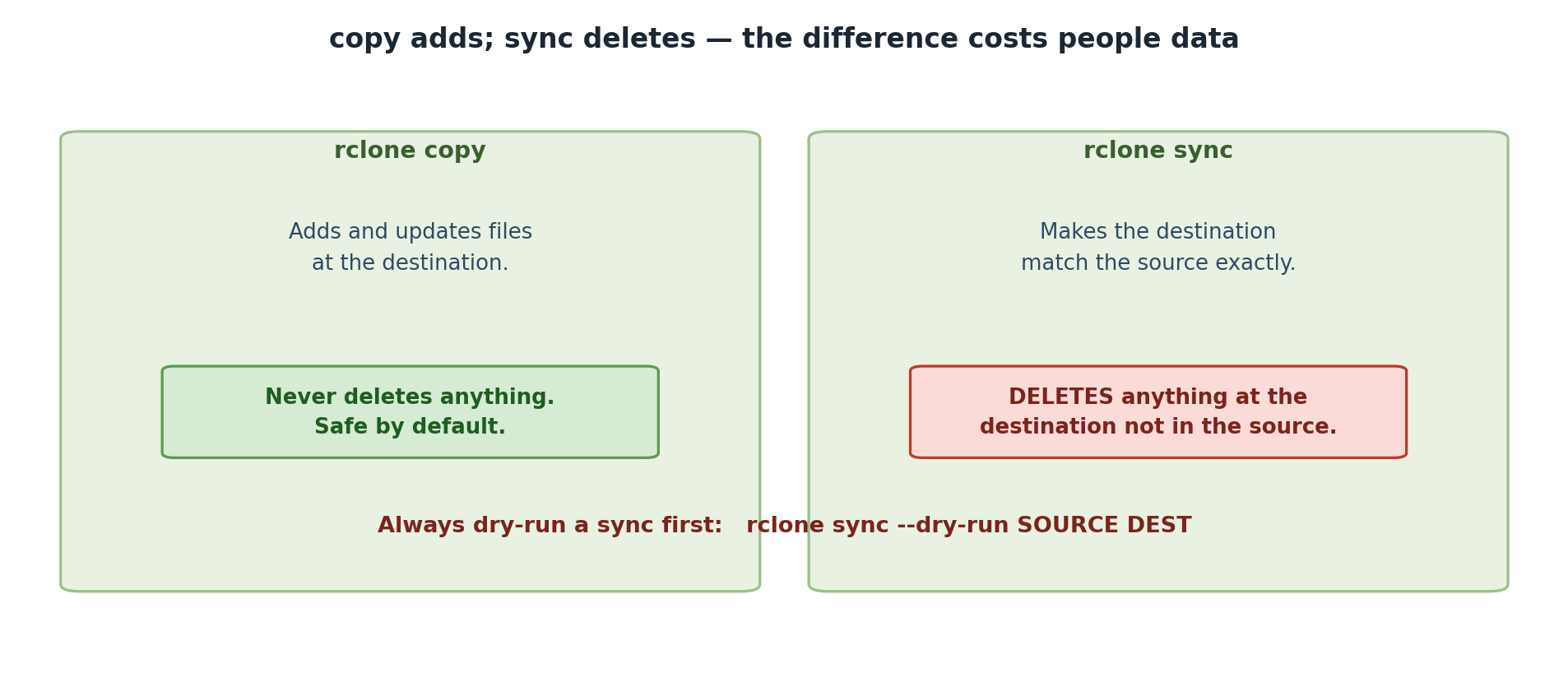

  • Copy files without syncing (useful for backups)
  • List, delete, and organize files in cloud storage remotely
  • Monitor and verify file transfers
  • Automate transfers within job scripts or scheduled tasks
  • Work offline then sync when connected

rclone is like rsync or scp (tools you may already know for HPC file transfer), but designed specifically for cloud storage providers.

Cloud Storage at Pomona College

Callout

Storage Options Available to You at Pomona

At Pomona College, you have access to two primary cloud storage services:

Box (Institutional)

  • Type: Institutional cloud storage
  • Who uses it: All Pomona faculty, staff, and students
  • Size: Generous institutional quota
  • Best for: Collaboration with colleagues, sharing results, backing up work
  • Access: Single Sign-On (SSO) with your Pomona NetID
  • Cost: Free at Pomona

Box is ideal when: - You need to share files with other Pomona users - You want institutional-grade security and compliance - Your data falls under Pomona’s data governance policies

OneDrive (Personal)

  • Type: Personal cloud storage (via Microsoft 365)
  • Who uses it: Students with Office 365 access
  • Options: OneDrive Personal (smaller quota) or OneDrive for Business (larger)
  • Best for: Personal backups, temporary storage, syncing to personal devices
  • Access: Your Pomona Microsoft account
  • Cost: Free at Pomona

OneDrive is ideal when: - You want personal control over your storage - You need seamless integration with Microsoft Office tools - You prefer smaller, personal-scale workflows

Why Use rclone with HPC?

Callout

Traditional vs Modern Data Transfer Approaches

Problem 1: SSH Transfers are Slow for Large Datasets

Traditional: scp -r results/ your_laptop:~/Downloads/
# This is blocking, slow, and fails on network interruptions

Problem 2: Manual Syncing is Error-Prone

Manually copying files each time you want to backup or share is: - Tedious - Prone to forgetting files - Difficult to track which version is current

Problem 3: Cloud Storage GUIs Don’t Scale

Uploading a 50 GB folder through the Box web interface: - Times out - Is painfully slow - Doesn’t integrate with job scripts

Benefits of rclone

  • Fast: Optimized for large file transfers
  • Reliable: Handles network interruptions gracefully
  • Scriptable: Integrates with job scripts and automation
  • Flexible: Works with many cloud providers (Box, OneDrive, Google Drive, etc.)
  • Efficient: Only transfers changed files when syncing
  • Verifiable: Checksums and integrity checking
  • Smart: Dry-run mode to preview changes before committing

Security Considerations

Callout

Protecting Your Data: Security Best Practices

Before integrating cloud storage with HPC, keep these security practices in mind:

Sensitive Data

  • Do not store: Passwords, API keys, or authentication tokens directly in scripts
  • Do use: rclone’s encrypted configuration and --password-command for sensitive parameters
  • Consider: Whether the data classification allows cloud storage (check with IT)

Authentication

  • OAuth tokens expire: Every few months, you’ll need to refresh your connection
  • Two-factor authentication: If enabled on your Pomona account, you’ll authenticate once during setup
  • No passwords in config: rclone stores only OAuth tokens, not your actual Pomona password

Network Security

  • SSH tunneling: You’ll establish a secure connection to authorize rclone
  • HTTPS encryption: All transfers to/from Box and OneDrive are encrypted
  • Institutional oversight: Box at Pomona is managed by IT and audited for compliance

Data Governance

  • Know your data policy: Some research data must stay on institutional systems
  • Check compliance requirements: FERPA, HIPAA, or grant-specific restrictions may apply
  • Contact IT if unsure: can clarify what’s allowed

What rclone is NOT

  • Not a backup tool (though you can use it for backups)
  • Not a version control system (use Git for code)
  • Not a file sync service like Dropbox (no automatic folder syncing)
  • Not a replacement for institutional backup systems
Challenge

Challenge 1.1: Identify Your Use Case

Think about your research or coursework. Write down: 1. What data do you generate or work with on Sagehen? 2. How much storage do you typically need? 3. Who needs access? (Just you? Collaborators? Instructors?) 4. When do you need backups? (Continuously? After milestones?) 5. Which cloud service would be better for you: Box (sharing with Pomona folks) or OneDrive (personal control)?

Example discussion points:

  1. Data: “I generate ~20 GB of simulation output per run, plus analysis scripts and figures.”
  2. Storage: “I typically need 50-100 GB for active projects, plus archival storage for completed work.”
  3. Access: “My advisor and two lab mates need access to results; I also share final figures with collaborators at other institutions.”
  4. Backups: “After each major simulation run (weekly) and before any conference deadline.”
  5. Cloud service: Box is better if you share with Pomona colleagues; OneDrive is better for personal backups and Office integration. Many researchers use both.
Challenge

Challenge 1.2: Security Check

For the research data you identified above, consider: 1. Is this data sensitive? (Personal data? Medical data? Proprietary?) 2. What are the restrictions? (Check your project requirements or advisor) 3. Is cloud storage appropriate? (Ask yourself or your supervisor) 4. Who should have access? (Just you? Your research group? The world?)

If you’re unsure about data policies, it’s always okay to ask your advisor or email .

Example responses:

  1. Sensitive? Most coursework data is not sensitive, but research involving human subjects, medical records, or proprietary datasets may be. When in doubt, assume it is sensitive.
  2. Restrictions: Check your grant agreement, IRB protocol, or course syllabus. FERPA-protected student data and HIPAA-covered health data have strict rules.
  3. Cloud appropriate? Generally yes for de-identified research data and coursework. Not appropriate for data under export control or certain compliance frameworks without IT approval.
  4. Access: Follow the principle of least privilege – share only with people who need the data, and use Box’s built-in sharing controls to limit access.

When unsure, contact before uploading data to cloud storage.

Key Points
  • Cloud storage integration solves real HPC data transfer challenges (sharing, backup, off-campus access)
  • rclone is a powerful command-line tool for syncing files between HPC and cloud storage
  • Pomona provides two cloud options: Box (institutional) and OneDrive (personal)
  • OAuth authentication provides secure token-based access without storing passwords
  • Always consider data governance and security policies before moving data to cloud storage

Content from Installing and Configuring rclone

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I load rclone on Sagehen HPC?
  • What is SSH port forwarding and why do I need it?
  • How does the rclone configuration process begin?

Objectives

  • Connect to Sagehen with SSH port forwarding for OAuth
  • Load the rclone module on the HPC cluster
  • Understand the rclone configuration workflow

Prerequisites

Before starting, make sure you have:

  • SSH access to Sagehen HPC system
  • A Pomona College NetID and either a Box or OneDrive account
  • A terminal application (Terminal on Mac/Linux, PowerShell or Git Bash on Windows)
  • A web browser for OAuth authentication
  • Approximately 15 minutes
Five steps to authorise rclone. Run rclone config on Sagehen HPC, choose the remote type of box or onedrive, let rclone print a URL, open that URL in your own browser and sign in with Pomona single sign-on, then paste the token back into the terminal.
The browser step happens on your machine, because the cluster has none.

Step 1: Connect to Sagehen HPC with Port Forwarding

Callout

SSH Port Forwarding for Secure OAuth Authentication

The first step is to establish an SSH connection to Sagehen with port forwarding enabled. This creates a secure tunnel that rclone will use for OAuth authentication.

Why Port Forwarding?

When you run rclone config, it starts a small web server locally on port 53682 to receive the OAuth token from Box or OneDrive. Your laptop and Sagehen need to communicate on this port securely, which is what SSH port forwarding does.

For Mac/Linux Users:

Open your terminal and run:

BASH

ssh <myusername>@sagehen.hpc.pomona.edu -L 53682:localhost:53682

Replace username with your Pomona NetID (e.g., ).

When prompted, enter your Pomona password.

Expected output:

Last login: Wed Mar 05 2026 13:45:02 -0700 from 192.168.1.100
[username@login-1 ~]$

For Windows Users (PowerShell):

POWERSHELL

ssh <myusername>@sagehen.hpc.pomona.edu -L 53682:localhost:53682

If SSH is not available, use PuTTY or Windows Subsystem for Linux (WSL).

VS Code Remote SSH Users:

If you typically use VS Code’s Remote-SSH extension, you can still use SSH with port forwarding by:

  1. Option A: Use a separate terminal window (recommended for rclone setup)
  2. Option B: Modify your .ssh/config to include the port forwarding:
Host sagehen
    HostName sagehen.hpc.pomona.edu
    User username
    LocalForward 53682 localhost:53682

Then connect with ssh sagehen.

You are now connected to Sagehen. The terminal prompt shows you’re on the HPC system.

Step 2: Load the rclone Module

Once connected to Sagehen, load the rclone module:

BASH

module load rclone

Expected output:

Loading rclone/1.65.2 ...

Verify rclone is available:

BASH

rclone version

Expected output:

rclone v1.65.2
- os/version: linux (Linux 6.8.0-94-generic #94-Ubuntu 22.04.1-generic)
- go version: go1.20.3

The version number may differ depending on the module version, but you should see rclone is ready to use.

Step 3: Start rclone Configuration

Now you’ll begin configuring rclone:

BASH

rclone config

Expected output (first run, no config yet — a short three-option menu):

NOTICE: Config file "/rhome/<myusername>/.config/rclone/rclone.conf" not found - using defaults
No remotes found, make a new one?
n) New remote
s) Set configuration password
q) Quit config
n/s/q>

Once you have remotes configured, the same command shows the longer e/n/d/r/c/s/u/m/v/b/q menu with your remotes listed at the top.

Terminal on Sagehen showing module load rclone and rclone version reporting rclone v1.62.2 on Rocky Linux 8.10. Below, rclone config prints a notice that no config file exists yet and asks No remotes found, make a new one, with options n for new remote, s for set configuration password, and q to quit.
The real first run on Sagehen HPC: module load rclone && rclone version (v1.62.2 on Rocky 8.10), then rclone config with the fresh-config menu.

Type n to create a new remote. In the next episodes, you’ll complete the configuration for Box or OneDrive.

Saving Your Configuration

Callout

Protecting Your rclone Configuration

rclone stores your configuration securely on Sagehen:

Location: ~/.config/rclone/rclone.conf

This file contains your OAuth token and configuration. It’s encrypted and should not be shared. Never commit this file to Git or upload it publicly.

Challenge

Challenge 2.1: Connect and Load rclone

  1. Open a terminal and connect to Sagehen with port forwarding:

    BASH

    ssh <myusername>@sagehen.hpc.pomona.edu -L 53682:localhost:53682

  2. Load the rclone module and verify the version:

    BASH

    module load rclone
rclone version

Record: What version of rclone is installed?

After connecting and loading the module, rclone version should display something like:

rclone v1.65.2
- os/version: linux (Linux 6.8.0-94-generic #94-Ubuntu 22.04.1-generic)
- go version: go1.20.3

The exact version number may vary. Seeing any version output (no errors) confirms rclone is loaded and ready. If you get rclone: command not found, you forgot to run module load rclone.

Key Points
  • SSH port forwarding (-L 53682:localhost:53682) enables secure OAuth authentication between your browser and Sagehen
  • The rclone module must be loaded with module load rclone before use on Sagehen
  • rclone configuration is stored securely in ~/.config/rclone/rclone.conf and should never be shared
  • The rclone config command starts an interactive setup wizard for adding cloud storage remotes

Content from Setting Up Pomona Box

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I configure rclone for Pomona’s Box storage?
  • How does OAuth authentication work with Box?
  • How do I verify the Box connection?

Objectives

  • Configure a new rclone remote for Box using OAuth
  • Complete the Box OAuth authorization flow
  • Verify the connection with rclone about and rclone lsd

Configuring rclone for Box

This episode assumes you are connected to Sagehen HPC with port forwarding and have rclone loaded (see Episode 2). Start the configuration:

BASH

rclone config

Type n to create a new remote.

Name Your Remote

rclone will ask for a name. This is what you’ll use in commands to reference your Box storage:

name> pomona-box

You can use any name you like (e.g., my-box, box-backup). We’ll use pomona-box in examples.

Select the Storage Type

rclone will list available storage types. Type box or the corresponding number:

Storage> box

Configure Box Application

rclone asks about Box application credentials. Press Enter for both prompts to use rclone’s built-in credentials:

client_id> [press Enter]
client_secret> [press Enter]

Select User Type

Choose individual user access (the default):

app_type> [press Enter]

Enable Auto-Configuration

Type y to allow rclone to open your browser for OAuth:

y/n> y

OAuth Authentication (Browser)

Callout

Understanding the OAuth Authorization Flow

rclone will automatically open your default web browser and direct you to Box’s authorization page. If the browser doesn’t open automatically, you’ll see a URL like:

If your browser doesn't open automatically, go to the following link: http://127.0.0.1:53682/auth?state=...

Copy and paste this URL into your web browser.

Box OAuth Flow:

  1. You’ll see: A Box login page
  2. Sign in with: Your Pomona NetID and password
  3. SSO redirect: Box will redirect you to Pomona’s Single Sign-On (SSO) page
  4. Authorization: You’ll see a screen asking “Rclone wants to access your Box account”
  5. Grant access: Click the “Grant” or “Authorize” button
  6. Confirmation: You’ll see “The app is now authorized. You can close this window.”

Important: If Two-Factor Authentication is Enabled

If your Pomona account has 2FA enabled (recommended), you’ll also be prompted to enter a code from your authenticator app or receive one via email during the OAuth flow.

Back on Terminal

Once you’ve granted access in the browser, rclone will automatically receive the token:

2026/03/05 14:22:05 NOTICE: Box (pomona-box) Waiting for local client...
2026/03/05 14:22:15 NOTICE: Box authorization successful

Skip Advanced Configuration

Type n when asked about advanced config:

y/n> n

Answer the Web-Browser Question

rclone then asks one more question the older docs didn’t show:

Use web browser to automatically authenticate rclone with remote?
 * Say Y if the machine running rclone has a web browser you can use
 * Say N if running rclone on a (remote) machine without web browser access
If not sure try Y. If Y failed, try N.

y) Yes (default)
n) No
y/n>

Answer n on Sagehen — the cluster has no web browser. rclone will then show instructions to run rclone authorize "box" on your own laptop (which does have a browser) and paste the resulting JSON blob back into the config_token> prompt on Sagehen. Paste the entire JSON output, braces included — a bare token string will fail with a decode error.

Terminal showing the rclone Box setup wizard. The Edit advanced config question has been answered n. rclone then asks whether to use a web browser to automatically authenticate, explaining to say N if rclone runs on a remote machine without browser access. The y/n prompt is waiting for input.
The two prompts in sequence: decline advanced config, then answer n to the browser question because Sagehen HPC is a remote machine without one.

Confirm and Exit

Type y to confirm your configuration, then q to quit:

y/e/d> y
e/n/d/r/c/s/u/m/v/b/q> q

Verify the Connection

Test that rclone can access your Box account:

BASH

rclone about pomona-box:

Expected output:

Total:   1.0T
Used:    25.3G
Free:    974.7G
Trashed: 0B
Other:   0B

Also try listing your Box home directory:

BASH

rclone lsd pomona-box:/

Expected output:

          -1 2026-02-15 10:30:00        -1 My Research
          -1 2026-01-20 14:45:00        -1 Shared

If you see your Box files listed, setup is successful!

For VS Code Remote-SSH Users (Cleanup)

If you configured port forwarding in your .ssh/config for VS Code, it may show port 53682 in its PORTS tab. After rclone setup is complete, you can delete this port from the PORTS tab to reduce clutter. Your rclone connection will still work.

Challenge

Challenge 3.1: Configure Box Remote

Follow the steps above to set up your own Box remote. Name it pomona-box (or your preferred name).

At the end, run:

BASH

rclone about pomona-box:

Record the output: How much total storage do you have? How much is used?

You should see output similar to:

Total:   1.0T
Used:    25.3G
Free:    974.7G
Trashed: 0B
Other:   0B

The exact numbers depend on your Box usage. Seeing storage info (no errors) confirms your pomona-box remote is configured correctly. If you see ERROR: access_token_expired, revisit the OAuth steps above.

Challenge

Challenge 3.2: List Your Box Contents and Create a Test Folder

List the top-level contents of your Box account:

BASH

rclone lsd pomona-box:/

Then create a test folder for upcoming exercises:

BASH

rclone mkdir pomona-box:/rclone-test
rclone lsd pomona-box:/

You should see your new rclone-test folder in the list.

After running rclone mkdir pomona-box:/rclone-test, verify with:

BASH

rclone lsd pomona-box:/

Expected output includes:

          -1 2026-03-05 15:00:00        -1 rclone-test

The mkdir command produces no output on success; if you see no errors, the folder was created.

Key Points
  • Box uses Pomona’s Single Sign-On (SSO) for authentication, which may include two-factor authentication
  • rclone configuration stores OAuth tokens securely in ~/.config/rclone/rclone.conf and does not store your password
  • Test your configuration with rclone about and rclone lsd commands to verify the connection works
  • The rclone remote name (e.g., pomona-box) is your local reference for this Box account and can be customized

Content from Setting Up OneDrive

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I set up rclone to use OneDrive with my Pomona account?
  • What’s the difference between OneDrive Personal and OneDrive for Business?
  • How do I select the correct drive when multiple options are available?

Objectives

  • Configure rclone for OneDrive using OAuth
  • Understand OneDrive Personal vs OneDrive for Business options
  • Verify connectivity and list your drive contents

When to Choose OneDrive

Callout
A Microsoft consent page on the Pomona College tenant. It reads Need admin approval, rclone, and explains that rclone needs permission to access resources in your organization that only an admin can grant, with links to ask an admin for consent or return to the application without granting consent.
What the OneDrive authorisation currently returns on the Pomona tenant.

Deciding Between Box and OneDrive

Use OneDrive with rclone if you:

  • Want personal control over cloud storage
  • Prefer seamless Office 365 integration
  • Have smaller-scale data syncing needs
  • Want storage that’s accessible from multiple devices
  • Don’t need to share with other Pomona users (use Box for that)
Aspect Box OneDrive
Intended use Institutional/Shared Personal/Individual
Best for Collaboration at Pomona Personal backups
Sharing Easy with Pomona users Better with personal contacts
Data governance Pomona manages/audits You manage
Setup complexity Straightforward Slightly more options

This episode assumes you already have an SSH session open with port forwarding and rclone loaded. If not, see Episode 2.

Configure OneDrive

Start a new rclone configuration:

BASH

rclone config

Type n to create a new remote, then name it:

name> pomona-onedrive

Select OneDrive Storage Type

Find and select Microsoft OneDrive:

Storage> onedrive

Select Microsoft Cloud

Choose the global Microsoft Cloud (option 1):

cloud_type> 1

OAuth Configuration

Type y to use auto-configuration:

y/n> y

Microsoft OAuth Flow

rclone will open your browser to Microsoft’s login page:

  1. Sign in page: Enter your Pomona College email address
  2. Password page: Enter your Pomona password
  3. Two-Factor Authentication: If enabled, authenticate with your 2FA method
  4. Consent page: You’ll see “Rclone wants to access your resources”
  5. Grant access: Click “Accept” or “Yes”
  6. Confirmation: You’ll see “The app is now authorized. You can close this window.”

Back on terminal, you should see:

2026/03/05 14:35:22 NOTICE: Microsoft OneDrive authorization successful

Choose Your OneDrive Type

Callout

OneDrive Options: Personal vs Business

rclone will ask which OneDrive to use:

 0 / OneDrive Personal
   \ "onedrive"
 1 / OneDrive for Business
   \ "business"
 2 / Document Library (from SharePoint)
   \ "documentLibrary"

onedrive_type>
  • Type 0 (OneDrive Personal): Personal OneDrive (typically smaller quota)
  • Type 1 (OneDrive for Business): Business account with larger quota
  • Type 2 (Document Library): SharePoint site documents

For most Pomona students, choose 0 (OneDrive Personal).

Select Your Drive and Confirm

If you have multiple drives, select the appropriate number (usually 0). Then skip advanced configuration (n), confirm with y, and quit with q.

Verify the Connection

Test that rclone can access your OneDrive:

BASH

rclone about pomona-onedrive:

Expected output:

Total:   1.0T
Used:    8.4G
Free:    991.6G
Trashed: 0B
Other:   0B

List your OneDrive root directory:

BASH

rclone lsd pomona-onedrive:/

Now You Have Two Remotes

If you set up both Box and OneDrive, verify both remotes are available:

BASH

rclone config show

You now have:

  • pomona-box: – Your institutional Box storage
  • pomona-onedrive: – Your Pomona institutional OneDrive for Business storage (M365)

You can use rclone commands with either remote, and even transfer files between them!

OneDrive Storage Paths

When using OneDrive with rclone, remember these path conventions:

BASH

# Root of your OneDrive
rclone ls pomona-onedrive:/

# A specific folder
rclone ls pomona-onedrive:/Documents

# A nested folder
rclone ls pomona-onedrive:/Documents/Research
Challenge

Challenge 4.1: Configure OneDrive Remote

Follow the steps above to set up your OneDrive remote. Name it pomona-onedrive.

At the end, run:

BASH

rclone about pomona-onedrive:

Record the output: How much storage do you have on OneDrive?

You should see output similar to:

Total:   1.0T
Used:    8.4G
Free:    991.6G
Trashed: 0B
Other:   0B

Seeing storage information (no errors) confirms your pomona-onedrive remote is configured correctly.

Challenge

Challenge 4.2: Compare Your Remotes

List the contents of both your Box and OneDrive:

BASH

echo "=== Box Contents ==="
rclone lsd pomona-box:/

echo "=== OneDrive Contents ==="
rclone lsd pomona-onedrive:/

Compare: Which remote has more folders? Which do you think you’ll use more frequently?

OneDrive typically has more default folders (Documents, Downloads, Pictures). Box may have fewer folders if it is new. Use Box for institutional collaboration and OneDrive for personal storage.

Key Points
  • Pomona’s institutional OneDrive for Business is the supported endpoint.
  • The Microsoft OAuth flow requires signing in with your Pomona email and handling two-factor authentication
  • You can configure multiple cloud remotes with rclone (Box and OneDrive) and reference them with their unique names
  • Test your OneDrive configuration with rclone about and rclone lsd commands just like Box

Content from Copying Files

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do I copy files from HPC to cloud storage?
  • What does the remote:path syntax mean?
  • How do I preview changes before copying?

Objectives

  • Understand rclone’s remote:path syntax
  • Copy files between local, Box, and OneDrive with rclone copy
  • Use --dry-run to preview operations before executing
  • Verify transfers with rclone check

Understanding remote:path Syntax

Callout

The Foundation: remote:path Notation

The most important concept in rclone is the remote:path syntax. When you use an rclone command, you reference cloud storage using:

remote_name:path/to/file

remote_name is the name you gave during configuration (pomona-box, pomona-onedrive, etc.) path/to/file is the location within that remote

Examples

BASH

# Box root
pomona-box:/

# A file in Box
pomona-box:/my-results.csv

# A folder in Box
pomona-box:/research/project-2026

# OneDrive
pomona-onedrive:/Documents/thesis.docx

Copying Files: rclone copy

The rclone copy command copies files from a source to a destination, adding new files to the destination without removing existing ones.

Syntax

BASH

rclone copy source destination

Local to Cloud Examples

Copy a file from your HPC home directory to Box:

BASH

rclone copy ~/results.csv pomona-box:/rclone-test/

Copy a local folder to Box:

BASH

rclone copy ~/my-data pomona-box:/rclone-test/

Cloud to Local Examples

Copy files from Box to your HPC home:

BASH

rclone copy pomona-box:/rclone-test/ ~/downloaded-results/

Cloud to Cloud Examples

Copy from Box to OneDrive:

BASH

rclone copy pomona-box:/rclone-test pomona-onedrive:/backup

Key Points About rclone copy

  • Copies recursively: Includes all subfolders
  • Additive: Only adds new files; doesn’t delete existing ones
  • Fast: Only copies files that aren’t already at the destination
  • Preserves structure: Folder hierarchies are maintained

Dry-Run: Preview Before Copying

Callout

Safe Testing: Always Use –dry-run First

Before running a copy, use --dry-run to preview what will happen:

BASH

rclone copy ~/my-data pomona-box:/backup --dry-run

Expected output:

2026/03/05 15:10:22 INFO  : file1.csv: Copied (dry run)
2026/03/05 15:10:22 INFO  : subfolder/file2.txt: Copied (dry run)
2026/03/05 15:10:22 INFO  : Transferred:   2 files
2026/03/05 15:10:22 INFO  : Total size: 5.3M

This shows what would be copied without actually doing it. Always use --dry-run on large operations!

Checking File Integrity: rclone check

Verify that files were copied correctly by comparing checksums:

BASH

rclone check ~/my-data pomona-box:/backup

Expected output if all match:

2026/03/05 15:25:00 INFO  : Checks completed successfully
Challenge

Challenge 5.1: Create Test Data and Copy to Box

Create a local folder with test files, then copy to Box:

BASH

mkdir -p ~/test-data/subfolder
echo "This is file 1" > ~/test-data/file1.txt
echo "This is file 2" > ~/test-data/subfolder/file2.txt

Preview first with --dry-run:

BASH

rclone copy ~/test-data pomona-box:/rclone-test/challenge5 --dry-run

Then execute:

BASH

rclone copy ~/test-data pomona-box:/rclone-test/challenge5

Verify:

BASH

rclone tree pomona-box:/rclone-test/challenge5

The dry-run should show:

2026/03/05 15:10:22 INFO  : file1.txt: Copied (dry run)
2026/03/05 15:10:22 INFO  : subfolder/file2.txt: Copied (dry run)

After executing, verify with rclone tree:

/
├── file1.txt
└── subfolder/
    └── file2.txt

The folder structure on Box should match your local ~/test-data exactly.

Challenge

Challenge 5.2: Copy from Box to OneDrive

Copy your test data from Box to OneDrive:

BASH

rclone copy pomona-box:/rclone-test/challenge5 pomona-onedrive:/rclone-test/box-backup --dry-run

Preview first, then execute without --dry-run:

BASH

rclone copy pomona-box:/rclone-test/challenge5 pomona-onedrive:/rclone-test/box-backup

Verify on OneDrive:

BASH

rclone tree pomona-onedrive:/rclone-test/box-backup

The dry-run should show both files being copied from Box to OneDrive. After executing:

BASH

rclone tree pomona-onedrive:/rclone-test/box-backup

Expected output:

/
├── file1.txt
└── subfolder/
    └── file2.txt

This confirms cloud-to-cloud transfer works. The folder structure on OneDrive mirrors what was on Box.

Key Points
  • The remote:path syntax (e.g., pomona-box:/folder/file.txt) is fundamental to all rclone commands
  • rclone copy is additive and safe – it never deletes files at the destination
  • The –dry-run flag previews changes without making them and should always be used before large operations
  • Understanding the difference between local paths (~/file.txt) and remote paths (remote:path) is critical for avoiding mistakes

Content from Listing and Inspecting

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do I list files and directories in cloud storage?
  • How can I visualize directory structure?
  • How do I read file contents, delete files, and manage directories?

Objectives

  • Use rclone ls and rclone lsd to list files and folders
  • Visualize directory structure with rclone tree
  • Create and delete directories with rclone mkdir, rclone delete, and rclone purge
  • Read file contents with rclone cat

Listing Contents: rclone ls

The rclone ls command lists files in a directory (not folders).

BASH

rclone ls pomona-box:/

Expected output:

    12345 file.txt
    67890 presentation.pptx

This shows file size (in bytes) and filename. Useful options:

BASH

# Count total files
rclone ls pomona-box:/ | wc -l

# Human-readable sizes
rclone ls pomona-box:/ --human-readable

Listing Directories: rclone lsd

The rclone lsd command lists only directories (folders), not files.

BASH

rclone lsd pomona-box:/

Expected output:

          -1 2026-02-15 10:30:00        -1 My Research
          -1 2026-01-20 14:45:00        -1 Project Data

Visualizing Structure: rclone tree

The rclone tree command shows the directory structure graphically:

BASH

rclone tree pomona-box:/rclone-test

Expected output:

/
├── file1.txt
├── file2.csv
└── subfolder/
    ├── nested-file.txt
    └── data.json

Limit depth with --max-depth:

BASH

rclone tree pomona-box:/ --max-depth 2

Creating Directories: rclone mkdir

BASH

rclone mkdir pomona-box:/my-new-folder
rclone mkdir pomona-box:/rclone-test/subfolder

Create multiple levels one at a time:

BASH

rclone mkdir pomona-box:/level1
rclone mkdir pomona-box:/level1/level2
rclone mkdir pomona-box:/level1/level2/level3

Reading File Contents: rclone cat

Display the contents of a file in cloud storage without downloading it:

BASH

rclone cat pomona-box:/rclone-test/notes.txt

Preview a CSV file before downloading:

BASH

rclone cat pomona-box:/results.csv | head -5

Deleting Files and Folders

rclone delete

Removes files but not the folder itself. Use with caution: this is irreversible!

BASH

# Delete all files in a folder
rclone delete pomona-box:/rclone-test

# Delete files matching a pattern
rclone delete pomona-box:/rclone-test --include "*.tmp"

rclone purge

Deletes a folder and all contents:

BASH

rclone purge pomona-box:/rclone-test

Always Use –dry-run First!

BASH

rclone delete pomona-box:/rclone-test --dry-run
rclone purge pomona-box:/rclone-test --dry-run

Quick Reference: Common Commands

Command Purpose Syntax
ls List files rclone ls remote:path
lsd List directories rclone lsd remote:path
tree Show folder structure rclone tree remote:path
mkdir Create folder rclone mkdir remote:path
cat Display file content rclone cat remote:path
delete Delete files rclone delete remote:path
purge Delete folder + contents rclone purge remote:path
check Verify integrity rclone check source dest
size Show total size rclone size remote:path
Challenge

Challenge 6.1: List and Inspect

List files in your test folder using different commands:

BASH

rclone ls pomona-box:/rclone-test
rclone lsd pomona-box:/rclone-test
rclone tree pomona-box:/rclone-test --max-depth 2

Compare: What does each command show differently?

Each command shows different information:

rclone ls – lists files only with sizes:

       15 file1.txt
       15 subfolder/file2.txt

rclone lsd – lists directories only:

          -1 2026-03-05 15:10:00        -1 challenge5

rclone tree --max-depth 2 – shows the hierarchical structure of both files and folders:

/
└── challenge5/
    ├── file1.txt
    └── subfolder/

Use ls to find specific files, lsd to see top-level folders, and tree to visualize the full layout.

Challenge

Challenge 6.2: Delete Safely

Clean up test files using --dry-run first:

BASH

rclone delete pomona-onedrive:/rclone-test/box-backup --dry-run

Verify the dry-run output shows exactly what you want to delete. Then delete:

BASH

rclone delete pomona-onedrive:/rclone-test/box-backup

Confirm files are gone:

BASH

rclone ls pomona-onedrive:/rclone-test/box-backup

Note: The folder itself remains (empty). To remove the empty folder too, use rclone purge.

The dry-run should show files that would be deleted:

2026/03/05 15:20:15 INFO  : file1.txt: Deleted (dry run)
2026/03/05 15:20:15 INFO  : subfolder/file2.txt: Deleted (dry run)

After executing rclone delete, rclone ls pomona-onedrive:/rclone-test/box-backup should return no output, meaning no files remain. To remove the empty folder entirely, use rclone purge pomona-onedrive:/rclone-test/box-backup.

Key Points
  • rclone ls lists files, rclone lsd lists directories, and rclone tree shows the complete folder structure
  • rclone cat displays file contents without downloading, useful for previewing data
  • rclone delete removes files (not folders) while rclone purge removes folders and all contents
  • Always preview destructive operations with –dry-run before executing them

Content from Syncing Basics

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What is the difference between rclone copy and rclone sync?
  • When should I use sync vs copy?
  • What is a one-way mirror and why is it useful?

Objectives

  • Understand when to use rclone copy vs rclone sync
  • Implement one-way mirroring (sync from source to destination)
  • Set up workflows for backing up HPC results to cloud storage

Copy vs Sync: The Critical Difference

Two panels comparing rclone copy and rclone sync. Copy adds and updates files at the destination and never deletes anything, so it is safe by default. Sync makes the destination match the source exactly and deletes anything at the destination that is not in the source. A warning advises always doing a dry run of a sync first.
copy only adds; sync will delete to make the destination match.
Callout

Two Fundamentally Different Operations

rclone copy: Additive (Safe)

BASH

rclone copy source destination
  • Copies files from source to destination
  • Only adds files to destination; never deletes
  • If destination has extra files, they stay untouched
  • Safe for backups and collaboration

Example:

Before copy:
  Source:  file1.txt, file2.txt
  Dest:    file3.txt

After copy:
  Dest:    file1.txt, file2.txt, file3.txt  <- All three present!

rclone sync: Mirroring (Destructive)

BASH

rclone sync source destination
  • Makes destination an exact mirror of source
  • Deletes files in destination that don’t exist in source
  • Fast and powerful for one-way synchronization
  • Dangerous if you don’t understand what you’re doing

Example:

Before sync:
  Source:  file1.txt, file2.txt
  Dest:    file1.txt, file2.txt, file3.txt

After sync:
  Dest:    file1.txt, file2.txt  <- file3.txt DELETED!

When to Use Each

Callout

Strategic Use Cases for Copy vs Sync

Use rclone copy for:

  • Backing up work (source = your files, destination = backup)
  • Adding files to an archive that might have other content
  • Collaboration when multiple people modify files
  • Incremental backups

Use rclone sync for:

  • Mirroring simulation results to cloud storage (one-way mirror)
  • Syncing a dataset from cloud to HPC for processing
  • Maintaining an exact copy of a folder
  • Publishing results to a distribution point

Never Use rclone sync for:

  • Bidirectional syncing between two places you both modify
  • When you’re unsure of the consequences of deletion
  • Without --dry-run first!

Workflow 1: Backing Up HPC Results to Box

You run a 3-day simulation on Sagehen HPC that produces results in /scratch/results/. You want to backup these results to Box before they age out of /scratch.

The Safe Approach: Use rclone copy

BASH

rclone copy /scratch/results pomona-box:/research-backup/simulation-2026

This copies all files. Running the command again only copies changed files and doesn’t delete anything from Box.

Preview Before Copying Large Data

BASH

rclone copy /scratch/results pomona-box:/research-backup/simulation-2026 --dry-run -v

Verification

BASH

rclone check /scratch/results pomona-box:/research-backup/simulation-2026

Workflow 2: Syncing HPC Results (One-Way Mirror)

You’re running daily simulations and want to keep a mirrored copy on Box. Each day, only the latest results matter; old results should be cleaned up.

The Sync Approach

Always use --dry-run first:

BASH

rclone sync /scratch/daily-results pomona-box:/daily-results --dry-run

Once verified, execute:

BASH

rclone sync /scratch/daily-results pomona-box:/daily-results

This keeps Box in perfect sync with your local folder, automatically cleaning up old files.

Preventing Mistakes: Key Commands

Always preview sync operations:

BASH

rclone sync source destination --dry-run

Check what would be deleted:

BASH

rclone sync source destination --dry-run -vv

Use size check before large operations:

BASH

rclone size source
rclone size destination

Common Mistakes to Avoid

Mistake 1: Reversing Source and Destination

BASH

# WRONG! This deletes your HPC files!
rclone sync pomona-box:/backup /scratch/data

# RIGHT! This syncs HPC to Box
rclone sync /scratch/data pomona-box:/backup

Mistake 2: Using sync when you mean backup

sync makes the destination match the source – including deleting files from the destination when they disappear locally. That is exactly the point of Workflow 2’s one-way mirror (only the latest results matter, old ones should be cleaned up). But for a backup – where losing a local file must never delete the only remaining copy – it is dangerous:

BASH

# WRONG for a backup! Deletes files from Box if you lose them locally
rclone sync /scratch/work pomona-box:/backup

# RIGHT for a backup: copy only adds and updates, never deletes
rclone copy /scratch/work pomona-box:/backup

Rule of thumb: sync for mirrors you want pruned, copy for backups you want to keep.

Challenge

Challenge 7.1: Set Up a Mirror Workflow

Create a mirror of a local folder to Box:

BASH

mkdir -p ~/mirror-test
echo "Version 1" > ~/mirror-test/file.txt

# Sync to Box (dry-run first!)
rclone sync ~/mirror-test pomona-box:/mirror-test --dry-run
rclone sync ~/mirror-test pomona-box:/mirror-test

Now modify locally and sync again:

BASH

echo "Version 2" > ~/mirror-test/file.txt
rclone sync ~/mirror-test pomona-box:/mirror-test

Verify:

BASH

rclone cat pomona-box:/mirror-test/file.txt

Record: Did the content change to “Version 2”?

After modifying the file and syncing again, verify with:

BASH

rclone cat pomona-box:/mirror-test/file.txt

Expected output: Version 2

The content changed, confirming that rclone sync updated the modified file on Box.

Challenge

Challenge 7.2: Practice Selective Deletion with Sync

Create a scenario where sync would delete files:

BASH

mkdir -p ~/sync-test
echo "Keep this" > ~/sync-test/keep.txt
echo "Delete me" > ~/sync-test/delete.txt
rclone sync ~/sync-test pomona-box:/sync-test

Now delete locally and preview the sync:

BASH

rm ~/sync-test/delete.txt
rclone sync ~/sync-test pomona-box:/sync-test --dry-run -vv

Record: Does the dry-run show that delete.txt would be deleted from Box?

The dry-run with -vv should show:

2026/03/05 16:10:00 INFO  : delete.txt: Deleted (dry run)

After executing rclone sync ~/sync-test pomona-box:/sync-test, only keep.txt remains on Box. This demonstrates that rclone sync deletes destination files not present in the source.

Key Points
  • rclone copy is safe for backups (additive only), while rclone sync creates an exact mirror and deletes files not in the source
  • Always preview sync operations with –dry-run before executing to avoid accidental data loss
  • Use rclone copy for backups and rclone sync only for one-way mirroring where you want the destination to exactly match the source
  • Reversing source and destination in rclone sync is a common and dangerous mistake

Content from Advanced Sync Workflows

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I download large datasets from cloud to HPC?
  • How do I implement bidirectional workflows safely?
  • How can I archive deleted files instead of removing them?
  • How do I sync selectively by file type or directory?

Objectives

  • Download datasets from cloud storage to HPC
  • Implement safe bidirectional syncing patterns using separate folders
  • Use --backup-dir to archive old files during sync
  • Apply filters with --include and --exclude for selective syncing

Downloading Datasets from Cloud to HPC

A collaborator has shared a large dataset on OneDrive. Download it to Sagehen HPC for processing:

This example uses a second remote named collaborator-onedrive – configured with the same rclone config process as Episode 3, choosing onedrive instead of box. If you haven’t set one up, substitute a remote you do have (such as pomona-box:) to follow along; otherwise rclone will report didn't find section in config file.

BASH

rclone sync collaborator-onedrive:/large-dataset /scratch/raw-data --dry-run

Once satisfied, execute:

BASH

rclone sync collaborator-onedrive:/large-dataset /scratch/raw-data

If the collaborator updates the dataset, re-run sync to get only the changes.

Important: Watch /scratch Space

Large datasets can fill /scratch quickly. Monitor your usage:

BASH

rclone size /scratch/raw-data

Remember that /scratch is non-persistent SSD storage that is deleted when your job completes.

Bidirectional Syncing (Separate Folders)

The Challenge

Sometimes you want to sync in both directions without conflicts or accidental deletions.

The Safe Pattern: Separate Sync Directories

Instead of syncing the same folder both ways, use separate folders:

HPC:
  /work/myproject/source/      <- You edit files here
  /work/myproject/from-cloud/  <- Cloud files sync here

Cloud (Box):
  /myproject/hpc-updates/      <- Your HPC updates go here
  /myproject/shared/           <- Shared files everyone edits here

Setup Commands

From HPC, copy new HPC-generated files to Box:

BASH

rclone copy /work/myproject/source pomona-box:/myproject/hpc-updates

Download shared files from Box to HPC:

BASH

rclone sync pomona-box:/myproject/shared /work/myproject/from-cloud

Why This Works

  • Each direction has its own folder
  • No conflicts between local and remote edits
  • You explicitly decide what goes where
  • No accidental deletions from automatic syncing

Backing Up Deleted Files with –backup-dir

When syncing, --backup-dir moves deleted files to an archive folder instead of permanently removing them:

BASH

rclone sync /scratch/results pomona-box:/results \
  --backup-dir pomona-box:/results-archive

Before:

HPC /scratch/results:  file1.txt, file2.txt
Box /results:          file1.txt, file2.txt, file3.txt (old)

After sync:

Box /results:          file1.txt, file2.txt
Box /results-archive:  file3.txt  <- Moved here instead of deleted!

To recover an archived file:

BASH

rclone copy pomona-box:/results-archive/file3.txt pomona-box:/results/

Selective Syncing with Filters

Filter by Extension

Sync only certain file types:

BASH

rclone sync pomona-box:/large-dataset /scratch/data \
  --include "*.csv" \
  --exclude "*"

Filter by Directory

Sync only a specific subdirectory:

BASH

rclone sync pomona-box:/large-dataset/month-2026-03 /scratch/march-data

Bandwidth Limiting

To avoid overwhelming the network during large syncs:

BASH

rclone sync pomona-box:/data /scratch/data \
  --bwlimit 500M  # Limit to 500 MB/s

Summary

Task Command Destructive?
Backup HPC results rclone copy /scratch pomona-box:/backup No
Mirror HPC to cloud rclone sync /scratch pomona-box:/mirror Yes
Download dataset rclone sync pomona-box:/data /scratch/data Yes
Archive deleted files Add --backup-dir to sync No (archived)
One-way bidirectional Use separate folders + copy No
Challenge

Challenge 8.1: Cross-Cloud Transfer

Copy files from Box to OneDrive (using copy, not sync, to be safe):

BASH

echo "Box data" > ~/test.txt
rclone copy ~/test.txt pomona-box:/copy-test
rclone copy pomona-box:/copy-test pomona-onedrive:/copy-test
rclone cat pomona-onedrive:/copy-test/test.txt

Record: Did the file successfully transfer from Box to OneDrive?

After running the cross-cloud copy:

BASH

rclone cat pomona-onedrive:/copy-test/test.txt

Expected output: Box data

Cross-cloud transfers work seamlessly with rclone copy – rclone downloads from one provider and uploads to the other without saving to local disk.

Challenge

Challenge 8.2: Backup with Archive

Set up a sync with --backup-dir to archive deleted files:

BASH

mkdir -p ~/backup-test
echo "File 1" > ~/backup-test/file1.txt
echo "File 2" > ~/backup-test/file2.txt

# Sync to Box
rclone sync ~/backup-test pomona-box:/backup-test \
  --backup-dir pomona-box:/backup-test-archive

# Delete locally and sync again
rm ~/backup-test/file2.txt
rclone sync ~/backup-test pomona-box:/backup-test \
  --backup-dir pomona-box:/backup-test-archive

# Check archive
rclone ls pomona-box:/backup-test-archive

Record: Is file2.txt now in the archive folder instead of deleted?

After the second sync, check the archive:

BASH

rclone ls pomona-box:/backup-test-archive

Expected output:

        7 file2.txt

The --backup-dir flag moved file2.txt to the archive instead of permanently deleting it. This provides a safety net for recovering accidentally removed files.

Key Points
  • One-way mirroring (sync from HPC to cloud) is appropriate for daily results; use separate folders for bidirectional workflows
  • The –backup-dir flag preserves deleted files in an archive instead of permanently removing them during sync
  • Selective syncing with –include and –exclude filters allows you to sync only specific file types or directories
  • Bandwidth limiting with –bwlimit prevents large transfers from overwhelming the shared network

Content from Automating with Cron

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How can I schedule automatic syncs?
  • What is cron and how do I create cron jobs?
  • How do I debug scheduled sync jobs?

Objectives

  • Understand cron scheduling syntax
  • Create cron jobs for recurring rclone syncs
  • Build shell scripts with error handling and notifications
  • Debug common cron job issues

Why Schedule Syncs?

Instead of manually running rclone sync, you can schedule it to run automatically:

  • Daily backups: Sync your HPC work to Box every night
  • Regular downloads: Update your local data from cloud sources
  • Continuous mirroring: Keep two locations perfectly synchronized

Understanding Cron

Cron is a Linux job scheduler. A cron job runs a command at specified times.

Cron format:

minute hour day_of_month month day_of_week command

Examples:

0 2 * * *     # Every day at 2:00 AM
0 */4 * * *   # Every 4 hours
0 2 * * 1     # Every Monday at 2:00 AM; 1 = Monday
30 9 1 * *    # First day of month at 9:30 AM

Creating a Cron Job

Edit your cron table:

BASH

crontab -e

Add a new line for your scheduled sync:

BASH

# Sync HPC results to Box every night at 2 AM
0 2 * * * module load rclone && rclone sync /scratch/results pomona-box:/daily-backup --log-file ~/.rclone-sync.log

Save and exit the editor. Verify the job is scheduled:

BASH

crontab -l

Checking Cron Logs

After your job runs, check if it succeeded:

BASH

cat ~/.rclone-sync.log

If you see token errors, your token has expired. Use rclone config reconnect to refresh it.

Advanced: Shell Script for Scheduled Syncs

For complex syncing with error handling and notifications, create a shell script:

BASH

#!/bin/bash
# File: ~/rclone-sync.sh

# Load modules
module load rclone

# Log file
LOGFILE="$HOME/.rclone-sync-$(date +%Y-%m-%d).log"

# Sync HPC results to Box
echo "Starting sync at $(date)" >> $LOGFILE
rclone sync /scratch/results pomona-box:/daily-backup \
  --log-file $LOGFILE \
  --backup-dir pomona-box:/results-archive

# Check result
if [ $? -eq 0 ]; then
  echo "Sync completed successfully" >> $LOGFILE
  echo "Sync successful!" | mail -s "rclone sync OK" $USER@pomona.edu
else
  echo "Sync FAILED" >> $LOGFILE
  echo "Check logs: $LOGFILE" | mail -s "rclone sync FAILED" $USER@pomona.edu
fi

echo "Sync finished at $(date)" >> $LOGFILE

Make it executable and schedule it:

BASH

chmod +x ~/rclone-sync.sh
crontab -e
# Add: 0 2 * * * ~/rclone-sync.sh

Debugging Cron Jobs

Common issues when cron jobs don’t work:

  1. Module not loaded: module: command not found – cron doesn’t load your shell profile
  2. Path issues: Paths must be absolute (e.g., /scratch, not ~/results)
  3. Token expired: Re-authenticate with rclone config reconnect
  4. Permissions: User running cron might not have write permissions

Use Full Paths and Absolute References

BASH

# WRONG - won't work in cron
0 2 * * * rclone sync ~/results myremote:/backup

# RIGHT - works in cron
0 2 * * * /usr/bin/rclone sync /rhome/<myusername>/results myremote:/backup
Challenge

Challenge 9.1: Create a Scheduled Sync Job

Create a cron job that syncs your test folder. First, create a test script:

BASH

cat > ~/sync-test.sh << 'EOF'
#!/bin/bash
module load rclone
echo "Sync running at $(date)" >> $HOME/.sync-test.log
rclone copy ~/test-data.txt pomona-box:/scheduled-sync-test \
  --log-file $HOME/.sync-test-$(date +%Y-%m-%d).log
echo "Sync finished at $(date)" >> $HOME/.sync-test.log
EOF

chmod +x ~/sync-test.sh

Schedule it to run every 5 minutes for testing:

BASH

crontab -e
# Add: */5 * * * * ~/sync-test.sh

Wait 5 minutes, then check the log and verify on Box. Once satisfied, remove the test job from crontab.

After waiting 5 minutes, check:

BASH

cat ~/.sync-test.log

Expected output shows timestamps of each run. Verify the file reached Box:

BASH

rclone ls pomona-box:/scheduled-sync-test

After confirming, remove the cron job with crontab -e and delete the test line. Verify removal with crontab -l.

Key Points
  • Cron jobs require absolute file paths and may need module load rclone in the command
  • Shell scripts with error handling and email notifications make automated syncs more robust
  • Always test cron jobs by running the command manually first before scheduling
  • Check cron logs regularly to catch token expiration and other failures early

Content from SLURM Integration

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I automatically upload results after a SLURM job finishes?
  • How do I build multi-step pipelines with rclone and SLURM?
  • How do I handle token expiration in automated jobs?
  • What logging do I need for unattended runs?

Objectives

  • Implement post-job upload automation in SLURM scripts
  • Build multi-step data pipelines that download, process, and upload data
  • Verify token validity before running automated jobs
  • Add logging and error handling to SLURM-rclone workflows

Why Automate Cloud Transfers in SLURM

Manual rclone copies work for one-off uploads, but research workflows generate results continuously. Submitting a job, waiting for it to finish, then logging in to copy results is fragile: jobs end at 3 AM, you forget which directory the results live in, and the latest run gets confused with the previous one. Automating cloud transfers inside the SLURM script removes these failure modes. The job pulls input from cloud at start, runs the analysis, and pushes results back at the end, all without any human intervention.

This pattern is especially valuable for collaborative research, where teammates expect new data to land in a shared Box folder on a known schedule, and for long sweeps where you need to start the next experiment as soon as the previous results are safely uploaded.

Four steps at the end of a job: the job finishes, rclone copies results to Box, rclone check verifies the transfer, and only then is /scratch cleaned up. A note explains that verifying first matters because if the check fails the results are still on /scratch, but only until that node is reused.
Upload, verify, then clean up — in that order.

Post-Job Upload

You can have rclone upload results automatically after a SLURM job completes:

BASH

#!/bin/bash
#SBATCH --job-name=simulation
#SBATCH --time=6:00:00
#SBATCH --ntasks=16

# Load modules
module load rclone
module load miniconda3   # plus whatever else your job needs

# Your simulation
./my-simulation --input data.txt --output results.dat

# After job finishes, upload results
rclone sync ./results pomona-box:/simulation-results/$(date +%Y-%m-%d) \
  --log-file $HOME/rclone-upload-$(date +%Y-%m-%d).log

# Optional: Email notification
if [ $? -eq 0 ]; then
  echo "Job complete. Results uploaded to Box." | mail -s "Job finished" $USER@pomona.edu
else
  echo "Job complete, but upload failed. Check logs." | mail -s "Job finished (upload FAILED)" $USER@pomona.edu
fi

Key points:

  • Load rclone module at the start so it is available for the whole script.
  • Use --log-file to capture transfer details for later debugging.
  • Check exit code ($?) right after each rclone command, before any other command resets it.
  • Use $(date +...) for timestamped output folders so multiple runs do not collide.

The rclone sync (vs rclone copy) deletes files at the destination that are not in the source. This is useful for “the source is the canonical state” patterns and dangerous if you accidentally point sync at the wrong destination. Use copy when in doubt; switch to sync only when you intend the destination-pruning behavior.

Multi-Step Workflow with Verification

A more complete pipeline downloads input, processes it, verifies the output, and uploads:

BASH

#!/bin/bash
#SBATCH --job-name=data-pipeline
#SBATCH --time=2:00:00

module load rclone
module load miniconda3   # plus whatever else your pipeline needs

# Step 1: Download data from Box
echo "Downloading data..."
rclone sync pomona-box:/input-data /scratch/pipeline-input

# Step 2: Run pipeline
echo "Running pipeline..."
./pipeline /scratch/pipeline-input /scratch/pipeline-output

# Step 3: Verify output
if [ ! -d /scratch/pipeline-output ] || [ -z "$(ls -A /scratch/pipeline-output)" ]; then
  echo "ERROR: Pipeline produced no output!" >&2
  exit 1
fi

# Step 4: Upload results
echo "Uploading results..."
rclone copy /scratch/pipeline-output pomona-box:/results/run-$(date +%Y-%m-%d-%H%M%S)

echo "Pipeline complete!"

The verification step (number 3) is critical for unattended runs. Without it, a pipeline that silently failed could “succeed” by uploading nothing, and you would not know until checking the next morning. Treat the verification as load-bearing infrastructure: write it once, then reuse it across pipelines.

Callout

Bandwidth and rclone

The Sagehen HPC connection to Box and OneDrive is fast (typically 100+ MB/s for large files), but small-file transfers spend most of their time on per-file overhead. If your pipeline output is a directory of 10,000 small files, transfer time will be dominated by HTTP round-trips, not raw bandwidth.

Two mitigations:

Pack small files into a tarball before upload: tar czf results.tar.gz /scratch/output, then rclone copy results.tar.gz pomona-box:.... One large file uploads much faster than 10,000 small ones.

For Box specifically, rclone’s --transfers=8 runs 8 concurrent transfers. Box’s API tolerates this well. For OneDrive, stay at the default --transfers=4 to avoid throttling.

Handling Token Expiration in Automated Jobs

Problem

If an automated job runs and your token has expired, the upload step will fail. Without a check, the job appears to succeed (the simulation finished) but the results never make it to cloud.

Solution: Verify Token Before Running Sync

Add a token check to your job script:

BASH

#!/bin/bash
#SBATCH --job-name=safe-upload
#SBATCH --time=1:00:00

module load rclone

# Check if token is valid
rclone about pomona-box: > /dev/null 2>&1

if [ $? -ne 0 ]; then
  echo "rclone token for pomona-box has expired!" | mail -s "Action required" $USER@pomona.edu
  echo "ERROR: Token expired. Skipping upload." >&2
  # Continue with computation but skip upload
fi

# Run your computation
./my-computation

# Upload only if token was valid
rclone about pomona-box: > /dev/null 2>&1
if [ $? -eq 0 ]; then
  rclone copy ./results pomona-box:/job-results
fi

The rclone about REMOTE: command makes a lightweight API call that returns quickly. If the token is invalid, it fails with a non-zero exit. Two checks (one before, one after) protect against tokens that expire mid-job.

For long-lived workflows, refresh the token proactively each morning before submitting jobs. The Box and OneDrive default token lifetimes are 60 days and 90 days respectively; a calendar reminder catches expiry before it bites. NOTE: These token lifetimes (Box 60 days, OneDrive 90 days) are tenant-dependent — verify current values with ITS.

Callout

Logging that helps when things go wrong

For unattended jobs, you cannot debug live. Logs are your only diagnostic. Make them complete:

BASH

LOG=$HOME/logs/$SLURM_JOB_ID.log
{
  echo "=== Job $SLURM_JOB_ID started $(date) ==="
  rclone copy /scratch/output pomona-box:/results --log-file $LOG --log-level INFO
  echo "Exit code: $?"
  echo "=== Job $SLURM_JOB_ID finished $(date) ==="
} >> $LOG 2>&1

The --log-level INFO (or DEBUG) gives rclone-specific detail beyond the bash output. The job ID in the filename keeps logs separated even when many jobs run concurrently.

Challenge

Challenge 10.1: Create a Post-Job Upload Script

Create a SLURM job script that uploads results automatically:

BASH

cat > ~/test-job.slurm << 'EOF'
#!/bin/bash
#SBATCH --job-name=test-upload
#SBATCH --time=0:10:00

# Simulate a job that produces results.
# NOTE: /scratch is only writable from INSIDE a running job -- trying this
# mkdir on the head node fails with "Permission denied". Inside the job,
# use the job's own auto-created scratch directory:
RESULTS=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID/job-results
mkdir -p "$RESULTS"
echo "Job completed on $(date)" > "$RESULTS/results.txt"


# Load rclone
module load rclone

# Upload results
echo "Uploading results..."
rclone copy "$RESULTS" pomona-box:/job-uploads/$(date +%Y-%m-%d-%H%M%S) \
  --log-file $HOME/rclone-job-upload.log

# Check result
if [ $? -eq 0 ]; then
  echo "Upload successful!"
else
  echo "Upload failed! Check log."
  cat $HOME/rclone-job-upload.log
fi
EOF

chmod +x ~/test-job.slurm

Submit the job with sbatch ~/test-job.slurm, then verify the upload.

After submitting with sbatch, check job status with squeue -u $USER. Once complete, check the upload log:

BASH

cat $HOME/rclone-job-upload.log

A successful log shows no ERROR lines. Verify on Box:

BASH

rclone ls pomona-box:/job-uploads

You should see your results.txt file in a timestamped folder.

Challenge

Challenge 10.2: Add Token Verification

Modify the script from Challenge 10.1 to check the token before computing and again before uploading. If the token is expired at either point, send an email and exit cleanly without losing the computation.

BASH

#!/bin/bash
#SBATCH --job-name=safe-upload
#SBATCH --time=0:15:00

module load rclone

# Verify token before starting
if ! rclone about pomona-box: > /dev/null 2>&1; then
  echo "Token invalid before computation; aborting." | mail -s "Token expired" $USER@pomona.edu
  exit 1
fi

# Computation (inside the job's auto-created scratch directory)
RESULTS=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID/job-results
mkdir -p "$RESULTS"
echo "Job completed on $(date)" > "$RESULTS/results.txt"

# Verify token still valid before upload. IMPORTANT: /scratch is deleted when
# the job ends, so if the upload can't happen, rescue the results to /rhome
# first -- otherwise they are gone.
if ! rclone about pomona-box: > /dev/null 2>&1; then
  cp -r "$RESULTS" $HOME/rescued-job-results-$SLURM_JOB_ID
  echo "Token expired during job; results rescued to ~/rescued-job-results-$SLURM_JOB_ID" \
    | mail -s "Upload failed, results saved" $USER@pomona.edu
  exit 0
fi

rclone copy "$RESULTS" pomona-box:/job-uploads/$(date +%Y-%m-%d) \
  --log-file $HOME/rclone-job-upload.log

Notice the dual-check pattern: refusing to start if the token is bad (so you do not waste compute) and warning but preserving results if it expires mid-job (so manual recovery is possible).

Key Points
  • SLURM job scripts can include rclone copy/sync commands to automatically upload results after a job finishes
  • Multi-step pipelines can download data from cloud, process it on HPC, and upload results back to cloud
  • Always verify token validity before automated uploads to avoid silent failures
  • Use –log-file to capture transfer details for debugging failed uploads
  • Pack many small files into a tarball before upload to avoid per-file overhead
  • Use rclone sync only when you intend destination-pruning; rclone copy is safer
  • Always include output verification before uploading to catch silent pipeline failures

Content from Token Management and Maintenance

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do I know when my rclone token has expired?
  • What is token expiration and why does it happen?
  • How do I refresh an expired token?

Objectives

  • Understand OAuth token lifecycle and expiration
  • Check token validity with rclone about
  • Refresh expired tokens using rclone config reconnect
  • Set up reminders for proactive token renewal

Understanding OAuth Token Expiration

Callout

OAuth Token Lifecycle and Expiration

How OAuth Works

When you ran rclone config and authenticated via Box or OneDrive, you received an OAuth token. This token is like a temporary access card: 1. You authenticated once (via the browser OAuth flow) 2. rclone received a token that proves your identity 3. The token is stored in ~/.config/rclone/rclone.conf 4. rclone uses this token to access Box/OneDrive without your password

Why Tokens Expire

OAuth tokens don’t last forever. They typically expire every 2-3 months for security reasons: - Limits damage: If someone steals a token, they can’t use it forever - Enforces re-authentication: You must periodically prove your identity again - Improves security: Forces you to use current authentication methods (2FA, password updates, etc.)

When Your Token Expires

You’ll see errors like these:

2026/03/10 14:22:15 ERROR : access_token_expired: Access token has expired
2026/03/10 14:22:15 ERROR : invalid_grant: The provided authorization grant is invalid

Checking Your Token Status

The simplest way to check if your token is still valid:

BASH

rclone about pomona-box:

If you see storage information, your token is valid. If you see an error, it needs renewal.

Test all your configured remotes:

BASH

rclone about pomona-box:
rclone about pomona-onedrive:

Renewing Expired Tokens

Callout

Quick Token Renewal Methods

BASH

rclone config reconnect pomona-box:

This keeps all existing settings and only refreshes the OAuth token. It launches your browser for re-authentication and takes about 30 seconds.

Method 2: Full Reconfiguration

If reconnect fails, you can reconfigure from scratch:

BASH

rclone config

Choose e (Edit existing remote), select your remote, and go through the OAuth flow again.

Reconnect Multiple Remotes

If all your tokens are expired:

BASH

rclone config reconnect pomona-box:
rclone config reconnect pomona-onedrive:

Important: Port Forwarding for Token Renewal

Just like initial setup, token renewal needs port forwarding:

BASH

ssh <myusername>@sagehen.hpc.pomona.edu -L 53682:localhost:53682

Then in the SSH session, run reconnect commands.

Setting Up Token Renewal Reminders

Create a cron job that reminds you to refresh tokens:

BASH

# Add to crontab
0 2 1 */2 * echo "Time to refresh rclone tokens!" | mail -s "Reminder" $USER@pomona.edu

This sends a reminder email on the first day of every other month.

Challenge

Challenge 11.1: Check Your Token Status

Verify that both your Box and OneDrive tokens are still valid:

BASH

echo "Checking Box token..."
rclone about pomona-box:

echo "Checking OneDrive token..."
rclone about pomona-onedrive:

Record: Are both tokens valid? Do you see storage information for both?

For valid tokens, you should see storage info for each:

Checking Box token...
Total:   1.0T
Used:    45.2G
Free:    954.8G

Checking OneDrive token...
Total:   1.0T
Used:    8.4G
Free:    991.6G

If a token has expired, you will see: ERROR : error: invalid_grant: The provided authorization grant is invalid. An expired token is not a problem – renew it with rclone config reconnect.

Challenge

Challenge 11.2: Practice Token Renewal

Practice renewing a token (even if it’s not actually expired):

BASH

ssh <myusername>@sagehen.hpc.pomona.edu -L 53682:localhost:53682
module load rclone
rclone config reconnect pomona-box:

Go through the OAuth flow in your browser. Then verify:

BASH

rclone about pomona-box:

Record: Did the reconnect succeed?

During the reconnect, you should see:

NOTICE: AUTHORIZATION REQUIRED
Go to the following link in your browser: http://localhost:53682/auth?code=...

After completing OAuth: NOTICE: Authorization successful!

Seeing storage info from rclone about confirms the token was refreshed. Remember: you must have SSH port forwarding active for reconnect to work.

Key Points
  • OAuth tokens expire every 2-3 months and should be refreshed proactively with rclone config reconnect
  • Use rclone about remote: to test token validity before running important automated jobs
  • Token renewal requires SSH port forwarding (-L 53682:localhost:53682) just like initial setup
  • Set calendar or cron reminders to refresh tokens before they expire

Content from Troubleshooting and Best Practices

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What should I do if authentication fails?
  • How do I monitor transfer logs and verify successful syncs?
  • What are the best practices for production rclone use?

Objectives

  • Troubleshoot common authentication and connection errors
  • Monitor transfer logs and manage log files
  • Apply best practices for reliable rclone workflows
  • Know where to get help

Troubleshooting Authentication Errors

Browser Doesn’t Open Automatically

If the OAuth browser doesn’t open during setup or reconnect, manually paste the URL shown in your terminal into your web browser.

“Connection refused” Error

Symptom:

ERROR : error: connection refused on oauth callback

Cause: You forgot the -L 53682:localhost:53682 flag in SSH.

Solution: Exit and reconnect SSH with port forwarding, then retry.

“OAuth redirect mismatch”

Symptom:

ERROR : oauth2: server redirect URL does not match configured redirect URI

Cause: You’re running the command on a different machine than where you set it up.

Solution: Run rclone config on Sagehen HPC with port forwarding -L 53682:localhost:53682.

“rclone: command not found”

You forgot to load the module. Run:

BASH

module load rclone

“Access Denied” During OAuth (OneDrive)

  1. Ensure you’re using your Pomona email account (not a personal Microsoft account)
  2. Check that your account has OneDrive enabled (contact IT if unsure)
  3. Sign out of all Microsoft accounts in your browser, sign back in with Pomona only
  4. Retry the rclone configuration

Force Re-authentication

If rclone caches a token it thinks is valid but isn’t working:

BASH

rclone config reconnect pomona-box:

(There is no --force flag on config reconnect. If reconnecting doesn’t clear the problem, delete and recreate the remote: rclone config delete pomona-box, then run rclone config again – your data on Box is untouched.)

Monitoring Transfer Logs

Check Logs for Errors

BASH

# View recent errors
grep ERROR $HOME/.rclone*.log | tail -5

# View successful transfers
grep "Transferred:" $HOME/.rclone*.log | tail -5

Monitor Transfer Sizes

Before large syncs, check how much data you’re about to transfer:

BASH

rclone size /scratch/results

Check destination free space:

BASH

rclone about pomona-box:

Log Cleanup Script

Create a script to remove old log files:

BASH

#!/bin/bash
# File: ~/cleanup-rclone-logs.sh
# Remove rclone logs older than 30 days
find $HOME -name ".rclone*.log" -mtime +30 -delete
find $HOME -name ".sync*.log" -mtime +30 -delete
echo "Cleaned up logs older than 30 days"

Schedule it monthly:

BASH

crontab -e
# Add: 0 0 1 * * ~/cleanup-rclone-logs.sh

Best Practices for Production Use

  1. Monitor tokens: Check rclone about remote: monthly
  2. Set reminders: Refresh tokens proactively (don’t wait for failures)
  3. Test cron jobs: Run manually first, then schedule
  4. Use absolute paths: Always use /full/path, not ~/relative
  5. Log everything: Always use --log-file for debugging
  6. Verify transfers: Use rclone check after important syncs
  7. Plan for failures: Email alerts, backup directories, dry-run before sync

Getting Help

For questions or issues:

Congratulations!

You’ve completed the entire Cloud Storage Integration with rclone workshop! You now know:

  1. Why cloud storage integration is important
  2. How to set up Box and OneDrive with rclone
  3. How to execute basic file operations
  4. How to implement syncing workflows
  5. How to automate transfers and maintain your setup

You’re ready to integrate cloud storage into your research workflows on Sagehen HPC!

Next Steps

  • Set up your primary workflow: Choose Box or OneDrive and start syncing your research data
  • Implement automated backups: Schedule nightly syncs of important results
  • Share with collaborators: Use Box for collaboration with other Pomona users
  • Monitor your tokens: Set a calendar reminder to refresh tokens every 2 months
  • Document your setup: Create notes about which folders sync to where
Challenge

Challenge 12.1: Monitor and Manage Logs

Inspect your rclone logs and create a cleanup routine:

BASH

# View all rclone logs
ls -lah $HOME/.rclone*.log $HOME/.sync*.log 2>/dev/null

# View recent errors
grep ERROR $HOME/.rclone*.log | tail -5

# View successful transfers
grep "Transferred:" $HOME/.rclone*.log | tail -5

Create and run the cleanup script:

BASH

cat > ~/cleanup-rclone-logs.sh << 'EOF'
#!/bin/bash
find $HOME -name ".rclone*.log" -mtime +30 -delete
find $HOME -name ".sync*.log" -mtime +30 -delete
echo "Cleaned up logs older than 30 days"
EOF

chmod +x ~/cleanup-rclone-logs.sh
~/cleanup-rclone-logs.sh

Record: How many old log files were found and deleted?

Running the log inspection commands shows your existing log files with sizes and dates. The grep ERROR command highlights any failed transfers; if no errors, it returns no output (good).

The cleanup script output:

Cleaned up logs older than 30 days

If you just created the logs today, nothing is deleted. This is expected. The script becomes useful over time as logs accumulate. Schedule it monthly with 0 0 1 * * ~/cleanup-rclone-logs.sh in crontab.

Key Points
  • Common errors like “connection refused” and “command not found” have straightforward fixes related to port forwarding and module loading
  • Monitor rclone logs with –log-file to debug failed transfers and track successful synchronizations over time
  • Use rclone size and rclone about to check data volumes and available space before large transfers
  • Contact for HPC-specific issues and consult rclone.org/docs for rclone documentation
