Sharing and Exporting Notebooks

Overview

Questions

• How can I convert notebooks to other formats?
• How do I use version control with notebooks?
• How do I share reproducible research?

Objectives

• Convert notebooks to Python scripts, HTML, and PDF
• Use version control (Git) with notebooks effectively
• Create reproducible environment files for sharing
• Publish and share reproducible research

Converting Notebooks to Other Formats

---

To Python script

Convert notebook to a standalone Python script:

BASH

# In terminal on Sagehen
jupyter nbconvert --to script my_notebook.ipynb

# Creates: my_notebook.py
# All code cells become code
# Markdown cells become comments

Then run the script:

BASH

python my_notebook.py

Or submit as a batch job:

BASH

sbatch --job-name=analysis --time=1:00:00 --cpus-per-task=4 --mem=8G script.sbatch

Where script.sbatch contains:

BASH

#!/bin/bash
module load miniconda3
conda activate analysis
python my_notebook.py

To HTML (for sharing)

Create a self-contained HTML file that looks like the notebook:

BASH

jupyter nbconvert --to html my_notebook.ipynb

# Creates: my_notebook.html
# Open in any web browser - no Jupyter needed!

Email the HTML file to colleagues. They can view all code, outputs, and visualizations without having Jupyter installed.

To PDF (for publication)

BASH

jupyter nbconvert --to pdf my_notebook.ipynb

# Creates: my_notebook.pdf

Note: PDF export requires additional dependencies. If it fails, convert to HTML first, then print to PDF from your browser.

From JupyterLab interface

You can also export from within JupyterLab:

1. Click File then Save and Export Notebook As
2. Choose your desired format from the submenu

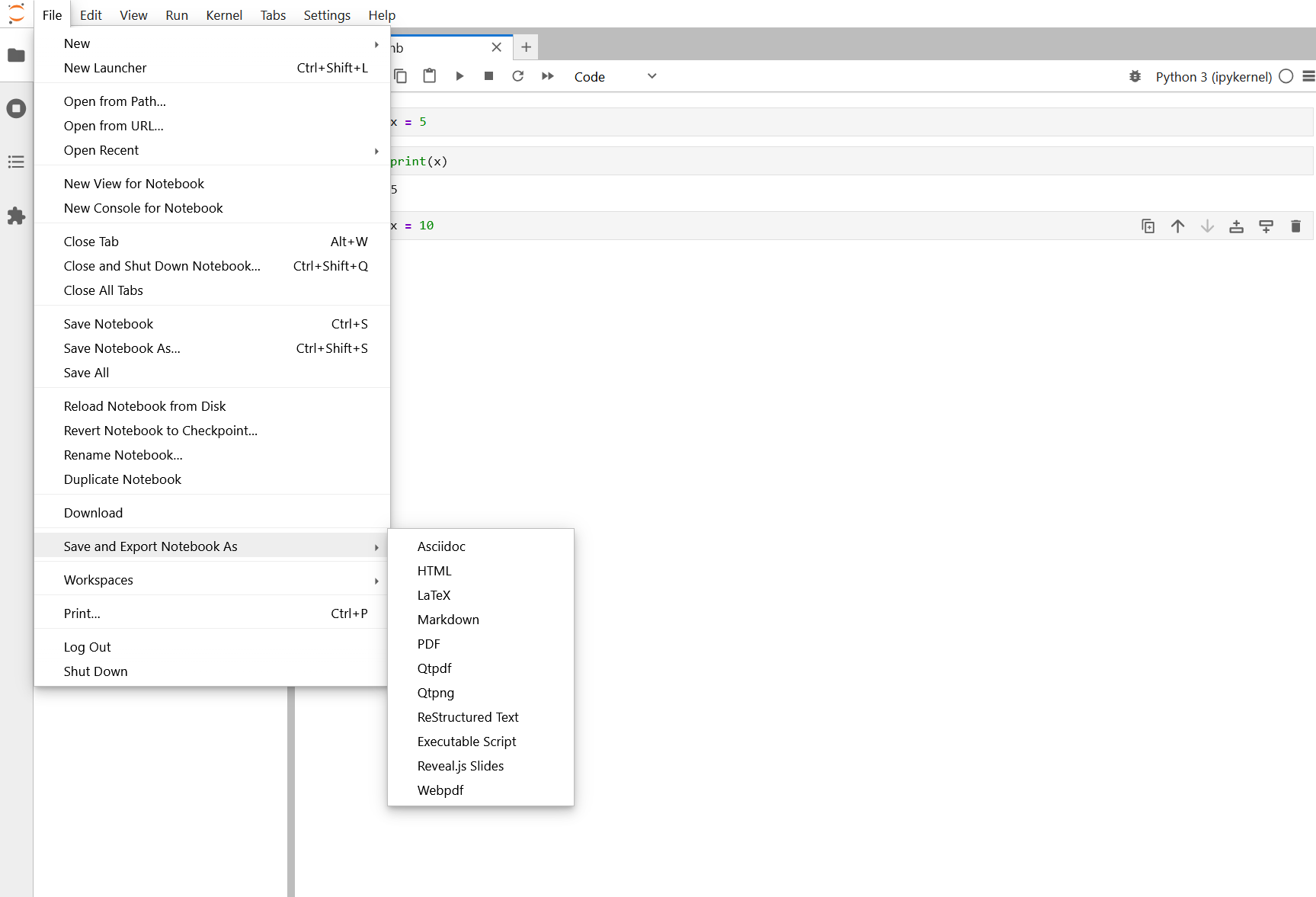

File menu showing Save and Export Notebook As with format options

Reproducible Environments

---

Exporting an environment

Share your exact environment (all packages and versions) with colleagues:

BASH

conda activate myproject

# Export to a file
conda env export > environment.yml

The file looks like:

YAML

name: myproject
channels:
  - conda-forge
  - defaults
dependencies:
  - python=3.11
  - numpy=1.24.0
  - pandas=2.0.0
  - matplotlib=3.7.0
  - pip
  - pip:
    - scikit-learn==1.3.0
    - requests==2.31.0

Recreating from a file

Someone with this file can recreate your exact environment:

BASH

conda env create -f environment.yml
conda activate myproject
conda list

Version Control with Git

---

Including notebooks in Git

Notebooks are JSON files, so Git can track them, but diffs aren’t pretty. Still include them:

BASH

# Initialize Git repo
git init

# Create .gitignore
cat > .gitignore << EOF
*.ipynb_checkpoints/
__pycache__/
*.pyc
data/raw/*
results/*
.DS_Store
EOF

# Add and commit
git add .
git commit -m "Initial notebook project structure"

Best practices for Git + Notebooks

Do commit: - Notebook files (yes, the .ipynb files) - environment.yml (reproducibility!) - README.md - Small data files (< 10 MB)

Don’t commit: - Large datasets (use /bigdata or external storage) - Output files (regenerate them) - Checkpoint folders (.ipynb_checkpoints/)

Before committing: 1. Restart kernel 2. Run all cells 3. Clear large outputs: Edit then Clear Outputs of All Cells 4. Save notebook 5. Then commit

Publishing Reproducible Research

---

Sharing on GitHub

BASH

git init
git add .
git commit -m "Initial commit"
git remote add origin https://github.com/you/project.git
git push -u origin main

Creating a DOI for citation

Use Zenodo to get a Digital Object Identifier (DOI):

1. Go to https://zenodo.org/
2. Login with GitHub
3. Authorize Zenodo to access your repos
4. Select your repo to archive
5. Get a citable DOI like: https://doi.org/10.5281/zenodo.xxxxx

Challenge

Challenge 1: Export notebook in multiple formats

1. In JupyterLab, create a simple notebook with a markdown title and a code cell that creates a plot

2. Run all cells

3. Export to Python script:

   BASH

   jupyter nbconvert --to script notebook_name.ipynb

4. Export to HTML:

   BASH

   jupyter nbconvert --to html notebook_name.ipynb

5. Open the .py and .html files to see how they look

Show me the solution

Python script output shows code cells as Python code and markdown as comments:

PYTHON

# # Data Analysis Report
# This report demonstrates exporting notebooks.

import matplotlib.pyplot as plt
import numpy as np
# ... rest of code

HTML output creates a self-contained file viewable in any browser with formatted markdown, code cells, and embedded plots.

Use cases: - Script (.py): Run analysis on cluster with SLURM - HTML: Email or share with colleagues who don’t have Jupyter - PDF: Submit with research reports or publish

Challenge

Challenge 2: Export environment file

1. In your terminal (while in the workshop environment):

   BASH

   conda activate workshop
   conda env export > ~/workshop_environment.yml

2. Look at the file:

   BASH

   cat ~/workshop_environment.yml

3. A collaborator can recreate your exact environment:

   BASH

   conda env create -f workshop_environment.yml

This is how you ensure reproducibility across machines!

Show me the solution

The file contains:

YAML

name: workshop
channels:
  - conda-forge
  - defaults
dependencies:
  - python=3.11.x
  - numpy=1.24.x
  - pandas=2.0.x
  - ...
prefix: /opt/miniconda3/envs/workshop

A colleague can do conda env create -f workshop_environment.yml and conda activate workshop to get the exact same environment. This YAML file is the key to reproducible science.

Key Points

• Convert notebooks to Python scripts for batch jobs, HTML for sharing, PDF for publication
• Export environment.yml files so others can recreate your exact environment
• Use Git for version control; commit notebooks, environment.yml, and documentation
• Publish on GitHub and use Zenodo for citable DOIs
• Always restart kernel and run all cells before sharing
