Overview

Questions

  • What are GPUs and why use them?
  • When is GPU acceleration beneficial?
  • What workloads suit GPU computing?
  • How do GPUs differ from CPUs?

Objectives

  • Understand GPU architecture and benefits
  • Identify GPU-suitable workloads
  • Know when to use GPUs vs CPUs
  • Understand cost-benefit tradeoffs

What is a GPU?

GPUs (Graphics Processing Units) are specialized processors optimized for: - Parallel computation (thousands of threads simultaneously) - High memory bandwidth (fast data access) - Matrix operations and tensor computations - Deep learning and machine learning

CPU vs GPU

CPUs: Sequential computation, complex logic, few cores (4-128) GPUs: Parallel computation, high throughput, thousands of cores

Analogy: - CPU is a Ferrari (fast, powerful, limited seats) - GPU is a bus (slower per person, carries many passengers)

Performance Gains

GPUs can provide 10x-100x speedup for suitable tasks: - Deep learning training: 20-50x speedup - Scientific simulations: 10-30x speedup - Image processing: 5-20x speedup - Data sorting: 5-10x speedup

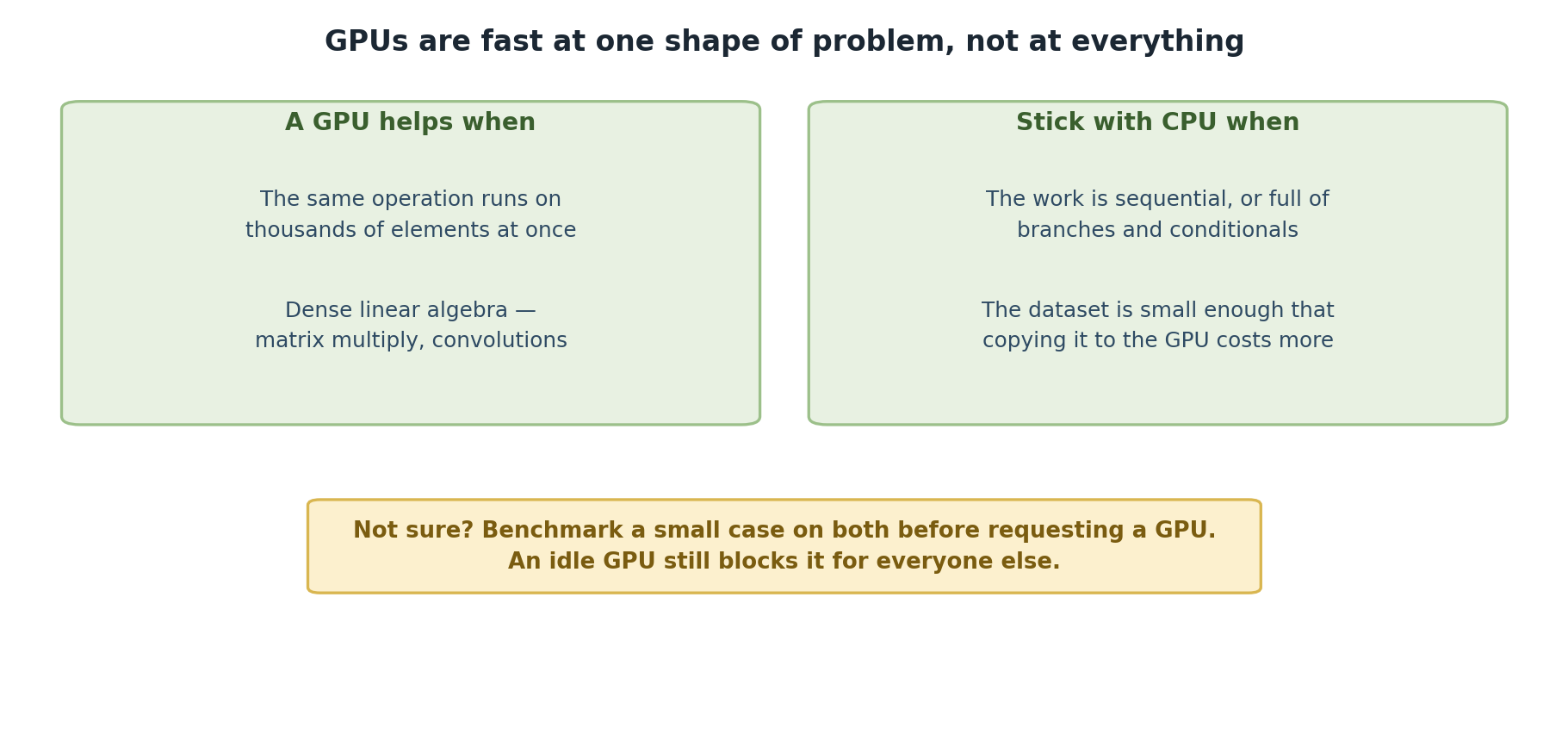

Two panels. A GPU helps when the same operation runs on thousands of elements at once, and for dense linear algebra such as matrix multiplication and convolutions. Stick with CPU when the work is sequential or full of branches and conditionals, or when the dataset is small enough that copying it to the GPU costs more than it saves. A note advises benchmarking a small case on both before requesting a GPU, since an idle GPU still blocks it for everyone else.
A GPU is fast at one shape of problem, and no help at all with others.

Sagehen HPC GPU Hardware

Sagehen has 10 GPUs across multiple nodes (confirmed May 2026): 4× A100 (80 GB), 4× L40S (48 GB), 2× RTX PRO 6000 Blackwell (96 GB). For full hardware breakdown see README.md or Workshop 16 episode 02.

Node Configuration

  • NVIDIA A100 (×4): 80 GB HBM2e memory (highest performance)
  • NVIDIA L40S (×4): 48 GB GDDR6 memory (deep learning optimized)
  • NVIDIA RTX PRO 6000 Blackwell (×2): 96 GB GDDR7 ECC memory (the largest GPU memory on Sagehen)

10 GPUs available across the cluster

GPU Specifications

GPU Memory Performance Quantity Best For
A100 80 GB Highest 4 Large models
L40S 48 GB Very High 4 Deep learning
RTX PRO 6000 96 GB ECC Very High 2 Largest-memory models / ECC workloads

Choosing the Right GPU

  • Training the largest models (>80 GB): RTX PRO 6000 (96 GB) — the largest memory on Sagehen
  • Large models (48–80 GB): A100 80 GB or RTX PRO 6000
  • Deep learning research (up to 48 GB): L40S 48 GB
  • Standard ML: L40S 48 GB
  • ECC memory needed: RTX PRO 6000
  • Cost-conscious / prototyping: L40S — the least contended of the three, so it is the sensible default for iterating

GPU-Suitable Workloads

Ideal for GPU

  • Deep learning (training neural networks)
  • Scientific simulations
  • Image and video processing
  • Matrix operations
  • Data analytics at scale
  • Physics simulations
  • Climate modeling

NOT Suitable for GPU

  • Sequential code with little parallelism
  • Complex control flow
  • Random memory access patterns
  • Very small data (transfer overhead > computation gain)
  • Single-threaded algorithms

Example: When GPU Helps

Data science workflow: 1. Load data: CPU (fast) 2. Preprocess: CPU (sequential steps) 3. Train model: GPU (thousands of iterations, matrix ops) 4. Evaluate: CPU (fast, little computation)

Only step 3 benefits from GPU; transfer overhead may dominate.

GPU Programming Models

CUDA (NVIDIA)

  • Native NVIDIA programming
  • Highest performance
  • Requires C/C++ knowledge
  • Not for beginners

High-Level Libraries

Most users should use: - PyTorch: Deep learning, Python, easy GPU support - TensorFlow: Deep learning, industry standard - CuPy: NumPy-like array computing on GPU - scikit-cuda: scikit-learn acceleration

Framework Automatic GPU Use

Modern frameworks auto-detect GPUs:

PYTHON

import torch
# PyTorch automatically uses GPU if available
model = MyModel().cuda()  # Explicitly move to GPU

PYTHON

import tensorflow as tf
# TensorFlow automatically uses GPU
gpus = tf.config.list_physical_devices('GPU')

Getting Started with GPU on Sagehen HPC

Three Steps

  1. Request GPU in job submission: --gres=gpu:1
  2. Activate your GPU-enabled conda environment: module load miniconda3 && conda activate pytorch_env (no pytorch module exists)
  3. Use framework normally; GPU automatically used

More details in subsequent episodes.

Callout

Before Requesting GPU Time

GPU time is expensive and limited. Always: 1. Test on CPU first with small data 2. Verify your code works before GPU submission 3. Estimate GPU benefits for your workload 4. Check if GPU will help (not all code benefits equally)

This saves GPU allocation for researchers who truly need it.

Challenge

Challenge: GPU or CPU?

For each of the following computational tasks, decide whether it is better suited for GPU or CPU execution. Briefly explain your reasoning.

  1. Multiplying two 10,000 x 10,000 matrices
  2. Parsing a 500 MB CSV file line by line
  3. Training a convolutional neural network on 1 million images
  4. Sorting a list of 100 integers
  5. Applying a 3x3 convolution filter across a 4K image
  6. Performing a recursive depth-first search on a tree with complex branching logic

  1. Matrix multiplication – GPU. Matrix multiplication is a massively parallel operation (each output element is an independent dot product). GPUs with thousands of cores handle this 10-100x faster than CPUs.

  2. CSV parsing – CPU. Line-by-line file parsing is inherently sequential with complex string logic and branching. GPUs provide no benefit here.

  3. CNN training – GPU. Neural network training involves repeated matrix multiplications, convolutions, and gradient computations across large batches – exactly what GPUs excel at (20-50x speedup).

  4. Sorting 100 integers – CPU. The dataset is tiny. The overhead of transferring data to the GPU would exceed any computational benefit. A CPU sorts this in microseconds.

  5. Image convolution – GPU. Convolution applies the same operation independently to every pixel neighborhood – a textbook data-parallel workload ideal for GPU.

  6. Recursive tree search – CPU. Recursive algorithms with irregular branching and random memory access patterns map poorly to GPU architecture. CPUs handle complex control flow far more efficiently.

Key Points
  • GPUs excel at parallel computation for thousands of operations
  • Sagehen has 10 GPUs across three types: A100, L40S, and RTX PRO 6000
  • Deep learning, simulations, and data processing benefit most
  • Framework libraries (PyTorch, TensorFlow) handle GPU automatically
  • Not all workloads benefit; profile before investing GPU time

Content from Sagehen HPC GPU Hardware Configuration

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What GPU nodes exist on Sagehen?
  • How do you check GPU availability?
  • What are GPU memory and compute specifications?
  • How do you select specific GPU types?

Objectives

  • Understand Sagehen GPU inventory
  • Check available GPU resources
  • Select appropriate GPUs for workload
  • Understand GPU memory management

Sagehen HPC GPU Nodes

Sagehen has 10 GPUs across multiple nodes (confirmed by Andrew Wilson, May 2026): 4× A100 (80 GB), 4× L40S (48 GB), 2× RTX PRO 6000 (96 GB).

Sagehen has multiple physical GPU nodes (compute nodes that contain GPU cards). The total number of GPU cards across all nodes is 10.

Available GPU Types

Sagehen provides three tiers of GPU hardware to support a range of research workloads:

  • NVIDIA A100 (80 GB HBM2e, 4 cards): Highest performance, ideal for large models and AI research
  • NVIDIA L40S (48 GB GDDR6, 4 cards): Excellent balance for most deep learning workflows
  • NVIDIA RTX PRO 6000 Blackwell (96 GB GDDR7 ECC, 2 cards): Blackwell generation (compute capability 12.0); the largest GPU memory on Sagehen — very large models, memory-heavy simulation, and professional rendering/visualization

Use sinfo -p gpu --Format=NodeList,Gres,GresUsed to check current availability.

GPU Capabilities Summary

Feature A100 L40S RTX PRO 6000
Memory 80 GB HBM2e 48 GB GDDR6 96 GB GDDR7 ECC
Architecture Ampere Ada Lovelace Blackwell
Compute Capability 8.0 8.9 12.0
Best for Large models, AI research Deep learning, prototyping, professional Largest models, memory-heavy work
Tensor Cores Yes (3rd gen) Yes (4th gen) Yes (5th gen)
Performance Tier Highest Very High Highest
Quantity on Sagehen 4 4 2

For detailed specifications, see NVIDIA’s official documentation for each GPU model. Run nvidia-smi on a GPU node to see the exact hardware available to your job.

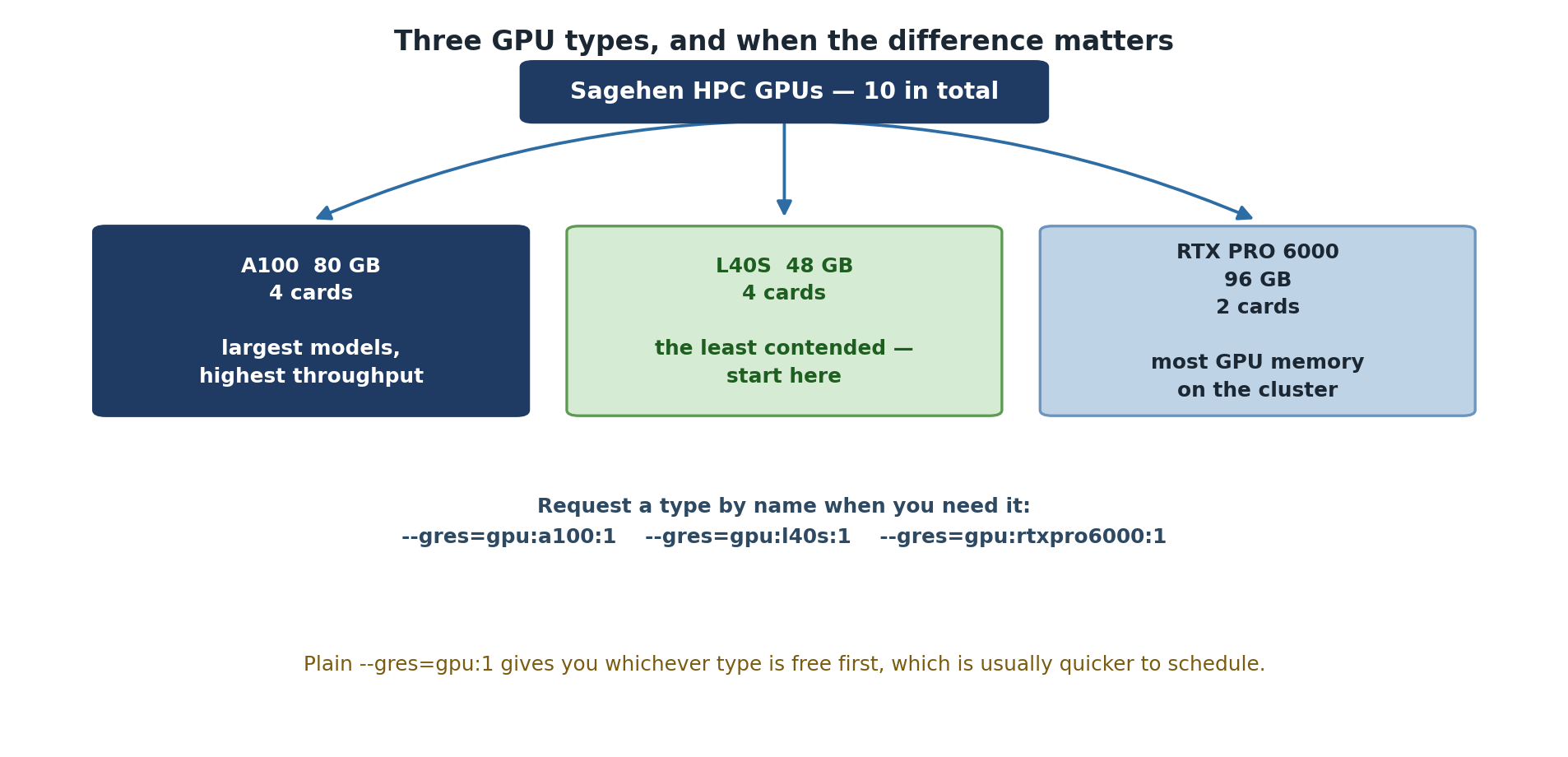

Sagehen HPC has ten GPUs in three types. Four A100 cards with 80 GB, best for the largest models and highest throughput. Four L40S cards with 48 GB, the least contended and the place to start. Two RTX PRO 6000 cards with 96 GB, the most GPU memory on the cluster. A note gives the syntax for requesting a type by name, and observes that a plain --gres=gpu:1 request gives whichever type is free first and is usually quicker to schedule.
Ten cards, three types, and only two of them are scarce.
Callout

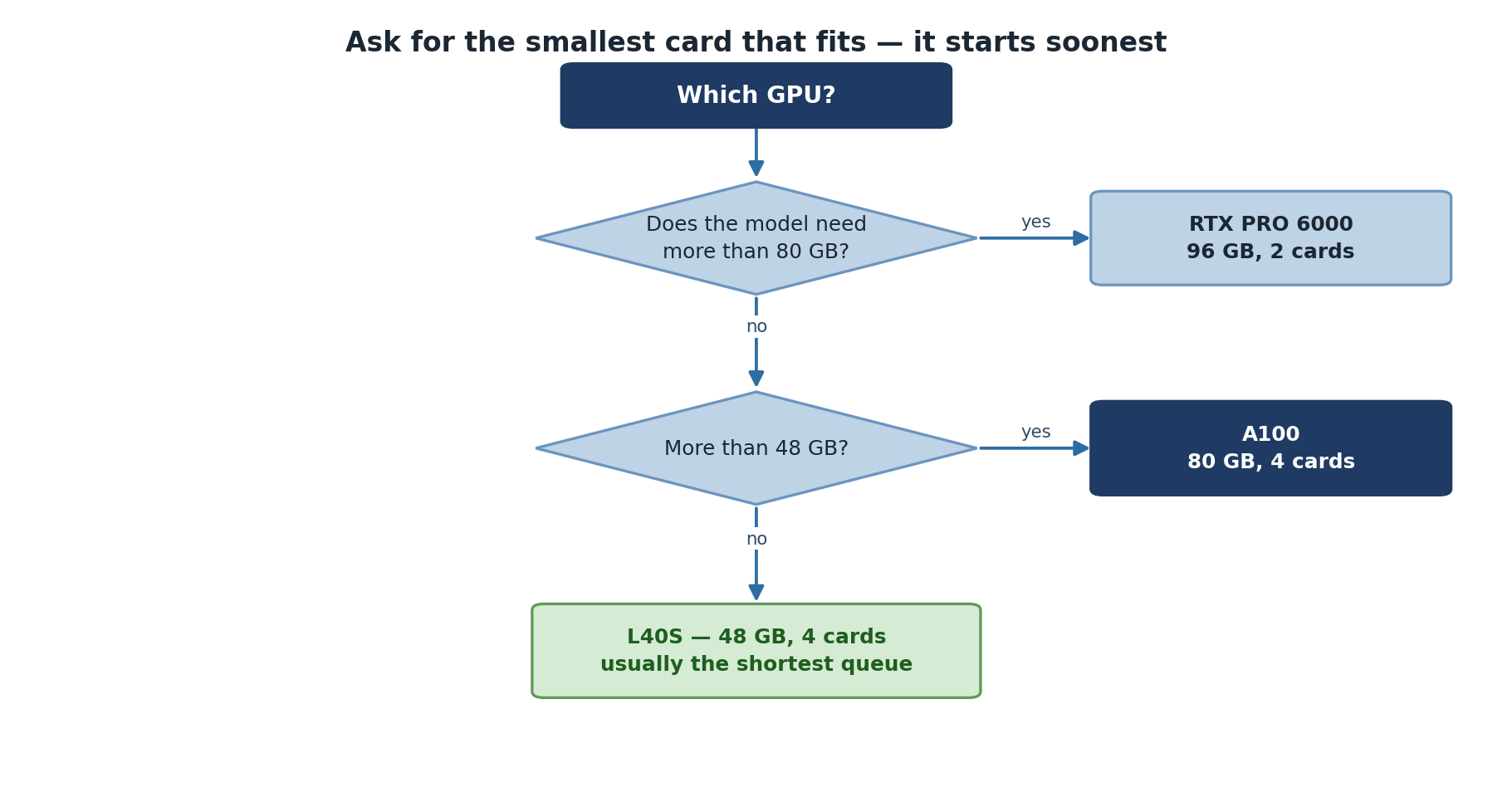

GPU Selection Guide

Choose your GPU based on model requirements: - Very large models (>80 GB): RTX PRO 6000 (96 GB) — the only cards that go beyond 80 GB - Large models (48–80 GB): A100 (80 GB) or RTX PRO 6000; pick by queue availability - Mid-large models (up to 48 GB): L40S or A100 - Standard deep learning: L40S or A100 for faster training; RTX PRO 6000 if you need ECC memory or huge headroom - Prototyping and quick iteration: L40S — the least contended cards, and 48 GB is ample for small models - Memory unsure: Start with L40S (48 GB middle ground)

Monitor GPU memory during development with nvidia-smi to ensure your model fits.

Checking GPU Availability

Using nvidia-smi

BASH

# Check current GPU status
nvidia-smi

# Output shows available GPUs if on GPU node

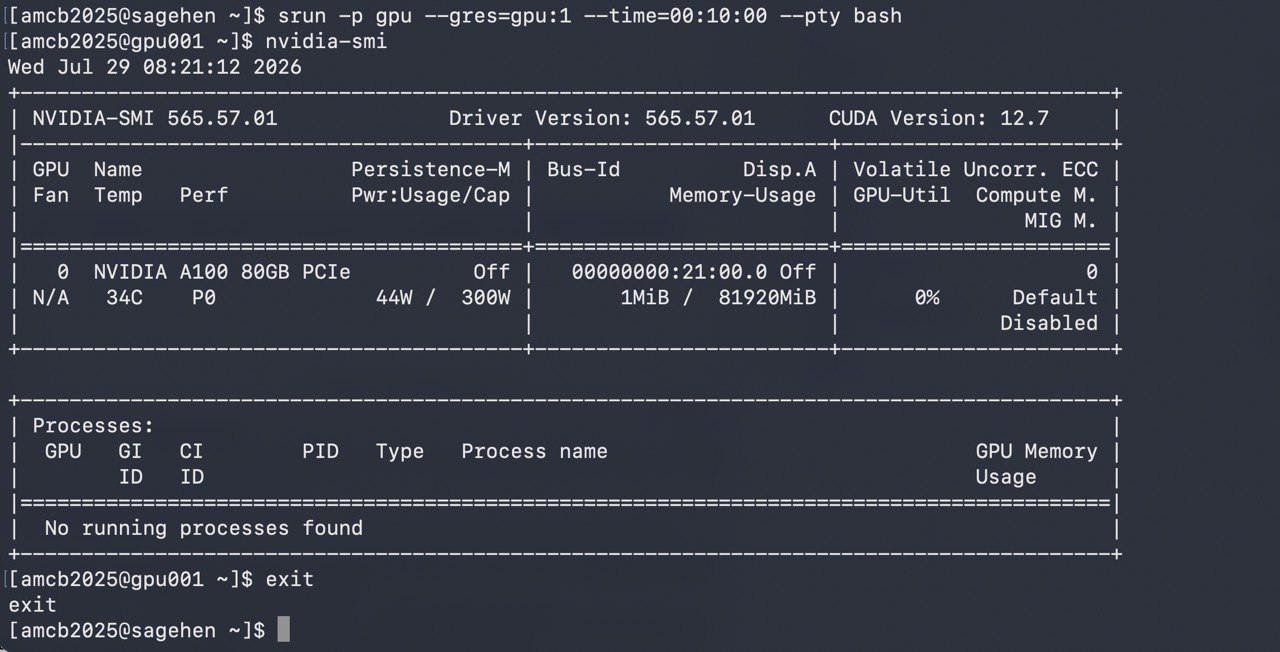

Terminal showing an interactive GPU session requested with srun on the gpu partition. The nvidia-smi table reports one NVIDIA A100 80GB PCIe GPU with almost no memory in use and zero percent utilization, driver version 565.57.01 and CUDA version 12.7, and the user then exits back to the login node.
An interactive srun session on gpu001: nvidia-smi confirms the allocated GPU — an A100 80GB PCIe (driver 565.57.01, CUDA 12.7).

Using SLURM Commands

BASH

# List GPU nodes and availability
sinfo -N -p gpu --Format=NodeList,CPUs,Memory,Features,Available

# Check specific node
scontrol show node <gpu-node>

# Check GPU-specific info
sinfo --Format=NodeList,Gres,GresUsed

In Job Script

BASH

#!/bin/bash
#SBATCH --partition=gpu
#SBATCH --gres=gpu:a100:1

# Inside job, check what was allocated
nvidia-smi
echo "GPUs available: $CUDA_VISIBLE_DEVICES"

Requesting Specific GPUs

Basic GPU Request

BASH

#SBATCH --gres=gpu:1

Requests any available GPU (auto-selected).

Request Specific Type

BASH

#SBATCH --gres=gpu:a100:1      # Request one A100
#SBATCH --gres=gpu:l40s:2      # Request two L40S
#SBATCH --gres=gpu:rtxpro6000:1  # Request one RTX PRO 6000 (verify the exact GRES name: sinfo -o '%N %G')

Request by Specifications

BASH

#SBATCH --gres=gpu:l40s:1      # Balanced general-purpose GPU
#SBATCH --gres=gpu:a100:1      # Latest high-end GPU
#SBATCH --constraint=GPU_l40s  # Alternative constraint syntax

Multiple GPU Request

BASH

#SBATCH --gres=gpu:4           # Request 4 GPUs (any type)
#SBATCH --gres=gpu:a100:2      # Request 2 A100s specifically

Limits: Per-account GPU limits apply (contact for current limits).

GPU Memory Considerations

Memory Requirements

Choose GPU based on model size:

Very large models (48–96 GB): use A100 (80 GB HBM2e) or RTX PRO 6000 (96 GB GDDR7 — the largest single-GPU memory on Sagehen). For models larger than 96 GB, use model parallelism, gradient checkpointing, mixed-precision training, or DeepSpeed/FSDP to fit larger models across multiple GPUs. - ResNet-3B parameters - Large language models - Large transformer models

Large/medium models (40–48 GB): L40S or A100 (48 GB+ cards) - Standard deep learning models - Fine-tuning mid-sized models - Computer vision models needing high memory - Use RTX PRO 6000 if your workflow benefits from ECC memory or needs headroom to grow

Medium models (20–40 GB): L40S or A100 - Standard deep learning models - Fine-tuning large models - Computer vision models

Small models (under 20 GB): L40S — the smallest card on Sagehen is still 48 GB - Research models - Small networks - Training on smaller datasets

Checking Memory Usage

In running job:

BASH

nvidia-smi --query-gpu=memory.used,memory.total --format=csv

In Python:

PYTHON

import torch
print(f"Allocated: {torch.cuda.memory_allocated()} bytes")
print(f"Cached: {torch.cuda.memory_reserved()} bytes")

Memory Management Tips

  1. Load model to GPU: model.cuda()
  2. Load data to GPU: data = data.cuda()
  3. Check memory: nvidia-smi
  4. If OOM: Use smaller batch size
  5. Clear memory: del variable; torch.cuda.empty_cache()

Cost-Benefit Analysis

When A100 is Worth It

  • Model > 40GB
  • Research requiring tensor cores
  • Multi-GPU training
  • Production deployment

When L40S is Sufficient

  • Standard deep learning (20-48GB models)
  • General research
  • Training small and medium networks — 48 GB leaves plenty of headroom
  • Research prototyping and quick experiments
  • Cost-effective for most users, and usually the shortest queue

When the RTX PRO 6000 is the Right Choice

  • Models or datasets needing more than 80 GB of GPU memory (nothing else on Sagehen goes this big)
  • 40–80 GB workloads when the A100 queue is long
  • Workflows that benefit from ECC memory (numerical stability)
  • Professional rendering and scientific visualization
  • Cutting-edge Blackwell features (compute capability 12.0, 5th-gen Tensor Cores)

Node Selection Strategy

BASH

# For cost-effective general work
#SBATCH --gres=gpu:l40s:1

# For memory-heavy models (48–80 GB)
#SBATCH --gres=gpu:a100:1

# For the very largest models (up to 96 GB)
#SBATCH --gres=gpu:rtxpro6000:1  # verify exact GRES name: sinfo -o '%N %G'

# For quick testing
#SBATCH --gres=gpu:l40s:1

# For production multi-GPU training
#SBATCH --gres=gpu:a100:2
Challenge

Challenge: Choose Your GPU

For each research scenario below, recommend the best Sagehen GPU (A100 80 GB, L40S 48 GB, or RTX PRO 6000 96 GB) and explain your reasoning.

Scenario A: A student is fine-tuning a large language model that requires 60 GB of GPU memory during training.

Scenario B: A researcher is prototyping a small image classifier with a dataset of 1,000 images. They expect the model to use about 4 GB of GPU memory and want results quickly for iteration.

Scenario C: A lab group is training a computer vision model (ResNet-50) that uses about 25 GB of GPU memory and will run for several days.

Scenario D: A computational chemist needs to run a numerical simulation that fits in roughly 40 GB of GPU memory and is sensitive to bit-flip errors. The A100 queue is currently several days deep.

Scenario A: A100 (80 GB) or RTX PRO 6000 (96 GB) The model requires 60 GB of GPU memory, which exceeds the L40S’s 48 GB. Both the A100 (80 GB HBM2e) and the RTX PRO 6000 (96 GB GDDR7) fit the workload — pick whichever queue is shorter. The A100’s HBM bandwidth favours training throughput; the RTX PRO 6000 leaves more memory headroom.

Scenario B: L40S (48 GB) The model only needs about 4 GB, so it fits trivially on an L40S. The L40S cards are also the least contended on Sagehen, so queue waits are typically shortest — exactly what you want when iterating quickly. Tying up an A100 or RTX PRO 6000 for a 4 GB job would waste the cards that large models depend on.

Scenario C: L40S (48 GB) The 25 GB memory requirement fits comfortably on the L40S (48 GB), with excellent compute throughput for a multi-day training run. This leaves the A100s and RTX PRO 6000s free for jobs that genuinely need more than 48 GB.

Scenario D: RTX PRO 6000 (96 GB) The 40 GB workload fits easily, and the RTX PRO 6000’s ECC GDDR7 protects against bit-flip-induced numerical errors during a long simulation — exactly what these cards’ ECC is for. The A100 also offers ECC but has the deep queue; the RTX PRO 6000 delivers the ECC protection with plenty of headroom.

Key Points
  • Sagehen has 10 GPUs across three types: A100, L40S, and RTX PRO 6000
  • RTX PRO 6000: Largest memory on Sagehen (96 GB GDDR7 ECC, Blackwell)
  • A100: 80 GB HBM2e, best training throughput for large models
  • L40S: Best value for most deep learning at 48 GB
  • Use –gres=gpu:type:count to request specific GPUs
  • Monitor memory usage; request right-sized GPU
  • Consider cost-benefit and queue depth when choosing GPU type

Content from Requesting and Allocating GPUs

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do you request GPUs in SLURM jobs?
  • What are GPU job parameters?
  • How do you run interactive GPU sessions?
  • How do you allocate multiple GPUs?

Objectives

  • Submit GPU jobs with correct parameters
  • Launch interactive GPU sessions
  • Request multiple GPUs when needed
  • Understand GPU partition and time limits

GPU Job Submission Basics

Simple GPU Job

BASH

#!/bin/bash
#SBATCH --job-name=gpu_test
#SBATCH --partition=gpu
#SBATCH --gres=gpu:1
#SBATCH --time=01:00:00
#SBATCH --output=gpu_%j.log

module load miniconda3
conda activate pytorch_env
python3 train_model.py

Key options: - --partition=gpu: Must request GPU partition - --gres=gpu:1: Number and type of GPUs - --time=01:00:00: Max 720 hours per job

Multi-GPU Job

BASH

#!/bin/bash
#SBATCH --job-name=multi_gpu
#SBATCH --partition=gpu
#SBATCH --gres=gpu:2
#SBATCH --ntasks=2
#SBATCH --cpus-per-task=4
#SBATCH --time=02:00:00

module load miniconda3
conda activate pytorch_env
python3 -m torch.distributed.launch --nproc_per_node=2 train.py

GPU Type Selection

BASH

# Any GPU
#SBATCH --gres=gpu:1

# Specific type
#SBATCH --gres=gpu:a100:1
#SBATCH --gres=gpu:l40s:2
#SBATCH --gres=gpu:l40s:1
A decision tree for choosing a GPU. If the model needs more than 80 GB, use an RTX PRO 6000 with 96 GB, of which there are two. If it needs more than 48 GB, use an A100 with 80 GB, of which there are four. Otherwise use an L40S with 48 GB, of which there are four and which usually has the shortest queue.
Two questions about memory settle which card to ask for.

Interactive GPU Sessions

Launch Interactive GPU Shell

BASH

srun -p gpu --gres=gpu:1 --time=01:00:00 --pty bash -l

Now in interactive shell with GPU access:

BASH

nvidia-smi  # Check GPU
python3     # Start Python with GPU

Jupyter on GPU

Through OnDemand: 1. Click Interactive Apps → Jupyter Notebook 2. Select GPU in launcher 3. Click Launch 4. Jupyter starts with GPU access

In job script:

BASH

jupyter notebook --ip=0.0.0.0 --port=8888 --no-browser

Memory and Core Allocation

CPU Allocation

BASH

#SBATCH --ntasks=1
#SBATCH --cpus-per-task=4

For each GPU, allocate 4-8 CPU cores for: - Data loading - Preprocessing - I/O operations

Callout

Why CPU Cores Matter for GPU Jobs

Under-allocating CPUs creates a bottleneck: - GPU sits idle waiting for data - Data loading becomes the limiting factor - Job runs slow despite having GPU

Rule of thumb: 4-8 CPU cores per GPU for efficient data feeding. Monitor GPU utilization with nvidia-smi to verify CPU isn’t bottlenecking.

Memory Allocation

BASH

#SBATCH --mem=32G  # Total memory needed

Or per CPU:

BASH

#SBATCH --mem-per-cpu=8G

Recommendation

Per GPU, request: - 4-8 CPU cores - 8-16 GB memory - 1-4 hour time limit for testing

Time Limits

GPU partition allows: - Max 720 hours (30 days) per job - Typical: 1-8 hours for training - Recommended: Start with 1 hour for testing

BASH

# Test run
#SBATCH --time=00:30:00

# Standard training
#SBATCH --time=04:00:00

# Long training
#SBATCH --time=24:00:00

Batch Scripts with Setup

Complete example:

BASH

#!/bin/bash
#SBATCH --job-name=deep_learning
#SBATCH --partition=gpu
#SBATCH --gres=gpu:a100:1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=8
#SBATCH --mem=32G
#SBATCH --time=04:00:00
#SBATCH --output=%x_%j.log
#SBATCH --error=%x_%j.err

# Setup environment
module purge
module load miniconda3 cuda/12.2.1
conda activate pytorch_env

cd /bigdata/lab/<labname>/project

# Check GPU
echo "GPU allocation:"
nvidia-smi

# Run training
python3 train.py --gpu 0 --batch-size 32 --epochs 100

echo "Training complete"
Challenge

Challenge: Write a GPU Job Script

Write a complete SLURM batch script that meets the following requirements:

  • Job name: pytorch_training
  • GPUs: 2 NVIDIA A100s
  • Time limit: 4 hours
  • Memory: 64 GB
  • CPU cores: 8 per task (for data loading)
  • Software: Load the cuda/12.2.1 module and activate your pytorch_env conda environment
  • Command: Run python3 train.py --distributed
  • Output: Log file named with the job name and job ID

BASH

#!/bin/bash
#SBATCH --job-name=pytorch_training
#SBATCH --partition=gpu
#SBATCH --gres=gpu:a100:2
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=8
#SBATCH --mem=64G
#SBATCH --time=04:00:00
#SBATCH --output=%x_%j.log
#SBATCH --error=%x_%j.err

# Load required modules
module purge
module load miniconda3 cuda/12.2.1
conda activate pytorch_env

# Verify GPU allocation
echo "Allocated GPUs:"
nvidia-smi

# Run distributed training
python3 train.py --distributed

echo "Training complete"

Key points: - --partition=gpu is required for GPU access on Sagehen. - --gres=gpu:a100:2 requests exactly 2 A100 GPUs. - --cpus-per-task=8 provides enough CPU cores for parallel data loading. - --mem=64G allocates 64 GB of system RAM (separate from GPU memory). - %x expands to the job name and %j to the job ID in output filenames.

Key Points
  • GPU jobs require: –partition=gpu and –gres=gpu:N
  • Request matching CPUs and memory for your GPU
  • Max 720 hours per job; typical 1-8 hours
  • Interactive sessions available for testing
  • Multiple GPUs require distributed training setup

Content from GPU Software Setup and Modules

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What modules are available for GPU computing?
  • How do you install GPU-enabled software?
  • What CUDA versions exist?
  • How do you manage GPU software environments?

Objectives

  • Load appropriate GPU software modules
  • Understand CUDA, cuDNN, and GPU libraries
  • Install conda environments with GPU support
  • Verify GPU software works correctly

Available GPU Modules

BASH

module avail | grep -i gpu
module avail | grep -i cuda
module avail | grep -i pytorch

Typical modules:

cuda/11.8.0
cuda/12.0.0
cuda/12.2.1 (D)
Four steps. Get a GPU with srun on the gpu partition. Check the card is visible with nvidia-smi. Check the framework can see it by printing torch.cuda.is_available(). A True result means you are ready. A warning explains that False on a GPU node almost always means a CPU-only PyTorch build or an unactivated conda environment, rather than a problem with the card.
Three commands, in order, before you trust a GPU job.

Loading GPU Software

PyTorch

BASH

module load miniconda3   # PyTorch comes from conda: conda activate pytorch_env

python3 << 'EOF'
import torch
print(torch.__version__)
print(torch.cuda.is_available())
print(torch.cuda.get_device_name(0))
EOF

TensorFlow

BASH

module load miniconda3
conda activate tf_env   # TensorFlow conda env -- no tensorflow module exists

python3 << 'EOF'
import tensorflow as tf
print(tf.__version__)
print(tf.config.list_physical_devices('GPU'))
EOF

CUDA

BASH

module load cuda/12.2.1

nvcc --version  # Verify CUDA compiler

Creating GPU Conda Environment

BASH

# Load conda
module load miniconda3

# Create environment with GPU PyTorch
conda create -n gpu_env pytorch::pytorch pytorch::pytorch-cuda=12.1 -c pytorch -c nvidia

# Activate
conda activate gpu_env

# Verify
python3 -c "import torch; print(torch.cuda.is_available())"
Callout

Keep Environments Reproducible

When creating GPU environments: 1. Specify exact CUDA version to match cluster 2. Pin PyTorch/TensorFlow versions 3. Export environment: conda env export > gpu_env.yml 4. Share with team for consistent setup

This prevents “works on my machine” issues with GPU code.

Verifying GPU Setup

Test script (test_gpu.py):

PYTHON

import torch
import tensorflow as tf

# PyTorch
print("PyTorch version:", torch.__version__)
print("CUDA available:", torch.cuda.is_available())
if torch.cuda.is_available():
    print("GPU:", torch.cuda.get_device_name(0))
    x = torch.randn(1000, 1000).cuda()
    y = torch.mm(x, x)
    print("PyTorch GPU test: PASSED")

# TensorFlow
print("\nTensorFlow version:", tf.__version__)
gpus = tf.config.list_physical_devices('GPU')
print("GPUs found:", len(gpus))
if gpus:
    print("TensorFlow GPU test: PASSED")

Run on GPU:

BASH

srun -p gpu --gres=gpu:1 --time=00:10:00 python3 test_gpu.py

Advanced: Custom CUDA Code

If you need custom CUDA:

BASH

module load cuda/12.2.1

# Compile CUDA kernel
nvcc -o kernel kernel.cu -lm

# Run
./kernel

Troubleshooting GPU Software

Module not found

BASH

# Search available modules
module avail pytorch

# Load closest version
module load miniconda3   # PyTorch comes from conda: conda activate pytorch_env

“CUDA out of memory”

PYTHON

# Reduce batch size
batch_size = 16  # Instead of 128

# Clear cache
torch.cuda.empty_cache()

“No GPU found”

Check job allocation:

BASH

# Inside job
nvidia-smi  # Shows allocated GPU
env | grep CUDA  # Shows CUDA settings
Challenge

Challenge: Troubleshoot GPU Setup

You encounter the following three error messages while trying to run GPU code on Sagehen. For each one, diagnose what is wrong and explain how to fix it.

Error 1:

RuntimeError: CUDA error: no CUDA-capable device is detected

Error 2:

RuntimeError: The NVIDIA driver on your system is too old (found version 11060).
The minimum required CUDA toolkit version is 12.1.

Error 3:

PYTHON

>>> import torch
>>> print(torch.cuda.is_available())
False
>>> print(torch.cuda.device_count())
0

(No error message, but GPU is not visible to PyTorch.)

Error 1: “no CUDA-capable device is detected”

Diagnosis: The job is not running on a GPU node. This happens when you forget to include --partition=gpu and --gres=gpu:N in your SLURM submission, or when you run GPU code on the login node.

Fix: Submit the job with GPU resources:

BASH

#SBATCH --partition=gpu
#SBATCH --gres=gpu:1

Never run GPU code directly on the login node.

Error 2: “NVIDIA driver too old”

Diagnosis: The PyTorch build expects a newer CUDA than the node’s driver supports. Sagehen HPC’s GPU nodes report CUDA 12.7 in nvidia-smi, so this is rare here — but it happens if you install a PyTorch built against a CUDA newer than that. Note the number in nvidia-smi is the driver’s capability, which is independent of which cuda/ toolkit module you have loaded.

Fix: Load a compatible CUDA module before running your code:

BASH

module purge
module load miniconda3 cuda/12.2.1
conda activate pytorch_env

Ensure the CUDA toolkit version matches what your PyTorch installation requires.

Error 3: GPU not visible to PyTorch

Diagnosis: PyTorch was installed without GPU/CUDA support (a CPU-only build), or the wrong module/conda environment is loaded. The CPU-only version of PyTorch will always report cuda.is_available() = False even on a GPU node.

Fix: Make sure your environment has the GPU-enabled PyTorch build:

BASH

module load miniconda3   # PyTorch comes from conda: conda activate pytorch_env

Or if using conda, install the CUDA-enabled version:

BASH

conda install pytorch pytorch-cuda=12.1 -c pytorch -c nvidia

Verify with: python3 -c "import torch; print(torch.cuda.is_available())"

Key Points
  • Load GPU modules: pytorch, tensorflow, cuda
  • CUDA toolkit handles GPU computation
  • Create conda environments for reproducibility
  • Verify GPU availability before running jobs
  • Test GPU setup with simple benchmark script

Content from Training Models with PyTorch and TensorFlow

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do you move models to GPU in PyTorch?
  • How does TensorFlow handle GPU automatically?
  • What are best practices for GPU training?
  • How do you optimize GPU memory usage?

Objectives

  • Train models efficiently on GPU
  • Use distributed training for multi-GPU
  • Monitor GPU usage during training
  • Optimize memory and performance

PyTorch GPU Training

Basic GPU Training

PYTHON

import torch
import torch.nn as nn

# Move model to GPU
model = MyModel()
model = model.cuda()

# Create optimizer
optimizer = torch.optim.Adam(model.parameters())

# Training loop
for epoch in range(10):
    for batch_data, batch_labels in train_loader:
        # Move data to GPU
        batch_data = batch_data.cuda()
        batch_labels = batch_labels.cuda()

        # Forward pass
        outputs = model(batch_data)
        loss = criterion(outputs, batch_labels)

        # Backward pass
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        print(f"Epoch {epoch}, Loss: {loss.item()}")

Multi-GPU Training

PYTHON

import torch.nn as nn
from torch.nn import DataParallel

# Distribute across multiple GPUs
model = DataParallel(model)
model = model.cuda()

# Rest of training loop unchanged

TensorFlow GPU Training

Automatic GPU Detection

PYTHON

import tensorflow as tf

# TensorFlow automatically uses GPU
model = tf.keras.Sequential([...])

# Check GPU
print(tf.config.list_physical_devices('GPU'))

# Train (uses GPU automatically)
model.fit(train_data, train_labels, epochs=10)

Manual GPU Placement

PYTHON

with tf.device('/GPU:0'):
    model = tf.keras.Sequential([...])
    model.fit(train_data, train_labels)

Monitoring GPU Usage

During Training

In separate terminal:

BASH

watch -n 1 nvidia-smi

Or in Python:

PYTHON

import subprocess

def print_gpu_info():
    result = subprocess.run(['nvidia-smi', '--query-gpu=name,memory.used,memory.total',
                            '--format=csv'], capture_output=True, text=True)
    print(result.stdout)

Memory Optimization

Batch Size Selection

PYTHON

# Start small
batch_size = 16
# Check memory: nvidia-smi
# Increase if GPU has headroom
batch_size = 64
Callout

Finding Optimal Batch Size

Larger batch sizes = better GPU utilization but more memory: 1. Start with batch_size = 16 or 32 2. Run nvidia-smi during training 3. If GPU memory > 80% used, batch size is good 4. If GPU memory < 50% used, increase batch size 5. If CUDA out of memory, reduce batch size

This simple loop finds the sweet spot for your hardware.

Gradient Checkpointing (PyTorch)

Reduces memory for large models:

PYTHON

from torch.utils.checkpoint import checkpoint

class Model(nn.Module):
    def forward(self, x):
        x = checkpoint(self.layer1, x)
        x = checkpoint(self.layer2, x)
        return x

Mixed Precision Training

Faster, less memory:

PYTHON

from torch.cuda.amp import autocast, GradScaler

scaler = GradScaler()
for data, labels in train_loader:
    with autocast():
        outputs = model(data)
        loss = criterion(outputs, labels)
    scaler.scale(loss).backward()
    scaler.step(optimizer)
    scaler.update()
Challenge

Challenge: Fix the OOM Error

The following training script crashes with RuntimeError: CUDA out of memory on an L40S (48GB) GPU. Identify three changes you would make to reduce GPU memory usage, and show the modified code for each.

PYTHON

import torch
import torch.nn as nn
from torch.utils.data import DataLoader

model = LargeResNet().cuda()
optimizer = torch.optim.Adam(model.parameters())
criterion = nn.CrossEntropyLoss()

train_loader = DataLoader(dataset, batch_size=256, num_workers=1)

for epoch in range(100):
    for data, labels in train_loader:
        data = data.cuda()
        labels = labels.cuda()

        outputs = model(data)
        loss = criterion(outputs, labels)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

Fix 1: Reduce batch size

A batch size of 256 for a large model can exceed GPU memory. Cut it down:

PYTHON

train_loader = DataLoader(dataset, batch_size=32, num_workers=1)

Fix 2: Enable mixed precision training

Use automatic mixed precision (AMP) to perform computations in float16 where safe, roughly halving memory usage:

PYTHON

from torch.cuda.amp import autocast, GradScaler

scaler = GradScaler()

for epoch in range(100):
    for data, labels in train_loader:
        data = data.cuda()
        labels = labels.cuda()

        with autocast():
            outputs = model(data)
            loss = criterion(outputs, labels)

        optimizer.zero_grad()
        scaler.scale(loss).backward()
        scaler.step(optimizer)
        scaler.update()

Fix 3: Use gradient checkpointing

Trade compute time for memory by recomputing intermediate activations during the backward pass instead of storing them all:

PYTHON

from torch.utils.checkpoint import checkpoint_sequential

class LargeResNet(nn.Module):
    def forward(self, x):
        # Instead of: x = self.layers(x)
        x = checkpoint_sequential(self.layers, segments=4, input=x)
        return x

Each fix independently reduces GPU memory. Combining all three – smaller batch size, mixed precision, and gradient checkpointing – can dramatically reduce memory requirements, often enough to fit a model that was previously too large.

Key Points
  • Move models to GPU: model.cuda()
  • Move data to GPU: data.cuda()
  • TensorFlow automatically uses GPU
  • Monitor with nvidia-smi
  • Optimize batch size for memory
  • Use gradient checkpointing for large models
  • Consider mixed precision for speed

Content from Monitoring and Optimization

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do you monitor GPU performance?
  • What metrics matter for GPU workloads?
  • How do you profile GPU code?
  • What optimizations improve performance?

Objectives

  • Monitor GPU utilization and memory
  • Identify performance bottlenecks
  • Profile GPU code efficiently
  • Implement GPU optimizations

Monitoring GPU Resources

nvidia-smi Command

BASH

# One-time check
nvidia-smi

# Continuous monitoring
watch -n 1 nvidia-smi

# Check specific GPU
nvidia-smi --id=0

# Memory and utilization format
nvidia-smi --query-gpu=name,utilization.gpu,memory.used,memory.total --format=csv

Key Metrics

  • GPU Utilization: Percentage of GPU computing (target: 80-100%)
  • Memory Used: Current GPU memory usage
  • Memory Total: Maximum available GPU memory
  • Temperature: GPU heat (should be <80°C)
  • Power Usage: Watts consumed

In Python

PYTHON

import torch

def print_gpu_usage():
    print(f"GPU Memory Allocated: {torch.cuda.memory_allocated() / 1e9:.2f} GB")
    print(f"GPU Memory Cached: {torch.cuda.memory_reserved() / 1e9:.2f} GB")
    print(f"GPU Memory Free: {(torch.cuda.get_device_properties(0).total_memory - torch.cuda.memory_allocated()) / 1e9:.2f} GB")

print_gpu_usage()

Performance Profiling

PyTorch Profiler

PYTHON

from torch.profiler import profile, record_function, ProfilerActivity

with profile(activities=[ProfilerActivity.CPU, ProfilerActivity.CUDA], record_shapes=True) as prof:
    # Your training code
    model(input_data)

print(prof.key_averages().table(sort_by="cuda_time_total"))

TensorFlow Profiler

PYTHON

import tensorflow as tf

# Profile a training step
tf.profiler.experimental.start('/tmp/logdir')
# Training code
tf.profiler.experimental.stop()

Optimization Techniques

1. Increase Batch Size

PYTHON

# Memory limited? Check GPU with nvidia-smi
batch_size = 128  # Larger batch = better GPU utilization
dataloader = DataLoader(dataset, batch_size=batch_size)

2. Data Loading Optimization

PYTHON

# Efficient loading
dataloader = DataLoader(
    dataset,
    batch_size=64,
    num_workers=4,          # Parallel loading
    pin_memory=True,        # Fast CPU→GPU transfer
    prefetch_factor=2       # Prefetch next batch
)

3. Mixed Precision

PYTHON

from torch.cuda.amp import autocast
# Reduces memory, faster computation
with autocast():
    output = model(input)

4. Gradient Accumulation

PYTHON

# Train with large effective batch without huge memory
accumulation_steps = 4
for i, (data, labels) in enumerate(dataloader):
    outputs = model(data)
    loss = criterion(outputs, labels) / accumulation_steps
    loss.backward()

    if (i + 1) % accumulation_steps == 0:
        optimizer.step()
        optimizer.zero_grad()

Common Performance Issues

Low GPU Utilization

Causes: - Data loading is slow (CPU bottleneck) - Small batch size - I/O operations block computation

Solutions: - Increase num_workers in DataLoader - Larger batch size - Pin memory, prefetch data

Callout

GPU Utilization is the #1 Performance Indicator

If GPU utilization is below 50%, you’re wasting GPU resources:

Check with: nvidia-smi during training

If low utilization: 1. Look at CPU cores: are they maxed out? 2. Check num_workers in DataLoader 3. Profile with PyTorch profiler to find bottleneck 4. Increase batch size to feed GPU faster

High GPU utilization = money well spent on HPC allocation.

Out of Memory

Solutions: - Reduce batch size - Clear cache: torch.cuda.empty_cache() - Use gradient checkpointing - Use mixed precision - Check for memory leaks

Slow Training

Check: - Is GPU being used? (nvidia-smi) - What’s the GPU utilization percentage? - Is CPU saturating dataloader? - Are there synchronization points?

Challenge

Challenge: Diagnose Low Utilization

You run nvidia-smi during a PyTorch training job and see the following output:

+-----------------------------------------------------------------------------+
| NVIDIA-SMI 535.129.03   Driver Version: 535.129.03   CUDA Version: 12.2     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|===============================+======================+======================|
|   0  NVIDIA A100-SXM...  On   | 00000000:07:00.0 Off |                    0 |
| N/A   32C    P0    62W / 400W |  38420MiB / 81920MiB |      5%      Default |
+-------------------------------+----------------------+----------------------+

The GPU is only at 5% utilization despite the model using 38 GB of memory.

  1. What is the most likely cause of the low GPU utilization?
  2. What specific code change would you make to fix it?

1. Most likely cause: data loading bottleneck

The GPU has plenty of memory allocated (38 GB) but is sitting idle 95% of the time. This almost always means the GPU finishes each batch computation quickly, then waits for the CPU to load and preprocess the next batch. The data pipeline cannot keep up with the GPU.

2. Fix: increase DataLoader workers and enable pinned memory

The default DataLoader uses a single worker process (num_workers=0 or 1), which creates a serial bottleneck. Increase parallel workers and enable pin_memory for faster CPU-to-GPU transfers:

PYTHON

# Before (slow):
train_loader = DataLoader(dataset, batch_size=64, num_workers=1)

# After (fast):
train_loader = DataLoader(
    dataset,
    batch_size=64,
    num_workers=8,        # Parallel data loading processes
    pin_memory=True,      # Faster CPU-to-GPU memory transfer
    prefetch_factor=2     # Prefetch next batches while GPU computes
)

With these changes, multiple CPU workers load and preprocess batches in parallel while the GPU is computing, keeping the GPU fed with data. You should see GPU utilization rise to 80-100%.

A good rule of thumb is 4-8 CPU workers per GPU. Make sure your SLURM job requests enough CPU cores to match: --cpus-per-task=8.

Key Points
  • Use nvidia-smi to monitor GPU utilization and memory
  • Aim for 80-100% GPU utilization
  • Profile code to identify bottlenecks
  • Batch size, data loading, and precision affect performance
  • Monitor memory to avoid OOM errors

Content from GPU Etiquette and Best Practices

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • Why is GPU etiquette important?
  • How long can you run GPU jobs?
  • What are fair usage practices?
  • How do you share GPU resources?

Objectives

  • Understand GPU resource sharing
  • Practice fair usage of limited resources
  • Know time and resource limits
  • Implement GPU best practices

GPU Resource Limits

Per-User Limits

  • Max concurrent GPUs: Per-account limits apply
  • Max per job: Check current policy
  • Max time: 720 hours (30 days)
  • Queue priority: Fair-share based on usage

Cluster Limits

  • Total GPUs: Limited shared resource
  • Peak utilization: Usually >80%
  • High demand: Especially A100 and L40S

Fair Usage Practices

1. Request Appropriate Resources

BASH

# Not: 4x A100 80GB for testing
# Use L40S for testing

#SBATCH --gres=gpu:l40s:1  # For quick test
#SBATCH --time=00:30:00

2. Don’t Hog Resources

BASH

# Bad: Run job for 30 days when only 4 hours needed
#SBATCH --time=720:00:00

# Good: Request actual time needed
#SBATCH --time=04:00:00

3. Avoid Interactive Idle Sessions

BASH

# Don't do this:
srun -p gpu --gres=gpu:a100:1 --time=24:00:00 --pty bash
# ... leave running overnight

# Instead: Close when not using
exit  # Release GPU immediately
Callout

GPU Idle Time Costs Everyone

A single A100 left idle: - Costs ~$2-3 per hour in compute time - Blocks other researchers from using it - Wastes shared research budget

If you need a long session, use Jupyter (closes idle sessions) or batch jobs.

4. Batch Similar Jobs

Instead of:

BASH

# 100 separate 1-minute GPU jobs
for i in {1..100}; do
    sbatch job_$i.sh
done

Batch them:

BASH

# One job with 100 iterations
sbatch batch_job.sh

Monitoring Your Usage

Check how many GPUs you’re using:

BASH

squeue -u $USER | grep gpu
# Count running jobs with --gres=gpu

Check past usage:

BASH

sacct -u $USER --format=JobName,Partition,NodeList,GRES,State,Elapsed

Sharing GPU Nodes

Multiple users may run on same node. Be considerate: - Don’t monopolize node resources - Monitor your memory usage - Release GPUs immediately when done - Don’t interfere with others’ jobs

Best Practices Summary

  1. Test with small jobs first
    • Use L40S, small batch size
    • Run for 15-30 minutes
    • Verify code works
  2. Scale up incrementally
    • If test works, try larger GPU
    • Increase batch size gradually
    • Monitor memory usage
  3. Clean up after yourself
    • Delete temporary files
    • Exit interactive sessions
    • Cancel long jobs if not needed
  4. Share responsibility
    • Leave GPUs for others
    • Don’t submit unnecessary jobs
    • Report wasteful jobs you see
  5. Plan ahead
    • Submit jobs during off-peak (evening, weekends)
    • Peak: business hours, Monday-Friday
    • Expect longer waits during peaks

Example: Responsible Workflow

BASH

# Step 1: Test on CPU
python3 train.py --gpu false --epochs 1

# Step 2: Quick GPU test
sbatch --gres=gpu:l40s:1 --time=00:30:00 train.sh

# Step 3: If works, scale up
sbatch --gres=gpu:a100:1 --time=04:00:00 train.sh

# Step 4: Monitor and iterate
squeue -u $USER
Challenge

Challenge: Resource Audit

A system administrator shows you the following squeue output for a single user:

JOBID  PARTITION  NAME          USER    ST  TIME       NODES  GRES          TIME_LIMIT
44201  gpu        interactive   jsmith  R   18:32:05   1      gpu:a100:2    24:00:00
44215  gpu        train_v1      jsmith  R   06:15:22   1      gpu:a100:1    72:00:00
44216  gpu        test_small    jsmith  R   00:02:14   1      gpu:l40s:1    48:00:00
44220  gpu        debug_run     jsmith  R   00:45:30   1      gpu:l40s:1    24:00:00

The administrator also notes that nvidia-smi on the interactive job (44201) shows 0% GPU utilization, and the test_small job (44216) finishes its work in under 5 minutes.

  1. Identify three wasteful patterns in this user’s GPU usage.
  2. Suggest a specific improvement for each.

Wasteful pattern 1: Idle interactive session hogging 2 A100s

Job 44201 is an interactive session that has been running for over 18 hours with 0% GPU utilization, holding 2 A100 GPUs (the most in-demand resource on the cluster).

Improvement: Close interactive sessions when not actively using them. If the user needs occasional interactive access, request a single L40S for shorter periods:

BASH

srun -p gpu --gres=gpu:l40s:1 --time=02:00:00 --pty bash

Wasteful pattern 2: Massively over-allocated time limits

Job 44216 (test_small) has a 48-hour time limit but finishes in under 5 minutes. Job 44215 has a 72-hour limit. Over-requesting time blocks the scheduler from backfilling other users’ jobs into that slot.

Improvement: Set time limits close to actual need. For a 5-minute test job:

BASH

#SBATCH --time=00:30:00   # 30 minutes is plenty for a quick test

Wasteful pattern 3: Using premium GPUs for small/debug workloads

Job 44216 uses an L40S (48GB) for a small test, and job 44220 could potentially be consolidated. Small tests and debugging do not need high-end GPUs.

Improvement: Use L40S for testing and debugging, reserve A100 and RTX PRO 6000 for production training runs that actually need the memory and compute:

BASH

# For testing
#SBATCH --gres=gpu:l40s:1
#SBATCH --time=00:30:00

# Only scale up when the code is verified
#SBATCH --gres=gpu:a100:1
#SBATCH --time=04:00:00

Overall, this user is consuming 4 GPUs (including 3 A100s) simultaneously, most of which are idle or over-provisioned. Right-sizing would free resources for other researchers.

Key Points
  • Sagehen HPC has limited GPUs; fair sharing is essential
  • Request appropriate GPU type for your workload
  • Don’t monopolize GPUs or leave idle
  • Test on L40S before scaling to A100
  • Clean up after jobs complete
  • Monitor your usage with squeue
  • Respect other users’ resource needs
