Advanced Make Patterns

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What are pattern rules and automatic variables in Make?
  • How do I use Make variables effectively?
  • When should I use Make vs. other workflow tools?
  • How do I debug Makefiles?

Objectives

  • Use Make variables for DRY (Don’t Repeat Yourself) code
  • Apply pattern rules and automatic variables for complex pipelines
  • Debug common Makefile errors
  • Understand when to use Make vs. other workflow tools

Pattern Rules and Automatic Variables

For complex projects with many similar steps, use pattern rules:

MAKEFILE

# Convert all CSV files to JSON
%.json: %.csv
	python src/csv_to_json.py $< -o $@

This single rule means any .csv file can be converted to .json.

Special Variables

  • $@: The target
  • $<: The first prerequisite
  • $^: All prerequisites
  • $?: Prerequisites newer than target

Example:

MAKEFILE

# Merge multiple data files
data/merged.csv: data/raw/file1.csv data/raw/file2.csv src/merge.py
	python src/merge.py $^ -o $@

A Complete Advanced Makefile

MAKEFILE

# Reproducible analysis pipeline
# Usage: make              (run entire pipeline)
#        make clean        (clean results)
#        make help         (show help)

PYTHON := python3
SHELL := /bin/bash
.SHELLFLAGS := -eu -o pipefail -c

# Input and output files
RAW_DATA := data/raw/data.csv
PROCESSED_DATA := data/processed/data_clean.csv
ANALYSIS_RESULTS := results/analysis_results.csv
FIGURES := results/figures/main_plot.pdf results/figures/secondary.pdf
TABLES := results/tables/stats.txt

# Default target
.PHONY: all
all: $(FIGURES) $(TABLES)

# Download data (only if doesn't exist)
$(RAW_DATA):
	@echo "Downloading data..."
	mkdir -p data/raw
	$(PYTHON) src/download_data.py -o $@

# Clean data
$(PROCESSED_DATA): $(RAW_DATA) src/clean_data.py
	@echo "Cleaning data..."
	mkdir -p data/processed
	$(PYTHON) src/clean_data.py $< -o $@

# Run analysis
$(ANALYSIS_RESULTS): $(PROCESSED_DATA) src/analyze.py
	@echo "Running analysis..."
	mkdir -p results
	$(PYTHON) src/analyze.py $< -o $@

# Generate figures
$(FIGURES): $(ANALYSIS_RESULTS) src/visualize.py
	@echo "Generating figures..."
	mkdir -p results/figures
	$(PYTHON) src/visualize.py $< -o results/figures/

# Generate summary table
$(TABLES): $(ANALYSIS_RESULTS) src/summarize.py
	@echo "Generating summary table..."
	mkdir -p results/tables
	$(PYTHON) src/summarize.py $< -o $@

# Clean targets
.PHONY: clean clean-all help
clean:
	rm -rf results/

clean-all: clean
	rm -rf data/processed/

help:
	@echo "Reproducible Analysis Pipeline"
	@echo "============================="
	@echo ""
	@echo "Available targets:"
	@echo "  make all        - Run entire pipeline (default)"
	@echo "  make clean      - Remove results/"
	@echo "  make clean-all  - Remove results/ and processed data"
	@echo "  make help       - Show this message"

Using the Pipeline

BASH

# First run: does everything
make

# Change a script, rerun -- only modified steps are re-run
make

# Clean and start over
make clean-all
make

Make + HPC: Orchestrating SLURM Jobs

Make can orchestrate not just local commands but job submissions to HPC clusters:

MAKEFILE

SLURM_ARGS := --time=04:00:00 --cpus-per-task=8 --mem=32G

.PHONY: submit-processing
submit-processing:
	sbatch $(SLURM_ARGS) --job-name=process \
		--output=logs/process.log \
		src/process.sh data/raw/samples.csv data/processed/

.PHONY: submit-analysis
submit-analysis: submit-processing
	sbatch $(SLURM_ARGS) --job-name=analyze \
		--dependency=singleton \
		--output=logs/analyze.log \
		src/analyze.sh data/processed/ results/

We’ll cover SLURM integration in depth in later episodes.

Debugging Makefiles

Recipe doesn’t run

Check for TAB vs spaces:

MAKEFILE

target: prereq
	echo "OK"       # TAB - works
    echo "FAIL"     # spaces - doesn't work

Variable not expanding

Makefile variables use $(VAR) not $VAR:

MAKEFILE

FILES := *.csv
	echo $FILES      # Wrong: prints "$FILES"
	echo $(FILES)    # Right: prints actual file names

Prerequisites not rebuilding

Check file timestamps:

BASH

make -d          # Debug output
make -n          # Dry run (show what would happen)
touch src/script.py  # Update timestamp to force rebuild

When NOT to Use Make

Make is great for simple-to-moderate workflows but has limitations:

  • No built-in parallelization control: Hard to parallelize interdependent jobs
  • Complex data dependencies: Hard to express “if any file in this directory changes”
  • Interactive feedback needed: Make doesn’t check for user input mid-workflow

For complex bioinformatics or machine learning pipelines with hundreds of jobs, consider:

  • Snakemake: Python-based workflow tool, better parallelization
  • Nextflow: Domain-specific workflow language, excellent HPC support
  • Dask/Luigi: Python libraries for workflow orchestration

But for most research analyses, Make is simple, effective, and universal (available on virtually every Unix system).

Tips and Best Practices

  1. Include a .PHONY: all target: Defines the default workflow
  2. Use variables: Makes your Makefile DRY and maintainable
  3. Add @echo statements: Provides user feedback on what’s happening
  4. Include help target: Document your pipeline
  5. Separate concerns: One rule per logical step
  6. Use relative paths: Makes Makefiles portable
  7. Test your Makefile: Run make clean then make to ensure reproducibility
  8. Version your Makefile: Track it in git like any other source code
Challenge

Exercise: Incremental Rebuilds

Given a working Makefile with targets for process, analyze, and visualize:

  1. Run make to build everything
  2. Touch only src/visualize.py (touch src/visualize.py)
  3. Run make -n to see what would be rebuilt

Question: Why does Make only re-run the visualization step and not the earlier steps?

Then modify the Makefile to add a clean-all target that removes both results and processed data.

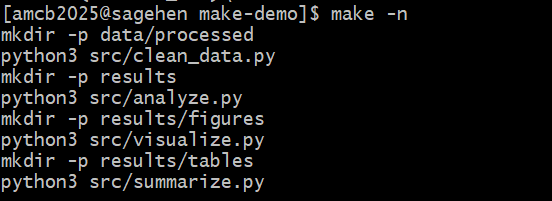

Terminal in a make-demo directory on Sagehen HPC where make -n has been run. The dry-run output lists mkdir and python3 commands for four pipeline stages: cleaning data, analysis, figure generation, and table generation.
make -n on Sagehen HPC previews every command in the four-stage pipeline without running anything.

BASH

$ touch src/visualize.py
$ make -n
python3 src/visualize.py results/analysis.csv results/figure.png

Make only re-runs the visualization step because:

  • src/visualize.py has a newer timestamp than results/figure.png
  • But src/analyze.py has NOT changed, so results/analysis.csv is still up-to-date
  • And src/process.py has NOT changed, so data/processed/data_clean.csv is still up-to-date

Make traces the dependency graph and only re-runs targets whose prerequisites are newer than their outputs.

The clean-all target:

MAKEFILE

.PHONY: clean-all
clean-all: clean
	rm -rf data/processed/
Key Points
  • Variables, .PHONY targets, and special variables ($@, $<, $^) make Makefiles clean and maintainable
  • Pattern rules let you define one rule for many similar transformations
  • Make can orchestrate HPC job submissions for parallel processing
  • Debug with make -n (dry run) and make -d (debug output)
  • A good Makefile with help and clean targets makes your workflow self-documenting
  • For complex pipelines with hundreds of jobs, consider Snakemake or Nextflow
