Introduction to SLURM

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What is a job scheduler and why do we need one?
  • What is SLURM?
  • Why can’t I just run jobs on the head node?

Objectives

  • Understand the purpose of job schedulers in shared computing environments
  • Learn the basic architecture of Sagehen HPC
  • Distinguish between head nodes and compute nodes
  • Understand the SLURM job lifecycle

What is a Job Scheduler?

When multiple researchers share a computing cluster, a job scheduler coordinates access:

  1. Manages resources – tracks CPU, memory, and GPU availability
  2. Queues jobs – accepts requests and holds them until resources are free
  3. Allocates resources – assigns specific compute nodes to jobs
  4. Ensures fairness – prevents any one user from monopolizing the cluster
  5. Enforces policies – implements time limits, quotas, and priority rules

Without a scheduler, researchers would need to manually coordinate who runs what and when.

SLURM: Simple Linux Utility for Resource Management

SLURM is the job scheduler used on Sagehen. It is one of the most widely deployed schedulers in HPC, running on thousands of clusters worldwide.

Key SLURM Concepts

  • Jobs: A unit of work – either interactive (real-time shell) or batch (scripted, unattended)
  • Partitions: Logical groupings of nodes with different characteristics
  • Resources: What you request for your job (CPU cores, memory, time, GPUs)

The Sagehen HPC Cluster Architecture

Head Node

  • Address: sagehen.hpc.pomona.edu
  • CPU: 2 threads; RAM: 8 GB
  • Purpose: Login, submit jobs, manage files

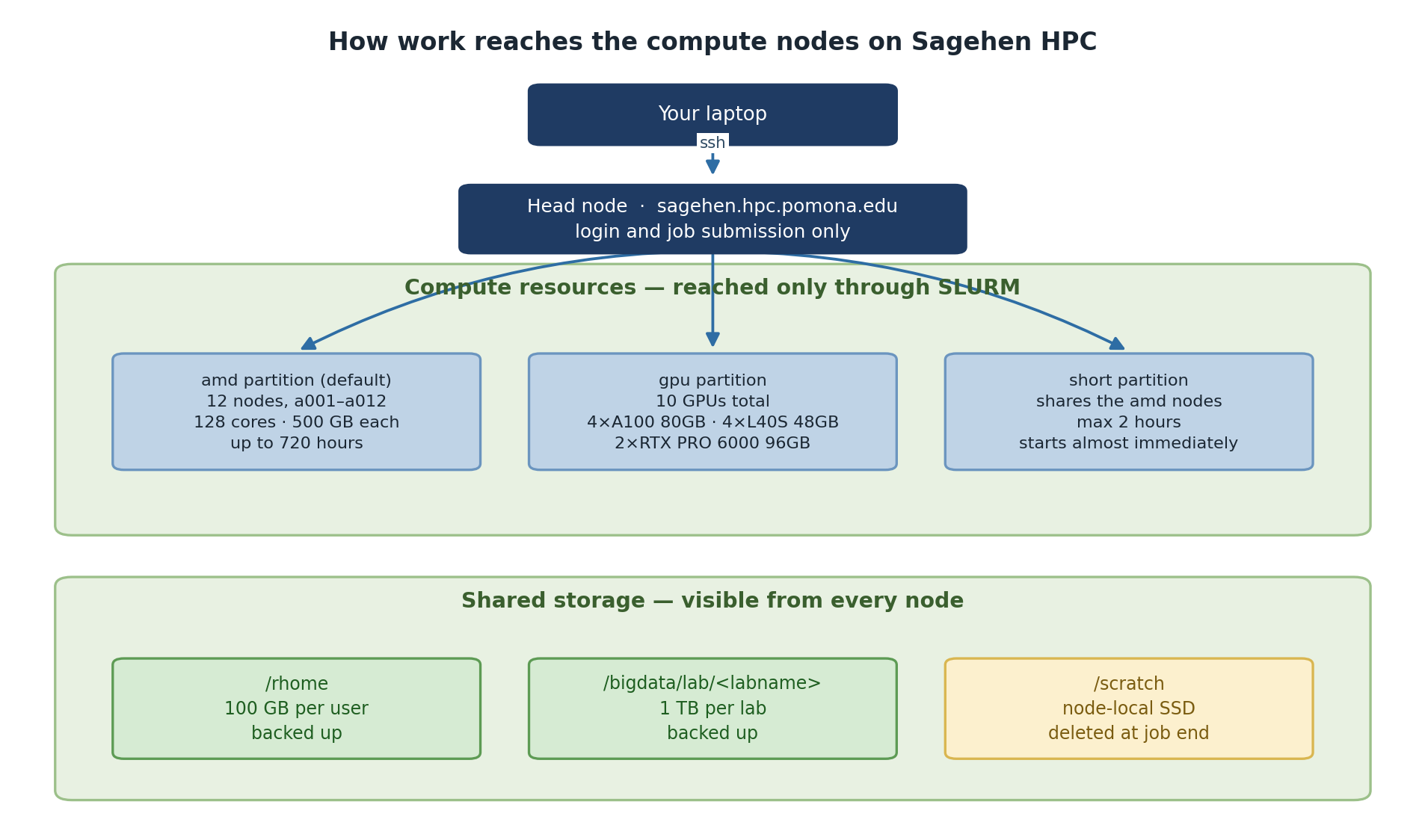

Diagram of Sagehen HPC. Your laptop connects by SSH to the head node at sagehen.hpc.pomona.edu, which is for login and job submission only. From there SLURM dispatches work to three partitions: amd, the default, with 12 nodes a001 to a012 of 128 cores and 500 GB each and up to 720 hours; gpu, with 10 GPUs in total made up of four A100 80GB, four L40S 48GB and two RTX PRO 6000 96GB; and short, which shares the amd nodes, is capped at 2 hours and starts almost immediately. Below, shared storage visible from every node: /rhome with 100 GB per user backed up, /bigdata/lab per lab with 1 TB backed up, and /scratch node-local SSD deleted at job end.
The head node takes your submission; SLURM decides which compute node actually runs it.
Callout

The Head Node is Sacred

The head node has only 2 CPU threads and 8 GB of RAM. Running compute jobs there will crash the login server, kill other users’ jobs, and result in account restrictions. Always submit jobs to compute nodes via SLURM.

Compute Nodes

Partition Specs Max Time Best For
amd See sinfo -p amd for current configuration 30 days General compute
gpu 10 GPUs across multiple nodes (4× A100, 4× L40S, 2× RTX PRO 6000; see Workshop 16) 30 days ML, GPU-accelerated work
short See sinfo -p short for current configuration Shorter max walltime than amd/gpu Quick test jobs, debugging, rapid prototyping

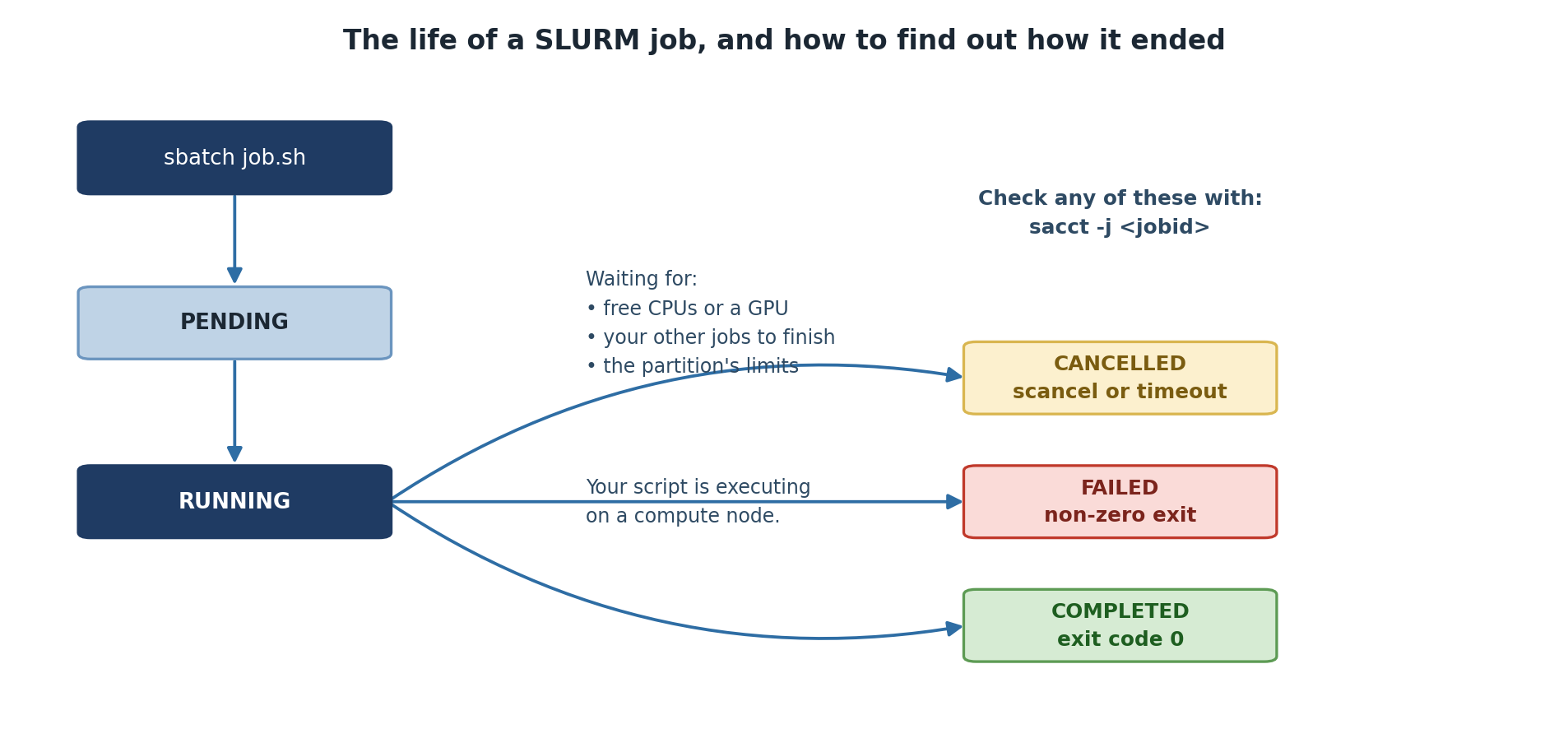

A job submitted with sbatch enters the PENDING state while it waits for free CPUs or a GPU, for your other jobs to finish, or for the partition limits to allow it. It then moves to RUNNING while the script executes on a compute node. From there it ends as COMPLETED with exit code zero, FAILED with a non-zero exit, or CANCELLED by scancel or a timeout. All three can be checked with sacct -j jobid.
Every job ends in one of three states, and sacct will tell you which.

The SLURM Job Lifecycle

  1. Submission: You run sbatch (batch) or srun (interactive) on the head node
  2. Queue: SLURM accepts your job and places it in a queue
  3. Waiting: SLURM waits for available resources and priority scheduling
  4. Allocation: SLURM assigns specific compute nodes
  5. Execution: Your job runs on those nodes
  6. Completion: Output is written to files; nodes are freed

SLURM Command Overview

Command Purpose
srun Start an interactive job
sbatch Submit a batch script
squeue View jobs in the queue
scancel Cancel a job
sacct View job history
seff Analyze job efficiency
sinfo View cluster status
Challenge

Challenge 1: Exploring Sagehen HPC

Connect to Sagehen and explore its structure.

  1. Connect: ssh <myusername>@sagehen.hpc.pomona.edu

  2. Complete DUO MFA authentication

  3. Check the head node:

    BASH

    hostname
nproc
free -h

  4. View partitions:

    BASH

    sinfo
sinfo -s

Look for the amd, gpu, and short partitions in the output.

You should see sagehen from hostname, 2 from nproc, and ~8 GB from free -h. The sinfo output shows the amd, gpu, and short partitions with their node counts and time limits.

Key Points
  • A job scheduler coordinates resource sharing on a cluster
  • SLURM is the job scheduler on Sagehen
  • The head node (2 CPUs, 8 GB RAM) is for login and job submission only
  • Jobs run on compute nodes in three partitions: amd (general compute), gpu (GPU-accelerated), and short (quick test/debug jobs)
  • SLURM enforces fair access through queuing, resource limits, and priorities
