All in One View

Content from Why VS Code Remote?

Last updated on 2026-08-27 | Edit this page

Estimated time: 15 minutes

Overview

Questions

  • What is VS Code Remote-SSH and why would I use it?
  • How does it compare to other tools for editing remote files?

Objectives

  • Understand the benefits of using VS Code for remote HPC work
  • Compare VS Code with traditional command-line alternatives
  • Identify scenarios where VS Code is the best tool for the job

What is VS Code Remote-SSH?

Visual Studio Code (VS Code) is a lightweight, modern code editor developed by Microsoft. It is free, open-source, and available on Windows, Mac, and Linux.

Remote-SSH is an official Microsoft extension for VS Code that allows you to connect to remote systems (like the Sagehen HPC cluster) and edit files as if they were on your local machine. VS Code runs a server component on the remote system while your local VS Code interface connects to it, giving you full IDE features while working on the cluster.

Key insight: You are not editing files over SSH through a terminal emulator; VS Code creates a true two-way connection with full IDE capabilities.

Two panels. On your laptop, the VS Code window provides the editor, file tree and terminal panel. Connected over SSH, the Sagehen HPC head node runs the VS Code Server, which in turn reaches your files in /rhome and /bigdata, extensions running on the cluster, and a terminal giving a cluster shell. A note explains that only the interface runs on your laptop, so heavy work must still go through SLURM rather than the head node.
The window is local; everything else is on the cluster.

Comparison with Other Tools

Callout

Command-Line Editors vs Modern IDE

nano, vim, emacs pros: Lightweight, fast, work in any SSH terminal, no additional software needed.

Cons: Steep learning curve (especially vim), limited visual feedback, no integrated file browser, difficult to manage large projects, no built-in debugging or linting.

When to use: Quick edits to small files, slow connections, or very resource-constrained remote systems.

MobaXterm offers an integrated SSH client and SFTP browser on Windows, but is not a true IDE. OnDemand (Pomona’s web interface at https://ondemand.hpc.pomona.edu) is browser-based and good for job monitoring and launching interactive applications, but has limited code editing.

The VS Code Remote-SSH Workflow

Your Laptop (Local Machine)          Sagehen Cluster (Remote)
┌──────────────────────────┐        ┌──────────────────────┐
│   VS Code UI             │◄──────►│  VS Code Server      │
│   (Editor, Sidebar, etc.)│  SSH   │  (Files, Extensions) │
└──────────────────────────┘        └──────────────────────┘
         (Your view)                   (Where code runs)

When you open a folder on Sagehen HPC:

  1. VS Code’s user interface runs on your laptop
  2. VS Code Server runs on the Sagehen HPC cluster (very lightweight)
  3. File editing happens locally with VS Code’s full features
  4. Extensions run on the remote system where they access your files
  5. The integrated terminal connects directly to the Sagehen login node

Why Pomona Recommends VS Code for HPC

Challenge

Challenge: Evaluate Your Current Workflow

Think about your current method for editing files on Sagehen:

  1. What editor or tool do you currently use?
  2. What aspects of your current workflow frustrate you?
  3. What features would improve your productivity?

Discuss your answers with a neighbor or the instructor.

Common answers from HPC users:

  1. Current tools: Most use nano or vim over SSH, or MobaXterm on Windows.
  2. Frustrations: No syntax highlighting, hard to manage multiple files, no integrated file browser, losing work on disconnection.
  3. Desired features: Auto-complete, side-by-side editing, integrated terminal, easy file upload/download.

VS Code Remote-SSH addresses all of these.

Key Points
  • VS Code Remote-SSH provides a full IDE experience for remote HPC development
  • It combines VS Code’s features with direct access to your cluster files
  • VS Code is recommended for serious code development; command-line editors are better for quick edits
  • The Remote-SSH extension creates a seamless local-to-remote development workflow

Content from Installing VS Code

Last updated on 2026-08-27 | Edit this page

Estimated time: 15 minutes

Overview

Questions

  • How do I install VS Code on my operating system?
  • How do I install the Remote-SSH extension?

Objectives

  • Install VS Code on Windows, Mac, or Linux
  • Install and enable the Remote-SSH extension
  • Enable the critical DUO MFA setting

Step 1: Install Visual Studio Code

VS Code is free and available on all major operating systems.

Windows

  1. Visit code.visualstudio.com
  2. Click the Windows download button (Windows x64 Installer)
  3. Run the downloaded installer and follow the wizard (defaults are fine)
  4. Verify: open PowerShell and type code --version

Mac

  1. Visit code.visualstudio.com
  2. Click the Mac download button (choose Intel or Apple Silicon)
  3. Open the .zip and drag “Visual Studio Code.app” to Applications
  4. Verify: open Terminal and type code --version

Linux (Ubuntu/Debian)

BASH

sudo apt update
sudo apt install software-properties-common apt-transport-https wget
wget -q https://packages.microsoft.com/keys/microsoft.asc -O- | sudo apt-key add -
sudo add-apt-repository "deb [arch=amd64] https://packages.microsoft.com/repos/vscode stable main"
sudo apt update && sudo apt install code

Verify: code --version

Linux (Fedora/RHEL)

BASH

sudo rpm --import https://packages.microsoft.com/keys/microsoft.asc
sudo sh -c 'echo -e "[code]\nname=Visual Studio Code\nbaseurl=https://packages.microsoft.com/yumrepos/vscode\nenabled=1\ngpgcheck=1\ngpgkey=https://packages.microsoft.com/keys/microsoft.asc" > /etc/yum.repos.d/vscode.repo'
dnf check-update && sudo dnf install code

Step 2: Install Remote-SSH Extension

  1. Open VS Code
  2. Click the Extensions icon on the left sidebar (four squares icon)
  3. Search for “Remote-SSH”
  4. Find Remote - SSH by Microsoft (the official one)
  5. Click Install

You should now see a “Remote Explorer” icon in the left sidebar.

Step 3: Enable Login Terminal for DUO

Callout

Essential: Enable Login Terminal for DUO Authentication

Before connecting, you MUST enable one critical setting:

  1. Open Settings: File > Preferences > Settings (Ctrl+, or Cmd+,)
  2. Search for: remote.SSH.showLoginTerminal
  3. Check the checkbox to enable this setting

Why this matters: Sagehen HPC requires DUO MFA. Without this setting, DUO prompts appear in an invisible terminal and you cannot authenticate. This is the number one reason people cannot connect initially.

Challenge

Challenge: Verify Your Installation

  1. Run code --version in your terminal. Do you get a version number?
  2. Open VS Code and check Extensions. Is “Remote - SSH” installed?
  3. In Settings, search remote.SSH.showLoginTerminal. Is it checked?
  1. code --version should print a version like 1.87.2. If “command not found,” VS Code is not installed or not in your PATH.
  2. Remote - SSH should appear in Extensions with an “Installed” badge.
  3. The checkbox should show a checkmark next to “Show Login Terminal”.
Key Points
  • Install VS Code from code.visualstudio.com for your operating system
  • Install the Remote-SSH extension by Microsoft from the Extensions sidebar
  • Enable remote.SSH.showLoginTerminal in settings – this is required for DUO

Content from Setting Up SSH Config

Last updated on 2026-08-27 | Edit this page

Estimated time: 20 minutes

Overview

Questions

  • What SSH configuration do I need for Sagehen HPC?
  • How do I set up SSH keys for passwordless authentication?

Objectives

  • Configure ~/.ssh/config with proper Sagehen credentials
  • Set correct file permissions on SSH files
  • Optionally generate SSH keys (Ed25519 recommended)
  • Verify SSH connectivity from the terminal

Create or Edit ~/.ssh/config

VS Code Remote-SSH uses your system’s SSH configuration to connect. You need an entry for Sagehen in ~/.ssh/config.

On Windows (PowerShell):

POWERSHELL

New-Item -ItemType Directory -Force -Path $HOME\.ssh | Out-Null
notepad $HOME\.ssh\config

On Mac/Linux (Terminal):

BASH

mkdir -p ~/.ssh && chmod 700 ~/.ssh
nano ~/.ssh/config

Add the Sagehen HPC Entry

Callout

SSH Configuration for Sagehen HPC

Add this to your ~/.ssh/config (replace <myusername> with your Pomona username):

Host sagehen
    HostName sagehen.hpc.pomona.edu
    User username
    ServerAliveInterval 300
    ServerAliveCountMax 2
Setting Purpose
Host sagehen Friendly name for the connection
HostName sagehen.hpc.pomona.edu Actual cluster address
User username Your Pomona username
ServerAliveInterval 300 Keep connection alive every 300 seconds
ServerAliveCountMax 2 Disconnect after 2 unanswered keepalives

Set File Permissions (Mac/Linux)

BASH

chmod 600 ~/.ssh/config
chmod 700 ~/.ssh

Optional: Generate SSH Key

For passwordless connections (DUO still applies), generate an SSH key. Ed25519 is recommended; RSA-4096 is also acceptable.

Generate a key:

BASH

ssh-keygen -t ed25519 -C "your-email@pomona.edu"

Press Enter for default location. You may set a passphrase or leave blank.

Copy to Sagehen (Mac/Linux):

BASH

ssh-copy-id -i ~/.ssh/id_ed25519 sagehen

Copy to Sagehen (Windows PowerShell):

POWERSHELL

Get-Content $HOME\.ssh\id_ed25519.pub | Set-Clipboard
# SSH into Sagehen manually, then:
# mkdir -p ~/.ssh && echo "PASTE_KEY_HERE" >> ~/.ssh/authorized_keys
# chmod 600 ~/.ssh/authorized_keys

Test Your SSH Connection

Before using VS Code Remote-SSH, verify from your terminal:

BASH

ssh sagehen

Expected sequence:

  1. Password prompt: <myusername>@sagehen.hpc.pomona.edu's password:
  2. Enter your Pomona password
  3. DUO prompt appears
  4. Complete DUO authentication
  5. You see: [<myusername>@sagehen-login-1 ~]$

Type exit to disconnect.

If this fails: Check your username in ~/.ssh/config, verify Pomona credentials and DUO registration, and contact if needed.

Challenge

Challenge: Verify SSH Configuration

  1. Open ~/.ssh/config and check the sagehen entry
  2. Run ssh -G sagehen to display your effective SSH configuration
  3. Run ssh sagehen and complete DUO authentication
  4. Once connected, run uname -a and whoami, then exit

ssh -G sagehen should show:

hostname sagehen.hpc.pomona.edu
user yourname
serveraliveinterval 300
serveralivecountmax 2
A PowerShell window where ssh -G sagehen is piped to Select-String to filter key settings. The output shows the username, hostname sagehen.hpc.pomona.edu, serveralivecountmax 2, and serveraliveinterval 300.
Verifying the effective config on Windows: ssh -G sagehen filtered through Select-String.

After connecting, uname -a shows a Linux kernel version and whoami shows your Pomona username. If whoami returns the wrong name, fix the User line in ~/.ssh/config. If the connection hangs at the DUO two-factor login prompt, verify DUO registration.

Key Points
  • Configure ~/.ssh/config with a Host sagehen entry and your Pomona username
  • Set proper file permissions (600 for config, 700 for .ssh directory)
  • SSH keys (Ed25519 recommended) are optional but convenient for frequent users
  • Always test ssh sagehen from a terminal before using VS Code Remote-SSH

Content from Connecting to Sagehen HPC

Last updated on 2026-08-27 | Edit this page

Estimated time: 20 minutes

Overview

Questions

  • How do I connect to Sagehen using VS Code Remote-SSH?
  • How do I handle DUO authentication in VS Code?
  • What should I do if I get disconnected?

Objectives

  • Connect to Sagehen HPC cluster using Remote-SSH
  • Authenticate with DUO MFA through VS Code
  • Open a remote folder and browse files
  • Handle disconnections and reconnect

Your First Connection

Step 1: Open the Remote Explorer

The VS Code Remote Explorer panel open from the activity bar. Under Remotes and an SSH group, a host named sagehen appears with a green connected badge.
The Remote Explorer sidebar with the sagehen host from your SSH config, shown here already connected.

Click the Remote Explorer icon in the left sidebar. You should see “sagehen” listed from your ~/.ssh/config. If not, click the “+” icon to add a new SSH target and enter sagehen.hpc.pomona.edu.

Step 2: Connect

  1. Hover over “sagehen” in the Remote Explorer
  2. Click the connect icon (arrow pointing to a folder)
  3. A new VS Code window opens
  4. Select Linux when prompted for platform
  5. Click Yes, I trust the authors if a trust dialog appears

Step 3: DUO Authentication

A VS Code window mid-connection. The integrated terminal notes this shell runs on the local machine, prints OpenSSH warnings that the connection is not using a post-quantum key exchange algorithm, and shows a password prompt for the user at sagehen.hpc.pomona.edu. A notification reads Setting up SSH Host sagehen, Initializing VS Code Server.
Mid-connection: the login terminal asks for your Pomona password while VS Code Server is set up on Sagehen. The OpenSSH “post-quantum key exchange” warning above the prompt is expected — it’s informational, not an error.
Callout

Completing DUO Authentication in VS Code

A terminal window appears at the bottom of VS Code:

  1. Enter your Pomona password at the password prompt
  2. At the DUO prompt, type a 6-digit code from your DUO app, or type “call”
  3. Complete the authentication

After success, the terminal closes and VS Code shows “SSH: sagehen” in the bottom-left status bar.

Opening Your Remote Folder

  1. Click File > Open Folder (or Ctrl+K Ctrl+O / Cmd+K Cmd+O)
  2. Navigate to /rhome/<myusername> (your home directory)
  3. Click Open

The Explorer sidebar now shows your remote files on Sagehen.

Connection States and Reconnection

State Indicator Action
Connected Green “SSH: sagehen” Working normally
Connecting Blue/spinning Wait 5-10 seconds
Reconnecting Blue VS Code auto-reconnects (~5 min)
Offline Red/disconnected Fix network, click Reconnect

If automatic reconnection fails:

  1. Click the SSH status button (bottom-left)
  2. Select “Close Remote Connection”
  3. Wait a few seconds, then reconnect from Remote Explorer

For extended disconnections, close VS Code entirely, reopen, and reconnect through Remote Explorer. You will need to re-authenticate with DUO.

Disconnecting When Done

  1. Click the “SSH: sagehen” button (bottom-left)
  2. Select “Close Remote Connection”

Your files on Sagehen remain unchanged.

Challenge

Challenge: Connect, Explore, and Reconnect

  1. Connect to Sagehen from Remote Explorer
  2. Open your home folder (/rhome/<myusername>)
  3. Browse some folders in the Explorer sidebar
  4. Disconnect (SSH button > Close Remote Connection)
  5. Reconnect and verify “SSH: sagehen” reappears

Success indicators:

  • Bottom-left shows green “SSH: sagehen” button
  • Explorer sidebar shows your home directory contents (.bashrc, project folders)
  • Opening a terminal (Ctrl+`) shows [<myusername>@sagehen-login-1 ~]$
  • After reconnecting, the green indicator returns (faster than first connection since VS Code Server is already installed)

If no DUO prompt appears, verify remote.SSH.showLoginTerminal is enabled.

Key Points
  • Use Remote Explorer to connect to Sagehen and select Linux as the platform
  • remote.SSH.showLoginTerminal must be enabled for DUO prompts to appear
  • After connecting, open /rhome/<myusername> to browse your remote files
  • VS Code automatically attempts reconnection after network interruptions
  • Disconnect via the SSH status button when finished

Content from File Editing Basics

Last updated on 2026-08-27 | Edit this page

Estimated time: 15 minutes

Overview

Questions

  • How do I create and edit files on the remote cluster?
  • What are VS Code’s core editing features?

Objectives

  • Create, open, edit, and save files on Sagehen HPC
  • Use syntax highlighting and code completion
  • Navigate files with Quick Open and Go to Line
  • Upload files from your local computer via drag-and-drop

The Remote File Browser

The Explorer sidebar displays your remote file system. Click arrows to expand folders. Hover over a file to see its full path and size.

Creating Files

Explorer sidebar: Right-click > New File, type the filename (including extension like script.py), press Enter.

Keyboard: Ctrl+Alt+N (Windows/Linux) or Cmd+Shift+N (Mac).

File menu: File > New File, then save with Ctrl+S and choose location.

Opening Files

  • Single-click a file in Explorer to preview it (shown in italics)
  • Double-click to open for editing
Callout

Pro Tip: Use Quick Open for Speed

Press Ctrl+P (or Cmd+P on Mac), start typing the filename, and VS Code shows matching files. This is the fastest way to navigate large projects.

Use Ctrl+G to jump to a specific line number.

Editing Features

  • Syntax highlighting: VS Code detects file type and colors code accordingly (Python, R, Markdown, C/C++, and many more)
  • Code completion (IntelliSense): Suggestions appear as you type. Press Ctrl+Space to trigger manually.
  • Line numbers: Click a line number to select the entire line

Saving Files

Action Windows/Linux Mac
Save Ctrl+S Cmd+S
Save All Ctrl+Shift+S Cmd+Shift+S
Auto Save File > Auto Save File > Auto Save

Files save to Sagehen, not your local machine.

Uploading Files from Your Computer

Callout

Drag-and-Drop Upload

Drag files from your local file explorer (Windows Explorer, Finder) into the VS Code Explorer sidebar. They upload directly to Sagehen in the currently open folder. Multiple files can be dragged at once.

Challenge

Challenge: Create and Edit a Python File

  1. Create a new file called hello_world.py

  2. Type this code:

    PYTHON

    #!/usr/bin/env python3
"""My first Python script on Sagehen."""

name = input("What's your name? ")
print(f"Hello, {name}!")

  3. Save with Ctrl+S

  4. Verify syntax highlighting colors the code

The file tab shows hello_world.py without a dot (indicating saved). Python syntax highlighting colors #!/usr/bin/env python3 in one color, the docstring in another, and print as a built-in keyword. Verify the file exists on Sagehen by opening the terminal (Ctrl+`) and running ls -l hello_world.py.

If there is no syntax highlighting, the Python extension may not be installed yet (covered in the Extensions episode).

Key Points
  • Use the Explorer sidebar or Quick Open (Ctrl+P) to navigate remote files
  • Create files with right-click > New File or keyboard shortcuts
  • VS Code provides syntax highlighting and IntelliSense automatically
  • Save with Ctrl+S; files save to Sagehen, not your local machine
  • Drag files from your computer into the Explorer sidebar to upload them

Content from Multi-File Editing

Last updated on 2026-08-24 | Edit this page

Estimated time: 20 minutes

Overview

Questions

  • How do I work with multiple files at once?
  • How do I search and replace across my project?

Objectives

  • Use tabs and split editor for side-by-side editing
  • Search and replace within a file and across all files
  • Compare two files side-by-side with diff view
  • Manage project folder structure from VS Code

Working with Tabs

Each open file appears as a tab at the top of the editor:

|  script.py  |  data.csv  |  README.md  |
  • Click a tab to switch files
  • Click the X on a tab to close it
  • Use Ctrl+Tab to cycle through open files

Split Editor View

For side-by-side editing, press Ctrl+\ (Windows/Linux) or Cmd+\ (Mac):

|  script.py  |        |  analysis.py  |
─────────────────────────────────────────
# script.py content   # analysis.py content

You can have up to four splits. Drag tabs between splits to rearrange.

Searching and Replacing

In the current file

  • Ctrl+F (Cmd+F): Find – matches highlight in yellow
  • Ctrl+H (Cmd+H): Find and Replace – replace one or all matches

Across all files in your project

  • Ctrl+Shift+F (Cmd+Shift+F): Search across all files in the open folder
  • Ctrl+Shift+H (Cmd+Shift+H): Search and replace across all files

Click any result to jump directly to that file and line.

Comparing Files

  1. Open both files
  2. Right-click one file tab > Compare with…
  3. Select the other file

Differences display side-by-side: green for added lines, red for removed, and orange for modified lines.

A VS Code diff editor comparing two Python files side by side. Both define a greet function; the left pane highlights the line returning Hello in red as removed, and the right pane highlights the line returning Greetings in green as added.
The diff view comparing two Python files — removed line red on the left, added line green on the right.

File Management

From the Explorer sidebar you can:

  • Create folders: Right-click > New Folder
  • Rename: Right-click > Rename
  • Delete: Right-click > Delete (permanent on the remote system)
  • Move: Drag files between folders

Keyboard Shortcuts Reference

Action Windows/Linux Mac
Quick Open Ctrl+P Cmd+P
Find in file Ctrl+F Cmd+F
Find/Replace in file Ctrl+H Cmd+H
Find in all files Ctrl+Shift+F Cmd+Shift+F
Split editor Ctrl+\ Cmd+\
Close file Ctrl+W Cmd+W
Go to line Ctrl+G Ctrl+G

After splitting, two editor panes appear side by side. Both files have Python syntax highlighting. Using Ctrl+Shift+H opens the sidebar search-and-replace which operates across all files in the workspace. After “Replace All,” every instance of “Hello” changes to “Greetings”. Use Ctrl+Z in each file to undo – each file tracks its own undo history independently.

Key Points
  • Open files appear as tabs; use Ctrl+Tab to switch between them
  • Split editor (Ctrl+\) enables side-by-side editing of two or more files
  • Ctrl+F searches the current file; Ctrl+Shift+F searches across all files
  • Compare files with right-click > Compare to see color-coded differences
  • Manage folders and files directly from the Explorer sidebar

Content from Integrated Terminal

Last updated on 2026-08-27 | Edit this page

Estimated time: 35 minutes

Overview

Questions

  • How do I use the integrated terminal in VS Code?
  • How do I submit and monitor SLURM jobs from VS Code?
  • How do I use multiple terminal panes for the edit-submit-monitor workflow?
  • How do I activate conda environments and load modules cleanly?

Objectives

  • Open and use VS Code’s integrated terminal on Sagehen HPC
  • Run SLURM commands (sbatch, squeue, scancel, seff)
  • Use multiple terminal tabs and split terminals for parallel workflows
  • Configure a custom terminal profile that auto-loads your conda environment
  • Recover gracefully from disconnects and dropped sessions

Why the Integrated Terminal Matters for HPC

When you connect to Sagehen with VS Code Remote-SSH, the editor pane edits files on the cluster but does not, on its own, give you a way to run commands there. The integrated terminal is the bridge. It opens a real shell on the Sagehen login node, in the same SSH session your editor is using. That means everything you type in the terminal sees exactly the files you are editing, with no synchronization step.

This tight coupling is the entire reason VS Code Remote-SSH is more productive for HPC work than editing locally and rsyncing changes. The code you save is immediately the code you can run. The job you submit immediately reads the script you just changed.

Opening the Terminal

Press Ctrl+` (backtick, the key above Tab on most keyboards) to open the integrated terminal. When connected to Sagehen, the prompt confirms you are on the cluster:

<myusername>@sagehen-login-1:~$

This is your Sagehen login node shell. The terminal starts in your home directory (/rhome/<myusername>). Your usual .bashrc or .zshrc runs, so any aliases, PATH additions, or module load lines you have configured take effect.

Callout

Login node etiquette

The integrated terminal runs on the login node, not a compute node. The login node is shared by every Sagehen user and is meant for editing, submitting jobs, light file operations, and small tests. Do not run heavy compute, training, or data processing in this terminal. If you need an interactive compute environment, request one with srun --partition=short --time=00:30:00 --pty bash and the terminal will move to a compute node for the duration of that session.

Running SLURM Commands

The five commands you will use most:

Submit a job

BASH

sbatch my_script.sh
# Output: Submitted batch job 12345

Check job status

BASH

squeue -u $USER              # All your jobs
squeue -j 12345              # Specific job
squeue -u $USER --start      # Estimated start times for pending jobs

Monitor output in real time

BASH

tail -f slurm-12345.out      # Watch output; Ctrl+C to stop

Cancel a job and check history

BASH

scancel 12345                # Stop one job immediately
scancel -u $USER             # Stop all of your jobs (use with care)
sacct -u $USER --format=jobid,jobname,state,elapsed,maxrss  # Recent jobs
seff 12345                   # CPU and memory efficiency of completed job

seff is the unsung hero of resource tuning. After a job completes, seff JOBID reports actual CPU efficiency, memory used vs requested, and wall time. Running it on every completed job for a week will reshape how you write SLURM scripts; most users overestimate memory by 4 to 10x.

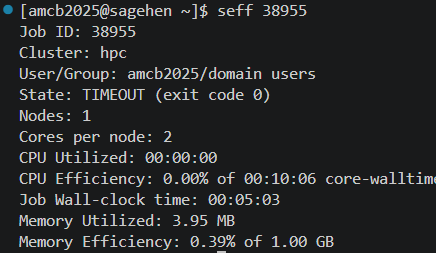

Terminal output of seff for a job on cluster hpc. The job ended in TIMEOUT state after five minutes of wall-clock time, used zero percent of its CPU core-walltime across two cores, and utilized under four megabytes of the one gigabyte requested.
seff on a finished test job: near-zero CPU and memory efficiency is your cue to shrink the next request. (This example ended in TIMEOUT because the test deliberately overran its 5-minute limit.)

Multiple Terminals for the Real Workflow

A single terminal forces you to choose between editing focus and monitoring focus. Multiple terminals let you do both at once.

Multiple terminal tabs

Click the + icon next to the terminal name to open additional terminals. Each is an independent shell on Sagehen.

A common configuration: one terminal for submitting jobs, a second for watch squeue -u $USER to see queue state update every 2 seconds, a third running tail -f slurm-*.out to watch the active job’s output.

Split terminal

Right-click the terminal area and choose Split Terminal, or press Ctrl+Shift+5, to put two shells side-by-side in the same panel. Both run independently on Sagehen. This is especially useful when you want to compare two log files or two job outputs at the same time without flipping tabs.

Renaming and reordering

Right-click a terminal name to rename it (“submit”, “monitor”, “logs”). Drag tabs in the terminal sidebar to reorder. With four or five terminals open, named tabs are the difference between a productive session and a confusing one.

Custom Terminal Profiles

By default, the integrated terminal runs bash (or zsh) with your default profile. You can define custom profiles that auto-activate a conda environment or load specific modules. Open Settings (Ctrl+,) and search for “terminal.integrated.profiles.linux”, then click “Edit in settings.json”:

JSON

"terminal.integrated.profiles.linux": {
    "bash (default)": {
        "path": "bash"
    },
    "ml-env": {
        "path": "bash",
        "args": ["-l", "-c", "module load miniconda3 && conda activate ml_env && exec bash"]
    },
    "gpu-interactive": {
        "path": "bash",
        "args": ["-l", "-c", "srun --partition=gpu --gres=gpu:l40s:1 --time=02:00:00 --pty bash"]
    }
}

Now the + dropdown in the terminal panel offers three profiles. Picking “ml-env” opens a terminal with conda already activated. Picking “gpu-interactive” requests an L40S for 2 hours and drops you into a shell on a compute node.

Callout

Login vs interactive vs SLURM-allocated shells

Three different shell types behave differently:

  • Login shell (default new terminal): runs .bash_profile and .bashrc. On the shared login node. No GPU access. Good for editing and submitting.

  • Interactive shell with srun: runs on a compute node. Allocated CPU/GPU/memory until you exit. Counts against your job allocation. Good for debugging a job that crashes inside SLURM.

  • Inside an sbatch script: only runs .bashrc, not .bash_profile. If a script that works in your interactive shell fails inside sbatch, the difference is usually a missing module load or conda activate that lives in .bash_profile. Move it to .bashrc or load it explicitly in the SLURM script.

Recovering from Disconnects

The integrated terminal session lives inside the SSH connection. If your laptop sleeps, the wifi drops, or VS Code closes, the connection breaks. Two strategies for surviving disconnects:

Reconnect quickly

VS Code’s Remote-SSH extension detects the broken connection and offers to reconnect. Most of the time this works and you pick up where you left off, but commands that were running in the terminal at the moment of disconnect are killed.

Use tmux for persistence

For longer interactive sessions where losing the terminal would hurt, run tmux (preinstalled on Sagehen):

BASH

tmux new -s work          # start a session named "work"
# ... do things, run commands ...
# Ctrl+b d to detach (session keeps running)

# Later, after a disconnect:
tmux attach -t work       # resume the session

tmux keeps your shell, processes, and scrollback alive on the login node even after VS Code disconnects. This is the only reliable way to run a long-running interactive command (such as python -i for an analysis session) without fear of losing it. Note that tmux does not protect SLURM jobs themselves; those run on compute nodes and are managed by SLURM regardless of your terminal state.

Terminal Keyboard Shortcuts

Action Windows/Linux Mac
Toggle terminal Ctrl+| Cmd+
New terminal Ctrl+Shift+| Cmd+Shift+
Split terminal Ctrl+Shift+5 Cmd+Shift+5
Switch between terminals Alt+Up/Down Cmd+Up/Down
Clear screen Ctrl+L Cmd+K
Kill terminal (close icon) (close icon)
Reverse search history Ctrl+R Ctrl+R

The Edit-Submit-Monitor Workflow

Callout

Integrated Development and Job Monitoring

  1. Edit your script in the VS Code editor
  2. Submit with sbatch in terminal 1
  3. Monitor queue state with watch squeue -u $USER in terminal 2
  4. Tail output with tail -f slurm-JOBID.out in terminal 3
  5. Review results when the job completes
  6. Iterate: edit your script and resubmit

This tight loop is why VS Code Remote-SSH is so productive for HPC work.

Challenge

Challenge: Submit and Monitor a Job

  1. Create simple_job.sh in the editor:

    BASH

    #!/bin/bash
#SBATCH --job-name=test_job
#SBATCH --partition=short
#SBATCH --time=00:05:00
#SBATCH --cpus-per-task=1
#SBATCH --mem=1G

echo "Hello from $(hostname)"
sleep 30
echo "Job complete!"

  2. In the terminal: chmod +x simple_job.sh && sbatch simple_job.sh

  3. Open a second terminal tab and run watch -n 2 squeue -u $USER

  4. When the job runs, open a third tab: tail -f slurm-*.out

  5. After completion, run seff JOBID to see efficiency

The whole workflow in three split terminals: sbatch on the left, squeue in the middle, tail -f on the log at right.{alt=‘VS Code’s terminal panel split into three panes, all connected to Sagehen. The left pane creates and submits a job script to the short partition, the middle pane shows squeue output with the job running on node a002, and the right pane tails the slurm output files ending with Job complete.’}

After sbatch, you see “Submitted batch job 12345”. The watch terminal shows the job with state PD (pending) briefly and then R (running). The tail terminal shows “Hello from a005” (or another node) and after 30 seconds “Job complete!”. seff 12345 reports CPU efficiency near 0% (the job mostly slept) and memory near 0 KB. This is exactly what seff is for: identifying jobs that overrequested resources so you can right-size future submissions.

Challenge

Challenge: Configure a Conda Profile

Define a custom terminal profile in VS Code that opens a bash shell with a specific conda environment activated. Verify it works by checking which python shows the env’s interpreter, not the system default.

In settings.json:

JSON

"terminal.integrated.profiles.linux": {
    "research-env": {
        "path": "bash",
        "args": ["-l", "-c", "module load miniconda3 && conda activate research-env && exec bash"]
    }
}

Open the + dropdown in the terminal panel, choose “research-env”, and run which python. The output should be /rhome/<myusername>/miniconda3/envs/research-env/bin/python (or wherever your env lives), not /usr/bin/python3.

If which python still shows the system Python, the most common cause is that module load miniconda3 did not run because the profile uses -c instead of -l -c. The -l makes bash a login shell so it sources /etc/profile, where the module command is defined.

Key Points
  • The integrated terminal (Ctrl+`) runs on Sagehen, not your local machine
  • The login node is for editing and submission only; use srun for interactive compute
  • Use sbatch to submit jobs and squeue to check status from the terminal
  • Multiple terminal tabs let you edit, submit, and monitor simultaneously
  • Custom terminal profiles can auto-load conda envs or request interactive compute nodes
  • Use tmux to keep interactive sessions alive across VS Code disconnects
  • seff JOBID after job completion reveals over-provisioned resources
  • The edit-submit-monitor workflow makes VS Code ideal for iterative HPC work

Content from Running and Debugging Code

Last updated on 2026-08-27 | Edit this page

Estimated time: 20 minutes

Overview

Questions

  • How do I run code directly in the VS Code terminal?
  • How do I use tmux for persistent sessions?
  • What debugging workflows work well on Sagehen HPC?

Objectives

  • Run Python and other scripts from the integrated terminal
  • Use tmux for sessions that survive disconnections
  • Debug code with interactive Python and VS Code tools
  • Create complete SLURM job scripts within VS Code

Running Code in the Terminal

Quick tests on the login node

For short tests, run code directly in the terminal:

BASH

cd /rhome/<myusername>/project
python test_script.py --quick

For longer computations, always submit through SLURM to avoid overloading the login node.

Interactive GPU sessions

For prototyping with GPU access:

BASH

srun --partition=gpu --gres=gpu:1 --mem=16G --time=01:00:00 --pty bash
module load miniconda3
python my_gpu_script.py

A Complete Job Script Workflow

Create the SLURM script in the VS Code editor, then submit from the terminal:

BASH

#!/bin/bash
#SBATCH --job-name=my_analysis
#SBATCH --time=01:00:00
#SBATCH --cpus-per-task=4
#SBATCH --mem=8G
#SBATCH --output=logs/analysis_%j.log

module load miniconda3
python analysis.py --input data.csv --output results.csv

After submitting, check results:

BASH

ls -lh logs/               # See log files
tail logs/analysis_45678.log    # View output
head results.csv           # Preview results

Using tmux for Persistent Sessions

Callout

Session Persistence with tmux

tmux is a terminal multiplexer that keeps sessions running even if VS Code disconnects.

BASH

tmux new-session -s mywork       # Create session
# Work in tmux...
# Ctrl+B D to detach (session keeps running)
tmux attach-session -t mywork    # Reattach later
tmux list-sessions               # See all sessions

Useful tmux commands inside a session:

  • Ctrl+B C: Create new window
  • Ctrl+B N/P: Next/previous window
  • Ctrl+B D: Detach (session continues running)

Debugging Strategies

Interactive Python debugging

BASH

python -i my_script.py      # Start interactive mode after script runs
>>> variable_name           # Inspect variables
>>> exit()                  # Exit

VS Code debugging

With the Python extension installed (see next episode), you can:

  1. Set breakpoints by clicking next to line numbers (red dots appear)
  2. Press F5 to start debugging
  3. Step through code with F10 (step over) or F11 (step into)
  4. Inspect variables in the Debug sidebar

This works for code running on Sagehen through the Remote-SSH connection.

Common Debugging Workflow

  1. Edit analysis.py in the VS Code editor
  2. Test with a small dataset in the terminal: python analysis.py --test
  3. Fix errors visible in the terminal output
  4. When working, submit the full job: sbatch run_analysis.sh
  5. Check output: tail -f logs/analysis_*.log
  6. Iterate as needed
Challenge

Challenge: tmux and Job Monitoring

  1. Open the terminal and create a tmux session: tmux new-session -s workshop
  2. Inside tmux, create a second window with Ctrl+B C
  3. In window 0, run: watch -n 5 squeue -u username
  4. Switch to window 1 (Ctrl+B N) for other commands
  5. Detach from tmux (Ctrl+B D)
  6. Reattach: tmux attach-session -t workshop
  7. Verify your watch command is still running

After detaching and reattaching, window 0 still shows the watch command running with periodic squeue updates. This demonstrates that tmux sessions persist through VS Code disconnections. To kill the tmux session when done: tmux kill-session -t workshop.

Key Points
  • Run quick tests directly in the terminal; submit longer jobs through SLURM
  • Use srun for interactive GPU sessions for prototyping
  • tmux sessions persist through disconnections – ideal for long-running monitoring
  • VS Code’s debugger works remotely through Remote-SSH with language extensions
  • The edit-test-submit cycle is the core HPC development workflow

Content from Extensions for HPC

Last updated on 2026-08-27 | Edit this page

Estimated time: 15 minutes

Overview

Questions

  • What extensions enhance my HPC workflow in VS Code?
  • How do I install extensions on the remote cluster?
  • What is the difference between local and remote extensions?

Objectives

  • Understand local vs. remote extensions
  • Install recommended extensions for Python, R, and Jupyter
  • Configure language-specific extension settings
  • Manage extensions across local and remote environments

Local vs. Remote Extensions

Callout

Extension Architecture: Where Code Runs Matters

When connected via Remote-SSH, extensions run in two places:

  • Local extensions (your laptop): Themes, colors, UI enhancements
  • Remote extensions (Sagehen HPC cluster): Code analysis, linting, debugging, language tools

When you install an extension, VS Code tells you which type it is. Language extensions (Python, R, Jupyter) should be installed on the remote side.

Python (Essential for HPC)

Provides syntax highlighting, IntelliSense, linting, debugging, and Jupyter notebook support.

  1. Click Extensions icon (Ctrl+Shift+X)
  2. Search “Python” – find Python by Microsoft
  3. Click Install
  4. When prompted “Install in SSH: sagehen?” click Yes

R (For statistical computing)

Search “R” by REditorSupport. Install in SSH: sagehen. Provides R syntax highlighting, function documentation, and R console integration.

Jupyter (For notebooks)

Search “Jupyter” by Microsoft. Install in SSH: sagehen. Create .ipynb files and run notebook cells directly on Sagehen HPC’s compute resources.

GitLens (Version control)

Search “GitLens.” Shows blame annotations, commit history, and repository navigation. Can be installed locally, remotely, or both.

Markdown Preview Enhanced

Search “Markdown Preview Enhanced.” Install locally for rich Markdown preview and export to PDF.

Essential Extensions Summary

Extension Install Location Purpose
Python Remote (SSH: sagehen) Code analysis and debugging
R Remote R development
Jupyter Remote Interactive notebooks
GitLens Local or both Version control
Markdown Preview Local Documentation preview

Extension Configuration

Some extensions benefit from configuration in Settings (Ctrl+,):

JSON

{
    "python.linting.enabled": true,
    "python.linting.pylintEnabled": true,
    "jupyter.interactiveWindow.textEditor.magicCommandsAsComments": true
}

Managing Extensions

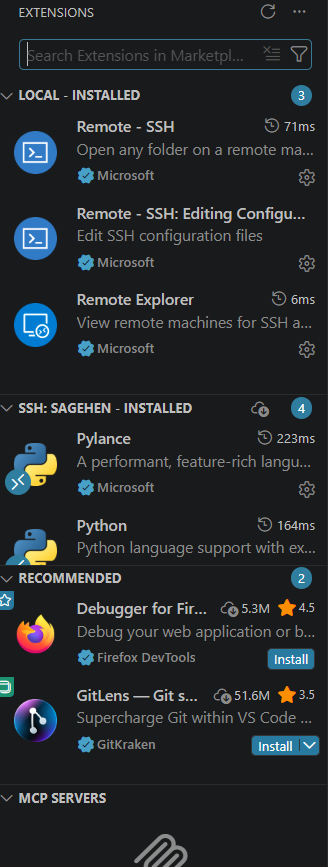

The VS Code Extensions sidebar while connected to Sagehen. A Local Installed section lists the Remote SSH extensions; a separate SSH SAGEHEN Installed section shows Pylance and Python installed on the cluster, with recommended extensions below.
Local vs. remote: the Extensions sidebar separates what’s installed on your machine from what’s installed on Sagehen.
  • View installed extensions: Extensions sidebar shows Local and Remote - SSH: sagehen sections
  • Extensions installed remotely stay on Sagehen even when disconnected
  • Disable problematic extensions: find them in Extensions, click Disable
  • Too many extensions can slow VS Code; keep 5-10 active
Challenge

Challenge: Install Python and Test IntelliSense

  1. Install the Python extension on the remote cluster
  2. Create test_intellisense.py
  3. Type import and verify module suggestions appear
  4. Type math. and see available functions
  5. Hover over math.sqrt to see its documentation

After typing import, a dropdown lists available modules (math, os, sys). After math., functions like sqrt, pi, ceil appear. Hovering shows the docstring and signature. If no suggestions appear, press Ctrl+Space to trigger manually, or check the status bar for a Python version indicator – the extension may still be loading. Reload with Ctrl+Shift+P > “Reload Window” if needed.

Key Points
  • Remote extensions run on Sagehen for language support; local extensions handle UI
  • Install Python, R, and Jupyter on the remote side for full language features
  • Extensions persist on Sagehen between sessions
  • Keep 5-10 extensions active to maintain VS Code performance

Content from Customization and Tips

Last updated on 2026-08-24 | Edit this page

Estimated time: 15 minutes

Overview

Questions

  • How do I customize VS Code’s appearance and keyboard shortcuts?
  • What workspace settings help HPC development?
  • How do I sync settings across machines?

Objectives

  • Customize color themes, icons, and keyboard shortcuts
  • Create workspace settings for HPC projects
  • Use Settings Sync to keep configurations consistent
  • Apply recommended settings for productive HPC work

Color Themes

  1. Press Ctrl+K Ctrl+T (or File > Preferences > Color Theme)
  2. Preview themes by arrowing through the list
  3. Press Enter to select

Popular themes for long coding sessions: Dark Modern (default), Dracula, Nord, One Dark Pro.

Install additional themes from the Extensions marketplace by searching “theme.”

File Icon Themes

File > Preferences > File Icon Theme. Icons help identify file types at a glance in the Explorer sidebar.

Keyboard Shortcuts

View and customize shortcuts at Ctrl+K Ctrl+S (or File > Preferences > Keyboard Shortcuts).

To change a shortcut:

  1. Search for the command
  2. Click the pencil icon
  3. Press your desired key combination
  4. VS Code saves it immediately

Workspace Settings

Create project-specific settings that override global defaults:

  1. In your project folder, create .vscode/settings.json
  2. Add settings:

JSON

{
    "editor.formatOnSave": true,
    "editor.autoSave": "afterDelay",
    "editor.autoSaveDelay": 2000,
    "files.trimTrailingWhitespace": true,
    "files.insertFinalNewline": true,
    "[python]": {
        "editor.defaultFormatter": "ms-python.python",
        "editor.formatOnSave": true
    },
    "terminal.integrated.scrollback": 5000
}

These settings apply only in this workspace and can be version-controlled with your project.

Settings Sync

Sync your VS Code configuration across multiple computers:

  1. Click the account icon in the bottom-left
  2. Sign in with Microsoft or GitHub account
  3. VS Code syncs extensions, settings, keybindings, and themes
Callout

Optimized Configuration for HPC Development

JSON

{
    "editor.fontSize": 13,
    "editor.formatOnSave": true,
    "files.trimTrailingWhitespace": true,
    "files.insertFinalNewline": true,
    "terminal.integrated.fontSize": 12,
    "terminal.integrated.scrollback": 5000,
    "remote.SSH.showLoginTerminal": true
}

Productivity Tips

  1. Keep the terminal visible: Resize editor so the terminal always shows
  2. Use descriptive job names: #SBATCH --job-name=analysis_v2
  3. Redirect output: 2>&1 | tee output.log saves and displays output
  4. Check resources: Run sinfo to see available nodes and partitions
  5. Use file watchers carefully: Large remote directories can slow VS Code; exclude node_modules, .git, and large data directories in settings

Additional Extensions Worth Exploring

  • Better Comments: Highlight TODO, HACK, BUG comments in code
  • Bracket Pair Colorizer: Color-code nested brackets
  • Path Intellisense: Auto-complete file paths
  • Live Share: Collaborative real-time coding
Challenge

Challenge: Personalize Your VS Code

  1. Open Command Palette (Ctrl+Shift+P) and type “Color Theme”
  2. Try three themes and pick your favorite
  3. Open Keyboard Shortcuts (Ctrl+K Ctrl+S)
  4. Search “Go to Line” and note (or customize) its shortcut
  5. Create .vscode/settings.json in your project folder with at least formatOnSave and trimTrailingWhitespace enabled

After selecting a theme via Ctrl+Shift+P > “Color Theme,” the change takes effect immediately. “Go to Line” defaults to Ctrl+G. Creating .vscode/settings.json with "editor.formatOnSave": true means your code auto-formats on every save. Changes take effect immediately without restart.

If Settings Sync is enabled, these preferences carry to other machines automatically.

Key Points
  • Customize themes with Ctrl+K Ctrl+T; customize shortcuts with Ctrl+K Ctrl+S
  • Workspace settings in .vscode/settings.json apply per-project and can be version-controlled
  • Settings Sync keeps your VS Code identical across multiple machines
  • Recommended HPC settings include format-on-save, trailing whitespace trimming, and increased terminal scrollback
