Overview

Questions

  • What storage options are available on Sagehen HPC?
  • Where should I store different types of data?
  • What are the differences between persistent and temporary storage?

Objectives

After completing this episode, participants will be able to:

  • Describe the four main storage locations on Sagehen
  • Explain the persistence and availability of each filesystem
  • Choose the appropriate storage location for different use cases

Sagehen HPC’s Storage System

Sagehen uses a hierarchical storage system designed to balance performance, reliability, and cost. The four main storage locations are:

  1. /rhome/<myusername> – Home directory (persistent, lab-shared quota)
  2. /bigdata/lab/<labname> – Lab shared storage (persistent, 1TB quota per lab)
  3. /scratch/$SLURM_JOB_ID – Job-local temporary SSD (deleted when job completes)
  4. /tmpfs/$SLURM_JOB_ID – RAM-backed temporary storage (deleted when job completes)
Sagehen Storage Architecture
+-- Persistent Storage (survives job termination)
|   +-- /rhome/<myusername>       (Home, BeeGFS, weekly snapshots)
|   +-- /bigdata/lab/<labname>      (Lab shared, BeeGFS, weekly snapshots)
|
+-- Temporary Storage (deleted when job completes)
    +-- /scratch/$SLURM_JOB_ID  (SSD-backed, very fast)
    +-- /tmpfs/$SLURM_JOB_ID    (RAM-backed, fastest)

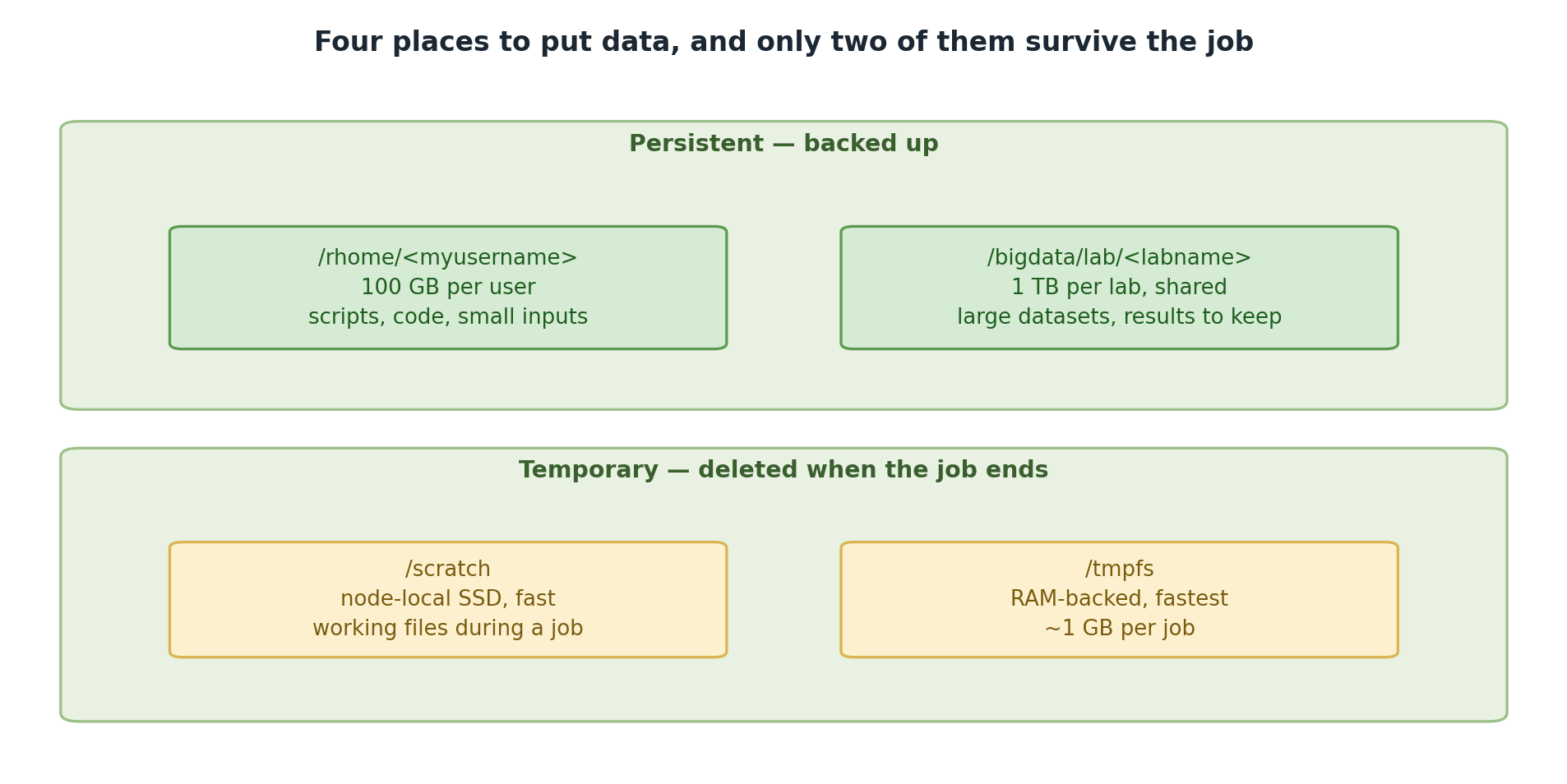

Storage on Sagehen HPC in two groups. Persistent and backed up: /rhome with 100 GB per user for scripts, code and small inputs, and /bigdata/lab per lab with 1 TB shared for large datasets and results to keep. Temporary and deleted when the job ends: /scratch, node-local SSD used for working files during a job, and /tmpfs, RAM-backed and fastest at about 1 GB per job.
Two tiers are backed up and two vanish when the job ends.
Callout

Storage Performance Tiers

  • Fastest: /tmpfs (RAM-backed, node-local)
  • Very Fast: /scratch (SSD-backed)
  • Standard: /rhome and /bigdata (network storage)

Use temporary storage for intermediate data during jobs to improve performance 5-10x.

Persistent Storage

Home Directory: /rhome/<myusername>

Your personal storage space, accessible from all nodes and OnDemand.

  • Quota: Shared with lab (included in 1TB lab quota)
  • Persistence: Permanent
  • Backup: Weekly snapshots (contact for recovery)
  • Filesystem: BeeGFS distributed filesystem
  • Best for: Source code, config files, small datasets, job scripts

Lab Shared Storage: /bigdata/lab/<labname>

Shared storage for your entire lab group.

  • Quota: 1TB per lab (shared with /rhome across all members)
  • Persistence: Permanent
  • Backup: Weekly snapshots
  • Best for: Large shared datasets, collaborative data, archived projects
Callout

Shared Quota Responsibility

/rhome and /bigdata share a single 1TB lab quota. One person filling up the quota affects everyone. Coordinate with lab members about large data storage and archive old projects regularly. Request quota increases by contacting .

Temporary Storage

Scratch: /scratch/$SLURM_JOB_USER/$SLURM_JOB_ID

Fast SSD-backed storage for intermediate data during job execution. Deleted automatically when your job completes. Use for input staging, intermediate results, and checkpoint files.

Tmpfs: /tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID

Fastest storage available, backed by node RAM. Deleted when job terminates. Limited by job memory allocation and restricted to a single node. Use for rapid read-write cycles and small working datasets.

Choosing the Right Location

Will this data survive beyond my current job?
    +-- YES
    |   +-- Will lab members need access?
    |       +-- YES --> /bigdata/lab/<labname>
    |       +-- NO  --> /rhome/<myusername>
    +-- NO (temporary data)
        +-- Does data fit in allocated memory?
            +-- YES --> /tmpfs (fastest)
            +-- NO  --> /scratch (very fast)

BeeGFS Filesystem

All Sagehen storage uses BeeGFS, a parallel distributed filesystem. Key implication: the standard du command may be inaccurate. Always use du --apparent-size or the quota_check.sh script for accurate measurements.

Challenge

Challenge: Storage Selection

For each scenario, choose the best storage location and justify your answer:

  1. A 500MB raw data file that your entire lab will analyze
  2. A 4-hour job processing 100GB of data and generating 50GB of results
  3. Python scripts and notebooks for future reference
  4. A job using 48GB of memory that needs a temporary 40GB working directory
  1. /bigdata/lab/<labname> – Needs lab-wide access and persistence
  2. /scratch for working data, copy results back to /rhome – Fast I/O, too large for RAM
  3. /rhome/<myusername> – Personal, small, needs permanent persistence
  4. /tmpfs – Fits in allocated memory, fastest possible I/O for single-node work
Key Points
  • Sagehen provides four storage locations with different persistence and performance characteristics
  • /rhome and /bigdata are persistent and share a 1TB lab quota on BeeGFS
  • /scratch and /tmpfs are temporary, deleted when the job completes
  • Choose storage based on persistence needs, access patterns, and performance requirements

Content from Checking and Managing Quotas

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How much storage can I use on Sagehen HPC?
  • How do I check my current storage usage?
  • Why does du give inaccurate results on BeeGFS?

Objectives

After completing this episode, participants will be able to: - Use quota_check.sh to monitor storage usage - Understand the difference between apparent size and block size on BeeGFS - Use du with the correct flags for accurate measurements - Identify large files and directories consuming space

Quota Structure on Sagehen HPC

Both /rhome/<myusername> and /bigdata/lab/<labname> share a lab-based quota:

  • Quota per lab: 1TB combined across home + lab storage
  • Shared responsibility: All lab members share this quota
  • Enforcement: Hard limit – cannot write new files if exceeded
  • Exceptions: Request temporary increase by contacting
Lab ABC (quota: 1TB = 1024GB)
+-- /rhome/alice       (150 GB)
+-- /rhome/bob         (120 GB)
+-- /rhome/charlie     (180 GB)
+-- /bigdata/lab/abc       (574 GB)
    Total Used: 1024 GB (at limit!)

Temporary storage (/scratch and /tmpfs) does not count against your lab quota.

A decision tree for where data should live. If it does not need to survive the job, use /scratch, node-local SSD, or /tmpfs in RAM at about 1 GB, both deleted at job end. If it must survive and is shared with your lab, use /bigdata/lab with 1 TB shared and backed up. If it must survive but is yours alone, use /rhome with 100 GB backed up.
One question decides it: does the data need to outlive the job?

Sagehen provides a dedicated script that accounts for BeeGFS:

BASH

quota_check.sh

Real output — a BeeGFS quota table with a GROUP row (your lab’s shared pool) and a User row:

Terminal output of quota_check.sh on Sagehen. A GROUP Quota section shows the lab group using 508.87 GiB of a 931.32 GiB limit with 1.16 million inodes and no inode limit. A User Quota section shows the individual user consuming 1.22 GiB with no per-user space limit shown. Both rows reference storage_pool_default.
quota_check.sh reports the lab’s group usage against the shared pool limit, then your per-user usage. The group limit is what’s enforced.

Note the enforcement model: the group (lab) row carries the hard limit on the shared pool; the user row typically shows no separate hard cap.

Using du Correctly on BeeGFS

The du command requires --apparent-size for accuracy on BeeGFS:

BASH

# Inaccurate (reports block usage)
du -sh /rhome/<myusername>
  Result: 156 GB

# Accurate (reports actual data size)
du -sh --apparent-size /rhome/<myusername>
  Result: 150 GB

Always use du --apparent-size on Sagehen.

Finding Large Files and Directories

Largest directories:

BASH

du --apparent-size -h /rhome/<myusername> | sort -h

Largest individual files:

BASH

find /rhome/<myusername> -type f -printf '%s %p\n' | sort -rn | head -20

What Happens When You Exceed Quota

At 100% quota, you cannot write new files:

BASH

$ cp large_file.dat /rhome/<myusername>/
cp: cannot create regular file: Disk quota exceeded

You can still read files, list directories, and run jobs that only read from disk. But you cannot write, modify, or save job outputs.

To request a quota increase, contact with your lab name, justification, specific data size needed, and cleanup timeline.

Challenge

Challenge: Check Your Quota

  1. Run quota_check.sh and record your current usage

  2. Find your 5 largest directories:

    BASH

    du --apparent-size -h /rhome/<myusername> | sort -h | tail -5

  3. Compare your home directory usage with lab storage

Are you above or below 80% usage? Which is larger: your home directory or lab storage?

Sample output:

BASH

$ quota_check.sh
Combined Usage:
  Total Used:   724.5 GB
  Total Quota:  1024 GB
  Percent:      70.7%
Status: OK (below quota)

Your specific numbers will vary. If above 80%, consider cleanup strategies covered in the next episode.

Key Points
  • Use quota_check.sh for official quota monitoring on Sagehen
  • Always use du --apparent-size on BeeGFS for accurate size measurements
  • Your lab shares a 1TB quota across all members and both /rhome and /bigdata
  • You cannot write files if quota is exceeded – monitor regularly
  • Temporary storage (/scratch, /tmpfs) does not count against quota

Content from Quota Cleanup Strategies

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do I free up space when approaching my quota?
  • What are effective strategies for reducing storage usage?
  • How do I troubleshoot common quota issues?

Objectives

After completing this episode, participants will be able to: - Implement regular cleanup routines - Use compression to reduce storage usage - Identify and remove redundant files - Troubleshoot common quota problems

Regular Cleanup

Run a monthly maintenance routine:

BASH

# Check quota
quota_check.sh

# Find old files (not accessed in 90 days)
find /rhome/<myusername> -type f -atime +90 -exec ls -lh {} \;

# Archive and remove old project
tar czf /bigdata/lab/<labname>/archive_2025_03.tar.gz /rhome/<myusername>/old_project/
rm -rf /rhome/<myusername>/old_project/

Compression

Compress old data to reclaim space:

BASH

tar czf project_archive.tar.gz project_name/

# Check compression ratio
du --apparent-size -h project_archive.tar.gz
du --apparent-size -h project_name/

Typical compression for text/CSV data: 5-20x smaller.

Identifying Redundancy

Remove backup and temporary files:

BASH

# Find backup files
find /rhome/<myusername> -name "*.bak" -o -name "*_old" -o -name "*~"

# Remove them
find /rhome/<myusername> -name "*.bak" -delete

Avoid storing multiple manual copies of the same project. Use git version control instead:

BASH

cd /rhome/<myusername>/project
git init
git add .
git commit -m "Initial version"

Monitoring and Alerts

Your lab receives email notifications at 80%, 95%, and 100% quota usage. You can also monitor quota during file transfers:

BASH

watch -n 5 quota_check.sh
Callout

Quota Management Checklist

  • Monthly: Run quota_check.sh and review usage
  • Quarterly: Clean up files older than 6 months
  • After projects: Archive and remove old project directories
  • Before large jobs: Verify available quota
  • For temporary work: Use /scratch (does not count against quota)

Troubleshooting Common Issues

“Disk quota exceeded” but du shows space

Your lab’s combined quota may be full even if your home looks fine. Run quota_check.sh to see the combined usage. Also check hidden directories:

BASH

du --apparent-size -h /rhome/<myusername>/.cache
du --apparent-size -h /rhome/<myusername>/.local

du reports different size than quota_check.sh

You likely forgot the --apparent-size flag. Without it, du reports block usage on BeeGFS, which differs from actual data size.

Deleted files but usage unchanged

A running process may still hold the file handle open:

BASH

lsof /rhome/<myusername>/largefile.dat
kill <process_id>
Challenge

Challenge: Calculate Storage Efficiency

  1. Pick a directory and measure its size:

    BASH

    du --apparent-size -sh /rhome/<myusername>/project1

  2. Calculate what portion of your 1TB quota it uses

  3. Identify at least one file or directory you could safely delete or compress

Example:

Project directory: 10 GB
Current quota: 1024 GB
Percentage used: 10/1024 = 0.98%

Actions to consider: delete .bak files, compress older project directories, move shared data to /bigdata, remove duplicate datasets.

Key Points
  • Regular cleanup prevents quota-related disruptions
  • Compression can reduce text-based data by 5-20x
  • Use git instead of manual versioning to avoid duplicate copies
  • Always use du --apparent-size to get accurate sizes on BeeGFS
  • Hidden directories like .cache and .local can consume significant space

Content from Transferring Files with OnDemand

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I transfer small files without the command line?
  • What are the limitations of web-based file transfer?

Objectives

After completing this episode, participants will be able to:

  • Access the OnDemand file manager interface
  • Upload and download files through the web browser
  • Create directories and organize files
  • Understand when web transfer is appropriate vs. other methods

OnDemand Web Interface

The OnDemand web interface at https://ondemand.hpc.pomona.edu provides graphical file management without command-line tools.

Best for: Small files (under 500 MB), interactive browsing, one-off transfers.

Limitations: File size limit (~2 GB per upload), slower than rsync, not suitable for batch operations.

Callout

When to Use Web vs. Command-Line

Use OnDemand for small files under 500 MB and interactive file browsing. Use rsync for files larger than 500 MB, batch operations, and automated transfers.

Accessing OnDemand

  1. Navigate to https://ondemand.hpc.pomona.edu
  2. Login with your Pomona College credentials
  3. Approve the Duo two-factor authentication push
  4. Click Files in the navigation menu

The file manager shows your home directory by default with buttons for Home, New File, New Dir, and Upload.

Uploading Files

  1. Navigate to the destination folder (e.g., /rhome/<myusername>)
  2. Click the Upload button
  3. Select file(s) from your computer
  4. Wait for the progress bar to complete

For multiple files, hold Ctrl (Windows) or Cmd (Mac) to select several at once. To upload a directory structure, create the folders on Sagehen HPC first, then upload files into each.

For files larger than 500 MB, use rsync instead:

BASH

rsync -avhP ~/my_large_file.tar.gz <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/

Downloading Files

  1. Locate the file in the file manager
  2. Right-click and select Download
  3. The file saves to your Downloads folder

For directories, create a compressed archive first via SSH, then download the archive:

BASH

tar czf project_backup.tar.gz my_project/

Organizing Files

  • Create directory: Click “+ New Dir”, enter name
  • Create file: Click “+ New File”, enter name
  • Delete: Right-click, select Delete (usually permanent)
  • Rename: Right-click, select Rename (if available)
Challenge

Challenge: Upload and Download

  1. Create a folder structure on Sagehen:
    • /rhome/<myusername>/workshop/data/
    • /rhome/<myusername>/workshop/results/
  2. Upload any file from your computer to the data/ folder
  3. Refresh the browser (F5) and verify it appears
  4. Download the file back to your computer and confirm it matches

After completing the challenge, you should see your uploaded file in the OnDemand file manager under /rhome/<myusername>/workshop/data/ with the correct file size. The downloaded copy should be identical to the original.

If the file does not appear after upload, try refreshing the page. If upload fails, check that the file is under 2 GB and your quota is not exceeded.

Key Points
  • OnDemand at https://ondemand.hpc.pomona.edu provides GUI-based file management
  • Suitable for small files (under 500 MB) and interactive browsing
  • Always refresh the browser after uploads to verify success
  • Use rsync for large files or batch operations

Content from SFTP Setup with FileZilla

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What is FileZilla and why use it for file transfers?
  • How do I install and configure FileZilla?
  • How do I connect to Sagehen HPC with Duo authentication?

Objectives

After completing this episode, participants will be able to: - Install FileZilla on their personal computer - Connect to Sagehen’s SFTP server with Duo authentication - Save connection settings in Site Manager for future use

Why FileZilla?

FileZilla is a free, open-source graphical SFTP client with side-by-side local and remote directory views, drag-and-drop transfers, and resume capability for interrupted transfers.

Callout

FileZilla vs. rsync

Choose FileZilla for interactive transfers under 1 GB when you want a graphical interface and to browse both directories simultaneously. Choose rsync for large files over 1 GB, batch transfers, and automated workflows.

Installing FileZilla

Windows

  1. Visit filezilla-project.org
  2. Download and run the installer
  3. Follow the installation wizard

macOS

  1. Download the macOS version from filezilla-project.org
  2. Open the .dmg file
  3. Drag FileZilla to Applications

Linux

BASH

# Ubuntu/Debian
sudo apt-get install filezilla

# Fedora/RHEL
sudo dnf install filezilla

Connecting to Sagehen HPC

Quick Connect

In the Quick Connect bar at the top of FileZilla:

  • Host: sagehen.hpc.pomona.edu
  • Username: Your Pomona username
  • Password: Your Pomona password
  • Port: 22

Click Quickconnect. When prompted for Duo 2FA, approve the push notification on your phone. The remote file panel then shows your home directory.

For regular connections, save a site profile:

  1. Menu > File > Site Manager (or Ctrl+S)
  2. Click New Site, name it “Sagehen”
  3. Set Host: sagehen.hpc.pomona.edu
  4. Protocol: SFTP - SSH File Transfer Protocol
  5. Logon Type: Ask for password
  6. User: your username
  7. Click Connect

This saves the connection so you only need to click Connect and enter your password each time.

Duo Authentication Flow

  1. Enter username and password in FileZilla
  2. SSH connection initiates
  3. Duo push notification arrives on your phone
  4. Approve on your phone
  5. Connection established

If no Duo prompt appears, check your phone for delayed notifications, try reconnecting, or contact .

Challenge

Challenge: Connect to Sagehen HPC

  1. Install FileZilla on your computer
  2. Connect using Quick Connect:
    • Host: sagehen.hpc.pomona.edu, Port: 22
    • Enter your Pomona credentials
    • Approve Duo 2FA
  3. Verify the remote panel shows your home directory files
  4. Save the connection in Site Manager for future use

FileZilla should show “Connected to sagehen.hpc.pomona.edu” in the title bar and display your files from /rhome/<myusername> in the remote panel. If connection fails, verify the hostname is exactly sagehen.hpc.pomona.edu, port is 22, and check for Duo notification on your phone.

Key Points
  • FileZilla is a free graphical SFTP client for interactive file transfers
  • Connect to sagehen.hpc.pomona.edu on port 22 using SFTP protocol
  • Duo 2FA is required for all connections
  • Save connection settings in Site Manager for convenience

Content from FileZilla File Operations

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I transfer files using FileZilla’s drag-and-drop interface?
  • How do I monitor transfer progress?
  • How do I manage files on Sagehen HPC through FileZilla?

Objectives

After completing this episode, participants will be able to: - Transfer files using drag-and-drop - Upload and download directories - Monitor transfer progress and speed - Manage remote files (rename, delete, create directories)

The left panel shows your local computer; the right panel shows Sagehen. Double-click folders to enter them, or type a path directly in the path field.

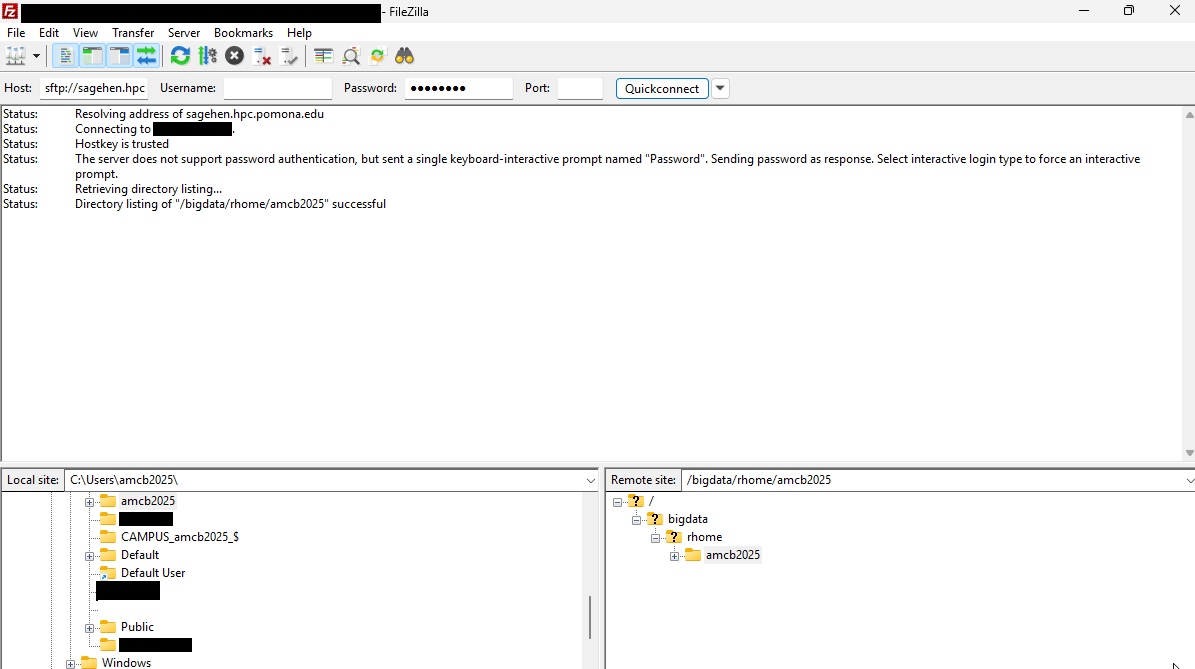

The FileZilla client connected to sagehen.hpc.pomona.edu over SFTP. The status log confirms the hostkey is trusted and the remote directory listing succeeded. The window is split into a local Windows file tree on the left and the remote Sagehen directory tree on the right.
FileZilla after Quickconnect: your computer on the left, your Sagehen HPC home on the right (it appears as /bigdata/rhome/… — the same place /rhome points to).

To access lab storage, type /bigdata/lab/<labname> in the remote path field and press Enter.

Uploading Files

Drag and drop: Locate a file in the local panel (left), drag it to the remote panel (right), and release. The transfer begins immediately.

Right-click menu: Right-click a file in the local panel and select Upload.

Multiple files: Hold Ctrl (or Cmd on Mac) and click to select multiple files, then drag them all to the remote panel. FileZilla queues and transfers them in sequence.

Directories: Right-click a directory in the local panel and select Upload. FileZilla uploads the directory and all its contents, preserving the folder structure.

Downloading Files

Drag files from the remote panel (right) to the local panel (left), or right-click a remote file and select Download.

Transfer Monitoring

The bottom panel shows active and queued transfers with real-time speed and progress:

Speed: 12.3 MB/s
Time remaining: 2 minutes 15 seconds
Data transferred: 100 MB / 250 MB (40%)

Typical speeds: 1-5 MB/s (slower connection), 5-20 MB/s (good), 20+ MB/s (fast).

Pausing and Resuming

Right-click an active transfer to Pause. Right-click a paused transfer to Resume from the same position.

File Management

  • Create directory: Right-click in remote panel > Create directory
  • Rename: Right-click file > Rename
  • Delete: Right-click file > Delete (permanent, use with caution)

Verifying Transfers

After upload, compare file sizes between local and remote:

BASH

# On local machine
ls -lh myfile.dat

# On Sagehen (via SSH)
ls -lh /rhome/<myusername>/myfile.dat
Callout

Compress Before Transferring

Save transfer time by compressing files first:

BASH

tar czf myproject.tar.gz myproject/

Compression typically reduces text/CSV data 5-20x. Then transfer the compressed file and decompress on Sagehen with tar xzf myproject.tar.gz.

Troubleshooting

  • Transfer hangs: Wait, then try Pause/Resume. For very large files, use rsync instead
  • Files not appearing: Press F5 to refresh the remote view
  • Connection refused: Verify hostname is sagehen.hpc.pomona.edu port 22
  • Authentication failed: Verify Pomona credentials, check for Duo notification
Challenge

Challenge: Round-Trip Transfer

  1. Navigate the local panel to a file on your computer (1-100 MB)
  2. In the remote panel, create a directory: filezilla_test
  3. Upload the file to filezilla_test/
  4. Note the transfer speed from the progress panel
  5. Download the file back and verify the size matches

Expected result: the file appears in /rhome/<myusername>/filezilla_test/ with matching size. Transfer speed depends on your network – typical range is 5-15 MB/s. The downloaded copy should be identical to the original.

Key Points
  • Drag-and-drop makes FileZilla transfers intuitive for uploads and downloads
  • The transfer queue shows real-time progress, speed, and estimated time
  • Compress files before transfer to reduce time significantly
  • Good for interactive transfers up to several hundred MB; use rsync for larger files

Content from Introduction to rsync

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What is rsync and why is it preferred for large file transfers?
  • How do I upload and download files with rsync?
  • What do the common rsync flags mean?

Objectives

After completing this episode, participants will be able to:

  • Explain rsync’s advantages over other transfer methods
  • Use rsync to upload files to Sagehen HPC
  • Use rsync to download files from Sagehen
  • Choose appropriate flags for different transfer scenarios

Why rsync?

rsync (remote synchronization) is a command-line tool designed for efficient, reliable file transfer. Key advantages:

  1. Incremental: Only transfers changed data on subsequent runs
  2. Resumable: Can resume interrupted transfers with -P flag
  3. Efficient: Compresses data during transfer with -z flag
  4. Scriptable: Ideal for automated and batch operations

rsync comes pre-installed on macOS and Linux.

Callout

Windows Users: Git Bash Does NOT Include rsync

If you’ve been following along in Git Bash, rsync will fail with command not found – Git Bash simply doesn’t ship it, and rsync must be installed on both ends of a transfer. Your options:

  1. Use WSL (Windows Subsystem for Linux): install it once with wsl --install in an Administrator PowerShell; every command in this episode then works unchanged inside WSL.
  2. Skip rsync locally and use scp or FileZilla (earlier episodes) for Windows-to-Sagehen transfers.
  3. rsync still works on Sagehen itself (e.g. copying between /rhome and /bigdata in an SSH session), so the server-side examples below work for everyone.

Basic Syntax

Upload to Sagehen:

BASH

rsync -avhP local_file <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/destination/

Download from Sagehen:

BASH

rsync -avhP <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/source_file local_destination/

Essential Flags

Flag Meaning When to Use
-a Archive mode (preserves permissions, timestamps) Always
-v Verbose output Debugging
-h Human-readable sizes (MB, GB) Always
-P Show progress + keep partial files for resume Large files
-r Recursive (directory contents) Directories
-z Compress during transfer Slow networks
Callout

Trailing Slashes Matter

BASH

# WITH trailing slash: copies CONTENTS of myproject into /dest/
rsync -avhP ~/myproject/ user@host:/dest/

# WITHOUT trailing slash: copies the DIRECTORY itself, creating /dest/myproject/
rsync -avhP ~/myproject user@host:/dest/

This is the most common rsync mistake. Use trailing slashes when you want to transfer directory contents.

Uploading a Single File

BASH

rsync -avhP ~/mydata.csv <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/data/

Output:

mydata.csv
    50,000,000 100%   15.23MB/s    0:00:03 (xfr#1, to-chk=0/1)

sent 50,001,234 bytes  received 35 bytes  13,333,664 bytes/sec
total size is 50,000,000  speedup is 1.00

Uploading a Directory

BASH

rsync -avhPr ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/projects/myproject/

All files and subdirectories are transferred recursively.

Downloading Files

BASH

rsync -avhP <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/results/output.h5 ~/Downloads/

Resuming Interrupted Transfers

The -P flag is essential. If a transfer is interrupted, simply run the same command again:

BASH

# Original command (interrupted by network drop)
rsync -avhP ~/large_file.tar.gz <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/

# Resume by running the exact same command
rsync -avhP ~/large_file.tar.gz <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/

rsync detects the existing partial file and resumes from where it stopped.

Incremental Synchronization

On the second run, rsync only transfers new or changed files:

BASH

# First run: transfers all files
rsync -avhPr ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

# Add a new file locally, then run again
rsync -avhPr ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/
# Only the new file transfers; unchanged files are skipped
Challenge

Challenge: First rsync Transfer

  1. Create a 10 MB test file:

    BASH

    dd if=/dev/zero of=test_data.bin bs=1M count=10

  2. Upload to Sagehen:

    BASH

    rsync -avhP test_data.bin <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/

  3. Verify on Sagehen:

    BASH

    ls -lh /rhome/<myusername>/test_data.bin

What was your transfer speed? Does the file size match?

Expected output:

test_data.bin
    10,485,760 100%    8.34MB/s    0:00:01 (xfr#1, to-chk=0/1)

On Sagehen, ls -lh should show 10M. The file transferred completely.

Key Points
  • rsync is the fastest and most reliable method for large file transfers
  • Always use -P for large files to enable resume capability
  • The trailing slash on source paths is critical: source/ vs source
  • rsync automatically skips unchanged files on subsequent runs
  • Use -avhP as your standard flag combination

Content from Advanced rsync Workflows

Last updated on 2026-08-24 | Edit this page

Overview

Questions

  • How do I exclude certain files from rsync transfers?
  • How do I safely delete remote files not present locally?
  • How can I use rsync in SLURM job scripts?

Objectives

After completing this episode, participants will be able to: - Use exclude patterns to skip unwanted files - Preview operations with dry-run before executing - Safely use the –delete flag with proper safeguards - Integrate rsync into SLURM job scripts

Exclude Patterns

Skip files you do not want to transfer:

BASH

rsync -avhPr --exclude='.git' --exclude='*.pyc' --exclude='__pycache__' \
  ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

Common exclusions:

BASH

--exclude='*.pyc'        # Python compiled files
--exclude='__pycache__'  # Python cache directories
--exclude='.git'         # Git history
--exclude='.DS_Store'    # macOS metadata files
--exclude='*.tmp'        # Temporary files
--exclude='.venv'        # Virtual environments

Include Only Specific Files

Transfer only matching file types by combining include and exclude:

BASH

rsync -avhPr --include='*.txt' --exclude='*' \
  ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

Dry Run (Preview)

See what rsync would do without actually transferring anything:

BASH

rsync -avhPr --dry-run ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

Output includes (DRY RUN) and shows files that would transfer. Always use this before any destructive operation.

Deleting Remote Files

The --delete flag removes files from the destination that do not exist in the source:

BASH

# DANGEROUS: Always dry-run first!
rsync -avhPr --delete --dry-run ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

# If the dry-run output looks correct, run without --dry-run
rsync -avhPr --delete ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/
Callout

Warning: –delete Can Destroy Data

Running --delete with an empty source directory will delete everything on the remote side. Always preview with --dry-run first.

Compression

For slow connections, compress data during transfer:

BASH

rsync -avhPrz ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

Compression helps for text-heavy files but provides no benefit for already-compressed formats (images, videos, archives).

Bandwidth Limiting

Avoid saturating your network by limiting transfer speed:

BASH

rsync -avhPr --bwlimit=10m ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/

Units: k = kilobytes/s, m = megabytes/s.

Rsync in Job Scripts

Use rsync to stage data into fast temporary storage during SLURM jobs:

BASH

#!/bin/bash
#SBATCH --job-name=data_process
#SBATCH --time=04:00:00

# Copy input to fast scratch
rsync -avhP /rhome/<myusername>/input.dat /scratch/$SLURM_JOB_USER/$SLURM_JOB_ID/

# Run computation on scratch
cd /scratch/$SLURM_JOB_USER/$SLURM_JOB_ID/
./myanalysis input.dat

# Copy results back to permanent storage
rsync -avhP output.dat /rhome/<myusername>/results/

Common Mistakes

  1. Wrong trailing slash: rsync ~/myproject host:/dest/ creates /dest/myproject/, while rsync ~/myproject/ host:/dest/ puts contents directly in /dest/
  2. Forgetting -P: Without -P, large interrupted transfers cannot resume
  3. Using –delete carelessly: Always dry-run first
  4. Forgetting -r for directories: Without -r, subdirectories are not transferred (though -a implies -r)
Challenge

Challenge: Selective Sync with Dry Run

  1. Create a local project with mixed files:

    BASH

    mkdir -p ~/testproject/data ~/testproject/scripts
echo "data" > ~/testproject/data/data.txt
echo "print('hello')" > ~/testproject/scripts/main.py
echo "cache" > ~/testproject/scripts/main.pyc

  2. Dry-run an rsync excluding .pyc files:

    BASH

    rsync -avhPr --exclude='*.pyc' --dry-run ~/testproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/testproject/

  3. Verify that main.pyc is not listed in the dry-run output

  4. Run without --dry-run to actually transfer

The dry-run should show data/data.txt and scripts/main.py but not scripts/main.pyc. The (DRY RUN) tag confirms no files were actually transferred. Running without --dry-run completes the transfer of only the non-excluded files.

Key Points
  • Use --exclude patterns to skip unwanted files like .git, .pyc, and caches
  • Always use --dry-run before --delete to prevent accidental data loss
  • Compression (-z) helps on slow networks but not for already-compressed files
  • rsync integrates well into SLURM job scripts for staging data to fast storage

Content from Using Scratch Storage in Jobs

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • Why should I use temporary storage during jobs?
  • How do I access /scratch in my job scripts?
  • How do I safely copy data in and out of scratch?
  • What are the failure modes that lose results, and how do I prevent them?

Objectives

After completing this episode, participants will be able to: - Explain the performance benefits of scratch storage - Access scratch storage using SLURM environment variables - Implement the copy-in, compute, copy-out pattern - Avoid losing results by copying back before the job ends - Diagnose I/O bottlenecks that scratch can fix

Why Use Scratch?

Scratch storage provides significant performance advantages because the data lives on local NVMe SSDs inside the compute node, not on the cluster’s shared NFS mounts:

/rhome or /bigdata:  ~20-50 MB/s   (network filesystem, contended)
/scratch:            ~100-300 MB/s  (local SSD, dedicated to your job)

For a job reading 10 GB of data, this means completing in 30-50 seconds on scratch versus 200+ seconds on /rhome: a 4-7x speedup. For machine learning, simulation, and any pipeline that re-reads the same files thousands of times during training, the cumulative savings are even larger.

The performance gap matters most when many jobs are reading from /bigdata simultaneously. BeeGFS spreads data across several storage servers, but that bandwidth is still shared between everyone using the filesystem. If five jobs on five different nodes are all reading from /bigdata/lab/<labname>/ at once, each gets a fraction of the available bandwidth. /scratch is local: each job has the full disk to itself.

A five-step flow through a job. The job starts, inputs are copied from /bigdata to /scratch, computation reads and writes /scratch, results are copied back from /scratch to /bigdata, and then the job ends and /scratch is wiped. A warning states that anything still only on /scratch when the job ends is gone, so results must be copied back before the script exits, including on failure.
Copy in, work on the fast local disk, copy out before the job ends.
Callout

Scratch Is Non-Persistent

Data on /scratch is deleted when your job completes. Always copy results back to /rhome or /bigdata before the job ends. If you forget, your results are permanently lost.

There is no “but I had it five minutes ago” recovery. The cleanup is immediate when SLURM marks the job complete. Build the copy-out step into every script that uses scratch, and verify it before requesting time on a long run.

Accessing Scratch in Job Scripts

SLURM provides environment variables for constructing scratch paths:

BASH

$SLURM_JOB_USER    # Your username
$SLURM_JOB_ID      # Unique job ID number

Full scratch path: /scratch/$SLURM_JOB_USER/$SLURM_JOB_ID

This per-job directory naming matters. If you used /scratch/alice/work/ and submitted ten jobs at once, they would all write to the same directory and trash each other’s intermediate files. The $SLURM_JOB_ID keeps each job’s workspace isolated.

The Standard Pattern: Copy-In, Compute, Copy-Out

BASH

#!/bin/bash
#SBATCH --job-name=process_data
#SBATCH --time=04:00:00
#SBATCH --mem=32G

# Set up paths
SCRATCH_DIR=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $SCRATCH_DIR

echo "=== Stage 1: Copy input data to scratch ==="
rsync -avhP /rhome/<myusername>/input/*.dat $SCRATCH_DIR/

echo "=== Stage 2: Run computation ==="
cd $SCRATCH_DIR
./myanalysis *.dat

echo "=== Stage 3: Copy results back ==="
rsync -avhP $SCRATCH_DIR/output*.h5 /rhome/<myusername>/results/

echo "=== Job complete ==="

The pattern has three deliberate stages and each carries a lesson. Stage 1 stages all input data so subsequent reads hit local SSD instead of the network. Stage 2 does the work in scratch where I/O is fast. Stage 3 copies results back to persistent storage before the SLURM job ends, ensuring nothing is lost when scratch is cleaned.

rsync -avhP is preferred over cp because it shows progress, preserves attributes, and is restartable if it gets interrupted. The -h makes sizes human-readable and -P shows progress and supports partial transfers.

Checking Available Space

Before copying large datasets, verify space is available:

BASH

SCRATCH_DIR=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $SCRATCH_DIR

AVAIL_SPACE=$(df $SCRATCH_DIR | tail -1 | awk '{print $4}')
NEEDED_SPACE=$((5 * 1024 * 1024))  # 5 GB in KB

if [ $AVAIL_SPACE -lt $NEEDED_SPACE ]; then
    echo "ERROR: Not enough space on scratch"
    exit 1
fi

This is most useful for jobs that copy a few hundred GB of data. For smaller jobs, the check is overkill. The key idea: failing fast at job start is much cheaper than failing four hours into a run because scratch filled up halfway through.

Multi-Stage Pipelines

Chain multiple processing stages on scratch to avoid round-tripping through NFS:

BASH

#!/bin/bash
#SBATCH --job-name=pipeline
#SBATCH --time=08:00:00

SCRATCH_DIR=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $SCRATCH_DIR
cd $SCRATCH_DIR

rsync -avhP /rhome/<myusername>/raw_data/ $SCRATCH_DIR/input/
./preprocess input/ -o preprocessed/
./analyze preprocessed/ -o analysis/

# Copy all results back
rsync -avhP analysis/ /rhome/<myusername>/results/analysis/

The intermediate preprocessed/ directory never leaves scratch. It does not need to: the next stage reads it locally. This pattern is the single biggest performance win you can get from rewriting a multi-stage pipeline on HPC.

Real-World Example: Machine Learning

BASH

#!/bin/bash
#SBATCH --job-name=train_model
#SBATCH --time=04:00:00
#SBATCH --gpus=1
#SBATCH --mem=32G

SCRATCH=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $SCRATCH

rsync -avhP /rhome/<myusername>/training_data.h5 $SCRATCH/
cd $SCRATCH
python train.py --data training_data.h5 --output model.pkl

# Save results to permanent storage
rsync -avhP model.pkl /rhome/<myusername>/results/

For ML training in particular, scratch is essentially mandatory. PyTorch DataLoaders with num_workers > 0 issue many parallel reads, and NFS handles parallel reads from one client poorly. Reading from local SSD avoids GPU starvation entirely.

Callout

Failure modes that silently lose results

The two failure modes that bite people, in order of frequency:

The script’s compute step fails, the copy-out step is skipped (because of set -e or just script flow), and scratch gets cleaned. Mitigation: always run the copy-out unconditionally. Use a trap or an if block, but make sure it executes even on failure.

The job hits its time limit during the compute step. SLURM kills it; copy-out never runs. Mitigation: budget extra time for copy-out, and consider a signal directive that gives your script a few minutes’ warning before the timeout.

BASH

#SBATCH --signal=B:USR1@300   # send USR1 5 minutes before timeout

trap 'rsync -avhP results/ /rhome/$USER/results/; exit' USR1
Challenge

Challenge: Scratch Performance Test

Create two job scripts: one writing to /rhome and one to /scratch:

Without scratch:

BASH

#!/bin/bash
#SBATCH --job-name=no_scratch
#SBATCH --time=00:05:00

cd /rhome/<myusername>
time dd if=/dev/zero of=test_1gb.dat bs=1M count=1024
rm test_1gb.dat

With scratch:

BASH

#!/bin/bash
#SBATCH --job-name=with_scratch
#SBATCH --time=00:05:00

SCRATCH=/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $SCRATCH
cd $SCRATCH
time dd if=/dev/zero of=test_1gb.dat bs=1M count=1024

Compare the “real” time from each. How much faster was scratch?

Typical results:

Without scratch: real 0m12.456s
With scratch:    real 0m3.821s
Improvement:     3.3x faster

For a 4-hour I/O-intensive job, this difference multiplies significantly: 12 minutes saved per GB of throughput, or roughly an hour saved per 5 GB of working set.

The result varies with cluster load: when /bigdata is contended by many simultaneous users, the gap can stretch to 10x or more.

Challenge

Challenge: Diagnose a Lost Result

A graduate student reports that her 6-hour SLURM job ran successfully (final output line: “Analysis complete”), but the result file analysis_summary.csv is nowhere to be found in her home directory. List two likely explanations and how to fix each for next time.

Explanation 1: the script wrote to /scratch/$USER/$SLURM_JOB_ID/ but never copied the result back to /rhome or /bigdata. The file was deleted when SLURM cleaned scratch. Fix: add an rsync step at the end of the script. Check the SLURM output file (slurm-JOBID.out) for any errors near the end.

Explanation 2: the script wrote to a relative path (./analysis_summary.csv) without cd-ing first. The file is in whatever directory sbatch was invoked from, which may not be where she is looking. Fix: use absolute paths or explicit cd at the start.

In both cases, find /rhome/$USER /bigdata -name "analysis_summary.csv" -mtime -1 will quickly locate any candidate file from the last 24 hours.

Key Points
  • Scratch (/scratch/$SLURM_JOB_USER/$SLURM_JOB_ID) provides 4-7x faster I/O than /rhome
  • Scratch is deleted when your job completes; always copy results back unconditionally
  • Use the copy-in, compute, copy-out pattern for all I/O-intensive jobs
  • Multi-stage pipelines should keep intermediate files on scratch, not round-trip through NFS
  • Check available space before copying large datasets to fail fast
  • Use a trap with --signal to copy results out even if the job hits its time limit
  • ML training is essentially mandatory on scratch because of DataLoader parallel reads

Content from Using tmpfs RAM Storage

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • When should I use /tmpfs instead of /scratch?
  • How do I use RAM-backed storage safely in job scripts?
  • What are the limitations of tmpfs?

Objectives

After completing this episode, participants will be able to: - Explain the difference between /scratch and /tmpfs - Use /tmpfs for memory-intensive I/O workloads - Account for memory overhead when sizing tmpfs usage - Implement defensive patterns to prevent data loss

What Is tmpfs?

/tmpfs is RAM-backed storage – the fastest storage available on Sagehen. Data is stored directly in node memory, providing speeds over 1000 MB/s compared to 100-300 MB/s for scratch.

Key constraints: - Limited to your job’s memory allocation - Single compute node only (not multi-node) - Deleted immediately when job terminates

When to Use tmpfs vs. Scratch

Does your working data fit in allocated memory?
    +-- YES, and single-node job
    |   +-- Use /tmpfs (fastest)
    +-- NO, or multi-node job
        +-- Use /scratch (very fast, larger capacity)
Aspect /scratch /tmpfs
Speed Very fast (SSD) Fastest (RAM)
Size limit Disk available Job memory allocation
Persistence Deleted when job completes Deleted when job completes
Multi-node Yes No (single node only)
Best for Large working datasets Small, rapid read-write data

Using tmpfs in Job Scripts

BASH

#!/bin/bash
#SBATCH --job-name=intensive
#SBATCH --time=01:00:00
#SBATCH --nodes=1
#SBATCH --mem=64G

TMPFS=/tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $TMPFS

# Copy small input (must fit in available memory)
cp /rhome/<myusername>/small_config.json $TMPFS/

# Build index in RAM-backed storage
./build_index /rhome/<myusername>/reference.fasta -o $TMPFS/index/

# Run analysis using fast in-memory data
./analyze -index $TMPFS/index/ -query /rhome/<myusername>/queries.fasta \
    -o /rhome/<myusername>/results/output.txt
Callout

Planning Memory for tmpfs

When using /tmpfs, account for OS and application overhead: - If you request --mem=48G, allocate only ~40GB to tmpfs - Leave headroom for system processes and your application’s memory usage - Monitor with free during development runs

Defensive Job Script Pattern

Always ensure results are copied back before the job ends:

BASH

#!/bin/bash
#SBATCH --job-name=safe_tmpfs
#SBATCH --time=02:00:00
#SBATCH --mem=32G

set -e  # Exit on any error

TMPFS=/tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID
HOME_DIR=/rhome/<myusername>
RESULTS=$HOME_DIR/results_$(date +%Y%m%d_%H%M%S)
mkdir -p $TMPFS $RESULTS

# Trap errors
trap 'echo "ERROR at line $LINENO"; exit 1' ERR

# Computation in tmpfs
cd $TMPFS
./analysis > output.dat

# CRITICAL: Copy before job ends
rsync -avhP $TMPFS/output.dat $RESULTS/ || { echo "Copy failed!"; exit 1; }

echo "Success: Results saved to $RESULTS"

Common Mistakes

Forgetting to copy results back

BASH

# WRONG: output.dat disappears when job ends
cd /tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID
./analysis > output.dat
# Job ends -- data is gone!

# CORRECT: copy before job ends
cd /tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID
./analysis > output.dat
cp output.dat /rhome/<myusername>/results/

Exceeding memory allocation

If your data plus application memory exceeds the --mem allocation, the job will be killed by SLURM. Plan conservatively.

Challenge

Challenge: Design a tmpfs Job Script

Write a job script for this scenario: You have a 5 GB reference index that needs rapid random access during a 1-hour analysis. The analysis itself uses about 8 GB of RAM.

Your script should: 1. Request appropriate memory (index + application + overhead) 2. Copy the index to tmpfs 3. Run the analysis 4. Copy results back to permanent storage

BASH

#!/bin/bash
#SBATCH --job-name=fast_analysis
#SBATCH --time=01:00:00
#SBATCH --nodes=1
#SBATCH --mem=20G  # 5GB index + 8GB app + 7GB overhead

set -e

TMPFS=/tmpfs/$SLURM_JOB_USER/$SLURM_JOB_ID
mkdir -p $TMPFS

# Copy index to fast RAM storage
rsync -avhP /rhome/<myusername>/reference_index/ $TMPFS/index/

# Run analysis with RAM-backed index
./analyze -index $TMPFS/index/ -o $TMPFS/results.txt

# Copy results back before job ends
rsync -avhP $TMPFS/results.txt /rhome/<myusername>/results/

The 20 GB memory request covers the 5 GB index, 8 GB application, and 7 GB of overhead for the OS and filesystem.

Key Points
  • /tmpfs is RAM-backed storage providing the fastest I/O on Sagehen HPC
  • Limited by job memory allocation and restricted to single-node jobs
  • Data on /tmpfs is deleted immediately when the job completes
  • Always copy results to permanent storage before the job ends
  • Account for OS overhead when planning tmpfs memory usage

Content from Data Organization Best Practices

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How should I organize my data on Sagehen HPC?
  • What naming conventions should I follow?
  • How do I share data effectively with collaborators?

Objectives

After completing this episode, participants will be able to: - Design efficient directory structures for research projects - Apply meaningful naming conventions - Set correct file permissions for collaboration - Document data with README files

Directory Structure

Organize data hierarchically by project and purpose:

/rhome/<myusername>/
+-- projects/
|   +-- project_alpha/
|   |   +-- data/
|   |   |   +-- raw/          (original, unmodified data)
|   |   |   +-- processed/    (cleaned, transformed data)
|   |   +-- code/             (scripts and programs)
|   |   +-- results/          (output, figures, statistics)
|   |   +-- README.md
|   +-- project_beta/
|       +-- data/
|       +-- code/
|       +-- results/
+-- archive/                  (compressed completed projects)

/bigdata/lab/<labname>/
+-- group_projects/            (collaborative work)
+-- lab_resources/             (shared reference data)

Organizational Principles

Separate data types: Keep raw data separate from processed data and results. This enables clean, reproducible pipelines.

Use meaningful names: dataset_v1.csv is better than data.csv. Include version numbers or dates: results_2024_03_05.txt.

Include metadata: Add a README.md in each project explaining the structure, data sources, and how to reproduce the analysis.

Archive completed projects: Compress inactive projects with tar czf project_2023.tar.gz project_2023/ and move to /bigdata/lab/<labname>/archive/.

File Permissions for Collaboration

When sharing files through /bigdata/lab/<labname>, set appropriate permissions:

BASH

# Make files readable by lab members
chmod 644 /bigdata/lab/<labname>/shared_file.txt

# Make directories traversable
chmod 755 /bigdata/lab/<labname>/shared_dir/

# Set default permissions for future files
umask 0022  # Add to ~/.bashrc

Sharing Data

With Lab Members (Internal)

BASH

mkdir -p /bigdata/lab/<labname>/shared_results
cp analysis_output.csv /bigdata/lab/<labname>/shared_results/
chmod 644 /bigdata/lab/<labname>/shared_results/analysis_output.csv

Notify collaborators: “Results available in /bigdata/lab/<labname>/shared_results/”

With External Collaborators

Compress and upload to a cloud service or institutional repository:

BASH

tar czf results_for_collaborators.tar.gz results/

Publishing to a Repository

For public data release, prepare a clean package with data, metadata, a README, and a license file. Upload to your institutional repository or services like Zenodo.

Avoiding Duplicate Data

Duplicate files waste quota. Use symbolic links instead of copies for shared reference data:

BASH

ln -s /bigdata/lab/<labname>/reference_data ~/reference

Find potential duplicates:

BASH

find /rhome/<myusername> -name "*.bak" -o -name "*_old" -o -name "*~"
Challenge

Challenge: Design Your Data Organization

For a research project you are planning or working on:

  1. Sketch a directory structure with folders for raw data, processed data, code, and results
  2. Write a 3-line README.md explaining the project purpose and where to find key files
  3. Identify one file or directory that could be moved to /bigdata for lab sharing

Example structure:

project_ml_classifier/
+-- data/raw/training_set_v1.csv
+-- data/processed/training_clean_v1.csv
+-- code/preprocessing.py
+-- code/training.py
+-- results/metrics.json
+-- results/figures/
+-- README.md

Good practices demonstrated: separation of raw and processed data, meaningful filenames with versions, code separate from data, README for documentation.

Key Points
  • Organize projects with separate directories for raw data, processed data, code, and results
  • Use meaningful filenames with version numbers or dates
  • Document projects with README files explaining structure and purpose
  • Use /bigdata/lab/<labname> for collaborative data with appropriate permissions
  • Use symbolic links instead of copies for shared reference data

Content from Backup and Archival Strategies

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I back up my data on Sagehen HPC?
  • When and how should I archive completed projects?
  • How do I migrate data between storage locations?

Objectives

After completing this episode, participants will be able to: - Implement a backup strategy using rsync - Archive completed projects to free quota space - Migrate data safely between storage locations - Plan data retention across the research lifecycle

Backup vs. Archive

Backup: Copies for disaster recovery. Sagehen has weekly snapshots – contact for recovery. You should also maintain local backups.

Archive: Long-term storage of completed work. Compressed and moved to free active storage space.

Weekly Rsync Backup

Back up your Sagehen data to your local machine:

BASH

#!/bin/bash
# sagehen_backup.sh

BACKUP_DIR=$HOME/backups/sagehen_$(date +%Y%m%d)
mkdir -p $BACKUP_DIR

rsync -avhPr \
  --exclude='*.pyc' --exclude='__pycache__' --exclude='.git' \
  <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/ \
  $BACKUP_DIR/

echo "Backup complete: $(du -sh $BACKUP_DIR)"

Automate with cron (every Sunday at 2 AM):

BASH

crontab -e
# Add: 0 2 * * 0 ~/sagehen_backup.sh >> ~/backup.log 2>&1

Git for Code Backup

Use git for version-controlled code backup:

BASH

cd /rhome/<myusername>/myproject
git init
git add code/
git commit -m "Initial project"
git remote add origin https://github.com/username/myproject.git
git push -u origin main

Archiving Completed Projects

When a project is finished, compress and move it:

BASH

# Compress the project
cd /rhome/<myusername>/projects
tar czf project_alpha.tar.gz project_alpha/

# Move to lab archive
mv project_alpha.tar.gz /bigdata/lab/<labname>/archive/project_alpha_20260305.tar.gz

# Verify archive exists, then remove original
ls -lh /bigdata/lab/<labname>/archive/project_alpha_20260305.tar.gz
rm -rf /rhome/<myusername>/projects/project_alpha/

# Check quota improvement
quota_check.sh

To restore an archived project:

BASH

cd /rhome/<myusername>/projects
tar xzf /bigdata/lab/<labname>/archive/project_alpha_20260305.tar.gz

Safe Data Migration

When moving data between storage locations:

BASH

# Step 1: Dry run
rsync -avhPr --dry-run /rhome/<myusername>/old_project/ /bigdata/lab/<labname>/old_project/

# Step 2: Transfer
rsync -avhPr /rhome/<myusername>/old_project/ /bigdata/lab/<labname>/old_project/

# Step 3: Verify sizes match
du --apparent-size -sh /rhome/<myusername>/old_project/
du --apparent-size -sh /bigdata/lab/<labname>/old_project/

# Step 4: Verify file count
find /rhome/<myusername>/old_project/ -type f | wc -l
find /bigdata/lab/<labname>/old_project/ -type f | wc -l

# Step 5: Delete source only after verification
rm -rf /rhome/<myusername>/old_project/

Data Lifecycle Planning

Research data moves through stages:

Active Development  -->  Active Research  -->  Archive  -->  Preservation
    /rhome                /scratch for         /bigdata       External
    /bigdata              computation          compressed     repository
    (months)              (6-24 months)        (1-2 years)    (indefinite)

Plan retention for each project: what to keep, where to store it, and when to archive or publish.

Challenge

Challenge: Create a Migration Plan

You need to move a 50 GB project from /rhome/<myusername>/old_project/ to /bigdata/lab/<labname>/archive/. Write the commands you would use, including:

  1. Verify source size
  2. Dry-run the transfer
  3. Execute the transfer
  4. Verify destination matches source
  5. Safely remove the source

BASH

# 1. Verify source size
du --apparent-size -sh /rhome/<myusername>/old_project/

# 2. Dry run
rsync -avhPr --dry-run /rhome/<myusername>/old_project/ /bigdata/lab/<labname>/archive/old_project/

# 3. Transfer
rsync -avhPr /rhome/<myusername>/old_project/ /bigdata/lab/<labname>/archive/old_project/

# 4. Verify (compare size and file count)
du --apparent-size -sh /rhome/<myusername>/old_project/
du --apparent-size -sh /bigdata/lab/<labname>/archive/old_project/
find /rhome/<myusername>/old_project/ -type f | wc -l
find /bigdata/lab/<labname>/archive/old_project/ -type f | wc -l

# 5. Remove source (only after verification passes)
rm -rf /rhome/<myusername>/old_project/
quota_check.sh  # Confirm quota freed

Always verify before deleting. If sizes or file counts do not match, investigate before removing the source.

Key Points
  • Maintain local backups of Sagehen data using rsync scripts
  • Use git for version-controlled backup of code
  • Archive completed projects by compressing and moving to /bigdata
  • Always verify size and file count before deleting the source after migration
  • Plan data retention across the active, archive, and preservation stages

Content from Choosing a Transfer Method

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • How do I choose the right transfer method for different scenarios?
  • What are the tradeoffs between OnDemand, FileZilla, and rsync?

Objectives

After completing this episode, participants will be able to: - Select the appropriate transfer method based on file size and frequency - Apply the decision matrix to real research scenarios - Combine methods effectively in a workflow

Decision Matrix

File Size:
  Small (< 50 MB)        --> OnDemand
  Medium (50 MB - 1 GB)  --> FileZilla or rsync
  Large (> 1 GB)         --> rsync

Frequency:
  One-time               --> simplest method
  Occasional (weekly)    --> rsync or FileZilla
  Frequent / automated   --> rsync scripts

Interface:
  Graphical preferred    --> OnDemand or FileZilla
  Command-line preferred --> rsync

Method Comparison

Method Speed GUI Resume Batch Best For
OnDemand Slow Yes No No Small files, browsing
FileZilla Medium Yes Yes No Interactive transfers
rsync Fast No Yes Yes Large files, automation

Scenario Examples

Upload 500 MB dataset at project start:

BASH

rsync -avhP ~/data.tar.gz <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/projects/

Method: rsync. Time: ~1 minute.

Interactive file management during development: Use FileZilla for visual feedback and easy drag-and-drop of multiple small files.

Download 2 GB results file:

BASH

rsync -avhP <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/results/output.h5 ~/Downloads/

Method: rsync. Time: 2-3 minutes.

Sync code between laptop and Sagehen HPC daily:

BASH

# Push changes
rsync -avhPr --exclude='.git' ~/myproject/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/
# Pull changes
rsync -avhPr <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/myproject/ ~/myproject/

Weekly backup of entire project:

BASH

rsync -avhPr --exclude='.git' \
  <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/projects/myproject/ \
  ~/backups/myproject_$(date +%Y%m%d)/
Callout

Compress Before Transferring

Regardless of method, compressing data before transfer saves time:

BASH

tar czf myproject.tar.gz myproject/

Text and CSV data compress 5-20x. Already-compressed formats (images, video, archives) do not benefit.

Combining Methods in a Workflow

A typical research workflow might use all three methods:

  1. OnDemand: Browse files, check results, quick edits
  2. FileZilla: Interactive upload of new datasets during development
  3. rsync: Large data transfers, automated backups, job script staging

Choose based on what you are doing at each stage, not one method for everything.

Challenge

Challenge: Method Selection

For each scenario, choose the best transfer method and explain why:

  1. Upload a 10 MB configuration file to Sagehen
  2. Transfer a 50 GB genomics dataset to Sagehen
  3. Download 200 analysis result files (1-5 MB each) to your laptop
  4. Set up a weekly automated backup of your home directory
  1. OnDemand – Small file, one-time, easiest method
  2. rsync – Very large file, needs resume capability: rsync -avhP dataset.tar.gz user@sagehen:/rhome/<myusername>/
  3. rsync – Many files, batch operation: rsync -avhPr user@sagehen:/rhome/<myusername>/results/ ~/results/
  4. rsync script via cron – Automated, recurring, needs to handle many files efficiently
Key Points
  • Choose transfer method based on file size, frequency, and interface preference
  • OnDemand for small files, FileZilla for interactive work, rsync for everything else
  • rsync is the only method suitable for automation and very large files
  • Compressing data before transfer saves time regardless of method

Content from Troubleshooting and Review

Last updated on 2026-08-27 | Edit this page

Overview

Questions

  • What are the most common data transfer and storage problems?
  • How do I diagnose and fix connection issues?
  • What checklist should I follow for data management?

Objectives

After completing this episode, participants will be able to: - Diagnose common transfer and storage errors - Apply systematic troubleshooting steps - Use the data management checklist for ongoing work

Common Transfer Issues

Upload Fails or Hangs (OnDemand)

  1. Check file size – must be under ~2 GB
  2. Try a smaller file to test connectivity
  3. Refresh browser and retry
  4. Switch to rsync for large files

Connection Refused (FileZilla)

  1. Verify hostname: sagehen.hpc.pomona.edu
  2. Verify port: 22
  3. Check internet connection
  4. Test with: ping sagehen.hpc.pomona.edu

Authentication Failed

  1. Verify Pomona credentials (not a separate Sagehen HPC password)
  2. Check caps lock
  3. Look for Duo notification on your phone
  4. Try SSH first to isolate the issue: ssh <myusername>@sagehen.hpc.pomona.edu

rsync Transfer Stalls

  1. Check network connection
  2. If interrupted, re-run the same rsync -avhP command to resume
  3. Try at a different time (off-peak may be faster)
  4. For very slow connections, add -z for compression

Common Storage Issues

Disk Quota Exceeded

Run quota_check.sh to see combined lab usage. Even if your home looks fine, another lab member may have filled the shared 1TB quota. Clean up with:

BASH

# Find large files
du --apparent-size -h /rhome/<myusername> | sort -h | tail -10

# Check hidden directories
du --apparent-size -h /rhome/<myusername>/.cache
du --apparent-size -h /rhome/<myusername>/.local

# Archive old projects
tar czf /bigdata/lab/<labname>/archive/old_project.tar.gz /rhome/<myusername>/old_project/
rm -rf /rhome/<myusername>/old_project/

Results Lost from Temporary Storage

If results were in /scratch or /tmpfs and the job has completed, the data is gone. Prevention: always include a copy-back step in your job scripts before the job ends.

du Shows Different Size Than quota_check.sh

Use du --apparent-size on BeeGFS. Without this flag, du reports block usage which differs from actual file size.

File Permission Denied on Shared Data

Set correct permissions for lab-shared files:

BASH

chmod 644 /bigdata/lab/<labname>/shared_file.txt
chmod 755 /bigdata/lab/<labname>/shared_dir/

Data Management Checklist

Callout

Ongoing Data Management

Monthly - Run quota_check.sh and review usage - Delete or archive old files

Before large jobs - Verify available quota - Plan scratch/tmpfs usage in job script - Include copy-back step for results

After projects - Archive completed projects to /bigdata - Back up results locally or to git/cloud - Remove intermediate files

For transfers - Use rsync with -P for large files - Verify file sizes after transfer - Compress data before transferring when possible

Quick Reference

BASH

# Check quota
quota_check.sh

# Accurate directory size on BeeGFS
du --apparent-size -sh /rhome/<myusername>

# Upload with rsync
rsync -avhP file.dat <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/

# Download with rsync
rsync -avhP <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/file.dat ~/

# Sync directory
rsync -avhPr ~/mydir/ <myusername>@sagehen.hpc.pomona.edu:/rhome/<myusername>/mydir/

# Archive project
tar czf project.tar.gz project/

# Contact for help
# its-hpc@pomona.edu
Challenge

Challenge: Troubleshooting Scenarios

For each scenario, identify the problem and the solution:

  1. You run cp output.dat /rhome/<myusername>/ and get “Disk quota exceeded”, but du -sh /rhome/<myusername> shows only 200 GB used
  2. Your job script writes results to /tmpfs but when you check after the job, the files are gone
  3. You uploaded a 500 MB file via OnDemand but it does not appear in the file listing

  1. Problem: Using du without --apparent-size gives inaccurate sizes on BeeGFS, or the combined lab quota (including other members and /bigdata) is full. Solution: Run quota_check.sh for the true combined usage. Coordinate with lab members to free space.

  2. Problem: /tmpfs is deleted when the job completes. Solution: Add rsync -avhP $TMPFS/output.dat /rhome/<myusername>/results/ before the job ends. Always copy results from temporary storage to permanent storage.

  3. Problem: Browser cache showing stale listing, or upload failed silently. Solution: Press F5 to refresh. If still missing, check the upload log, verify quota is not exceeded, and try uploading again. For files over 500 MB, use rsync instead.

Key Points
  • Most transfer issues stem from network problems, authentication, or file size limits
  • Most storage issues stem from quota exhaustion or incorrect du usage on BeeGFS
  • Always use quota_check.sh for accurate quota information
  • Temporary storage is deleted when jobs complete – always copy results back
  • Contact for issues you cannot resolve
